Function Details SiE25-110
84 Function and Operation

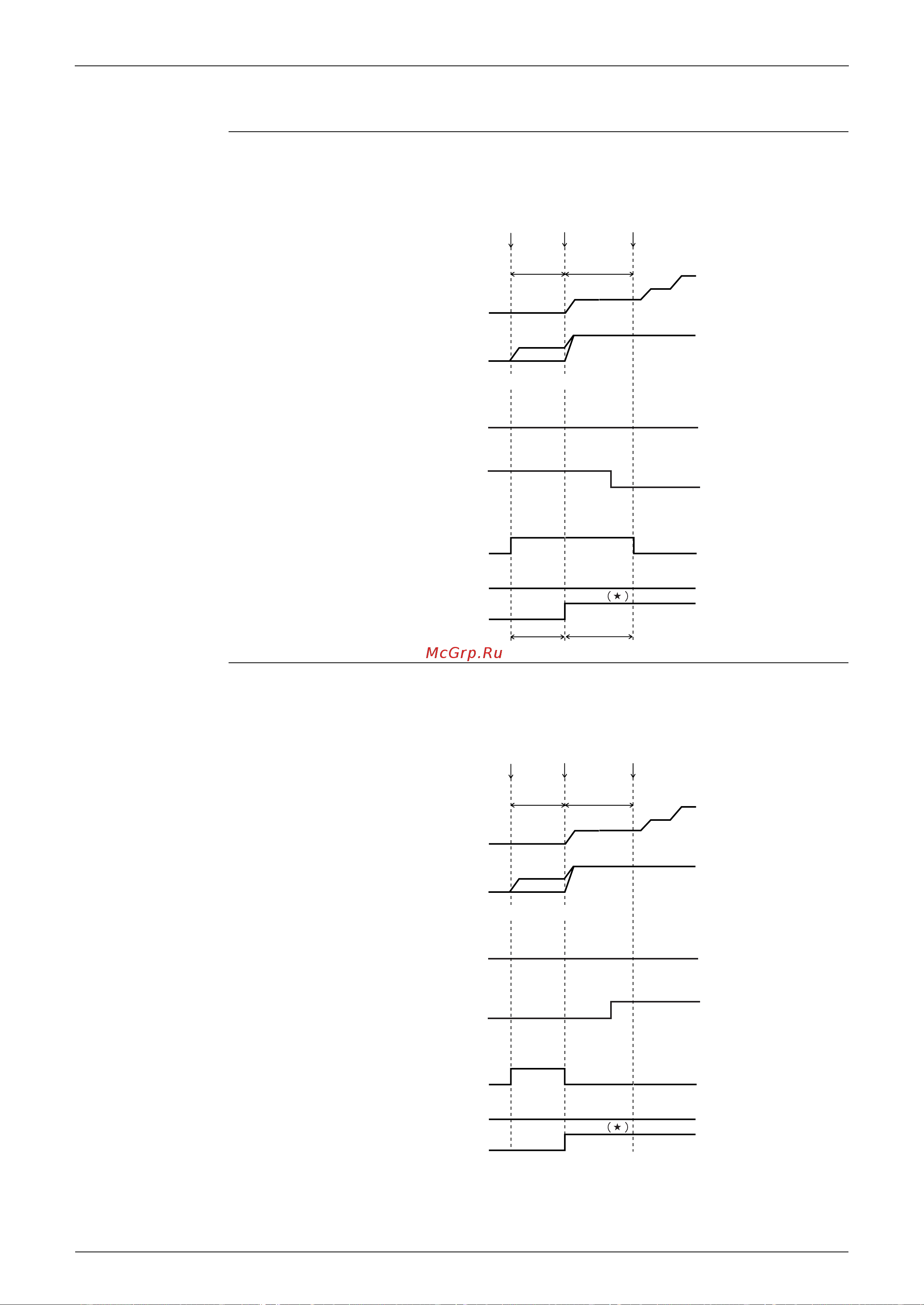

4.2.8 Starting control
Starting control
(Cooling)
When compressor start up, the starting frequency is fixed for specified period of time at low
frequency to prevent returning of refrigerant.
Starting control
(Heating)
When compressor start up, the starting frequency is fixed for specified period of time at low
frequency to prevent returning of refrigerant.
When heating operation start, outdoor unit fan is stopped until the condition of Low
pressure<0.3 MPa is met in order to prevent returning of liquid refrigerant.
Compressor
Motorized valve
4 way valve
Previously OFF
Previously ON
Solenoid valve (SVG)
Solenoid valve (SVC)
Outdoor unit fan
Pressure
equalizing
start
Pressure
equalizing
complete
Starting
control
complete
Starting control
100 pls
(RZP71D)
0 pls
(RZP100~140D)
ON (cooling)
Pressure equalizing
control before
compressor start
(S2545)
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
«
Max 10 min.
1 min.
Compressor
Motorized valve
4 way valve
Previously ON
Previously OFF
Solenoid valve (SVG)
Solenoid valve (SVC)
Outdoor unit fan
Pressure
equalizing
start
Pressure
equalizing
complete
Starting
control
complete
Starting control
100 pls
(RZP71D)
0 pls
(RZP100~140D)
OFF (heating)
Pressure equalizing
control before
compressor start
(S2545)
ON
OFF
ON
ON
OFF
OFF
OFF
ON
«
