Daikin RZP100DVAL [207/255] Removal of decoration panel
![Daikin RZP71DVAL [207/255] Removal of decoration panel](/views2/1782863/page207/bgcf.png)
FHYCP71~140D SiE25-110
198 Removal Procedure
1.3 Removal of Decoration Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

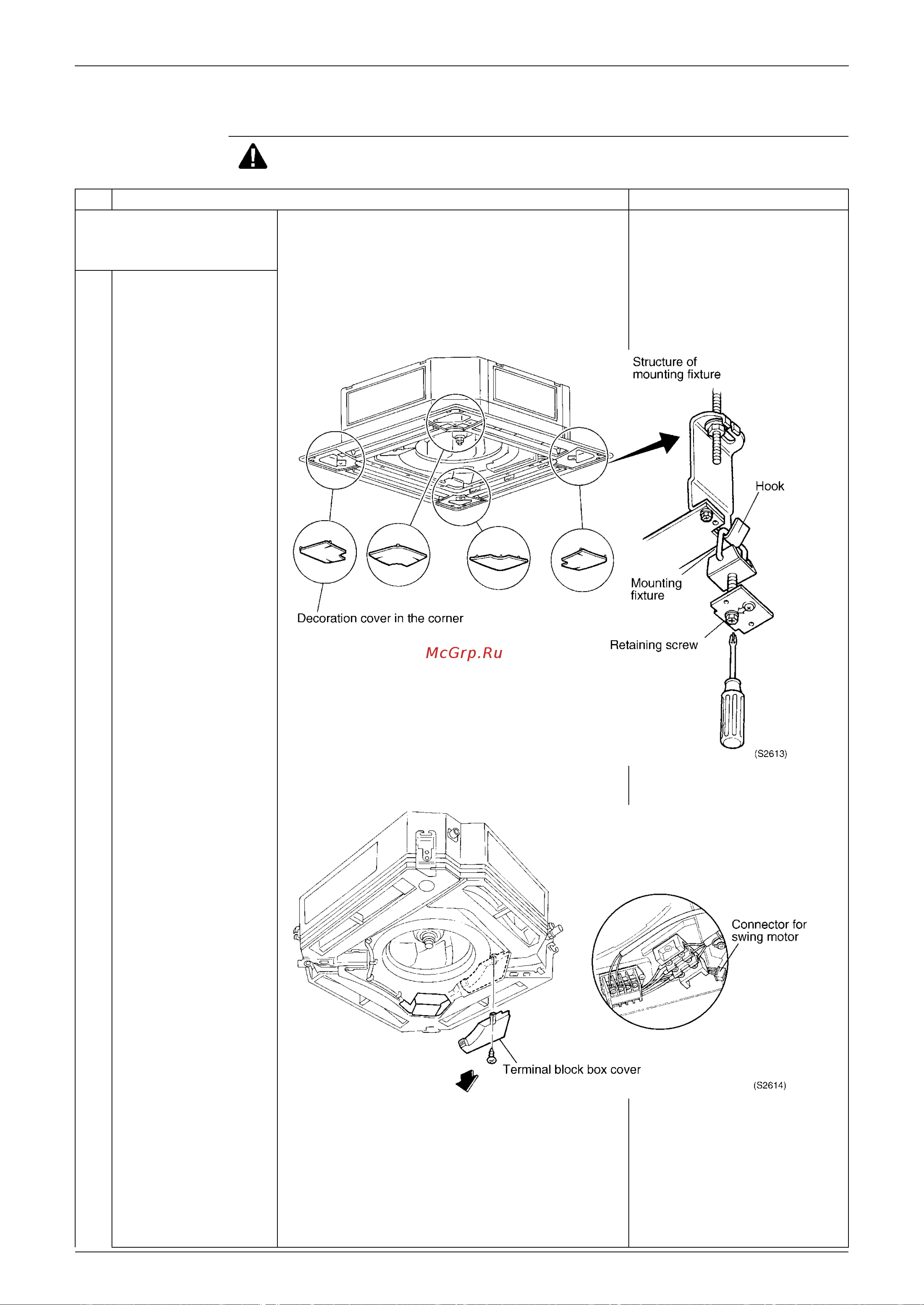

1. Removing the decoration
covers in the corner of
decoration panel
Remove a string (provided to
prevent the decoration cover
from dropping) from the
decoration cover in the
corner from the pin to
dismount the decoration
cover.
1
To remove the
decoration covers in the
corner, pull the inside
(suction grille side)
down.
2
Remove the one screw
to dismount the terminal
block box cover, then
disconnect the
connector for swing
motor.
For the auto grille,
disconnect the auto
grille power supply
cable from the power
supply terminal block.
3
Loosen the 4 retaining
screws from the
decoration panel.
4
The decoration panel is
caught on the 4 hooks
of the main unit.
