Daikin RZP100DVAL [189/255] Troubleshooting
![Daikin RZP140DTAL [189/255] Troubleshooting](/views2/1782863/page189/bgbd.png)

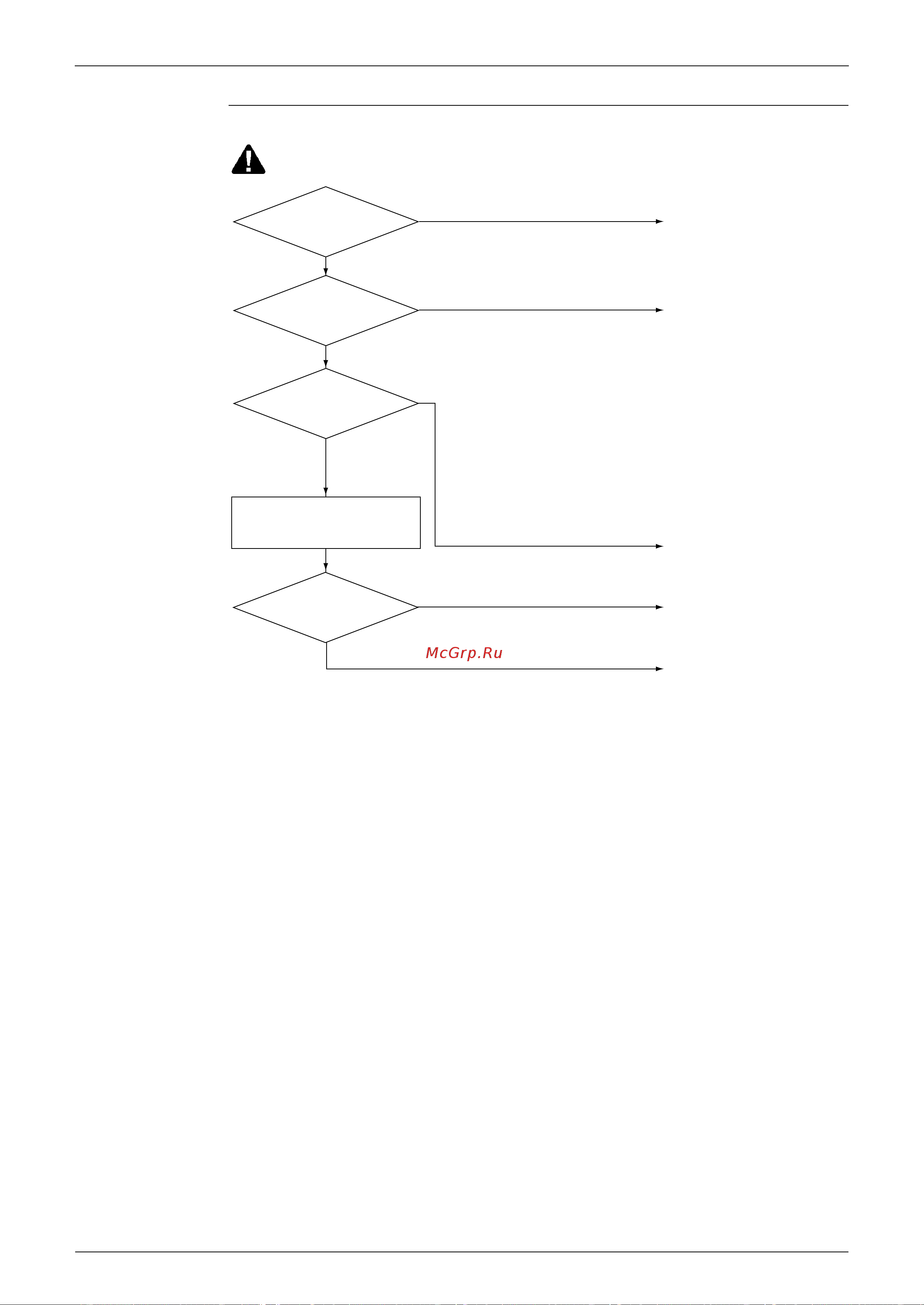

Troubleshooting by Remote Controller Display / LED Display SiE25-110
180 Troubleshooting
Troubleshooting
Other factors
Field factors
Check LED
on outdoor unit PC board.
(Is the voltage
insufficient?)
Is the power
supply voltage between
220~240 VAC
±10%?
NO
NO
YES
YES
Correct the wiring.
Replace the inverter PC board.
Monitor the voltage
(Instantaneous voltage drop)
YES
NO
NO
When the compressor is running,
measure the voltage between
+ and - of electrolytic capacitor
(C+, C-).
Is the wiring correct?
Is the measured voltage
220 VDC or more?
(S2605)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
