SiE25-110 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 159
Troubleshooting

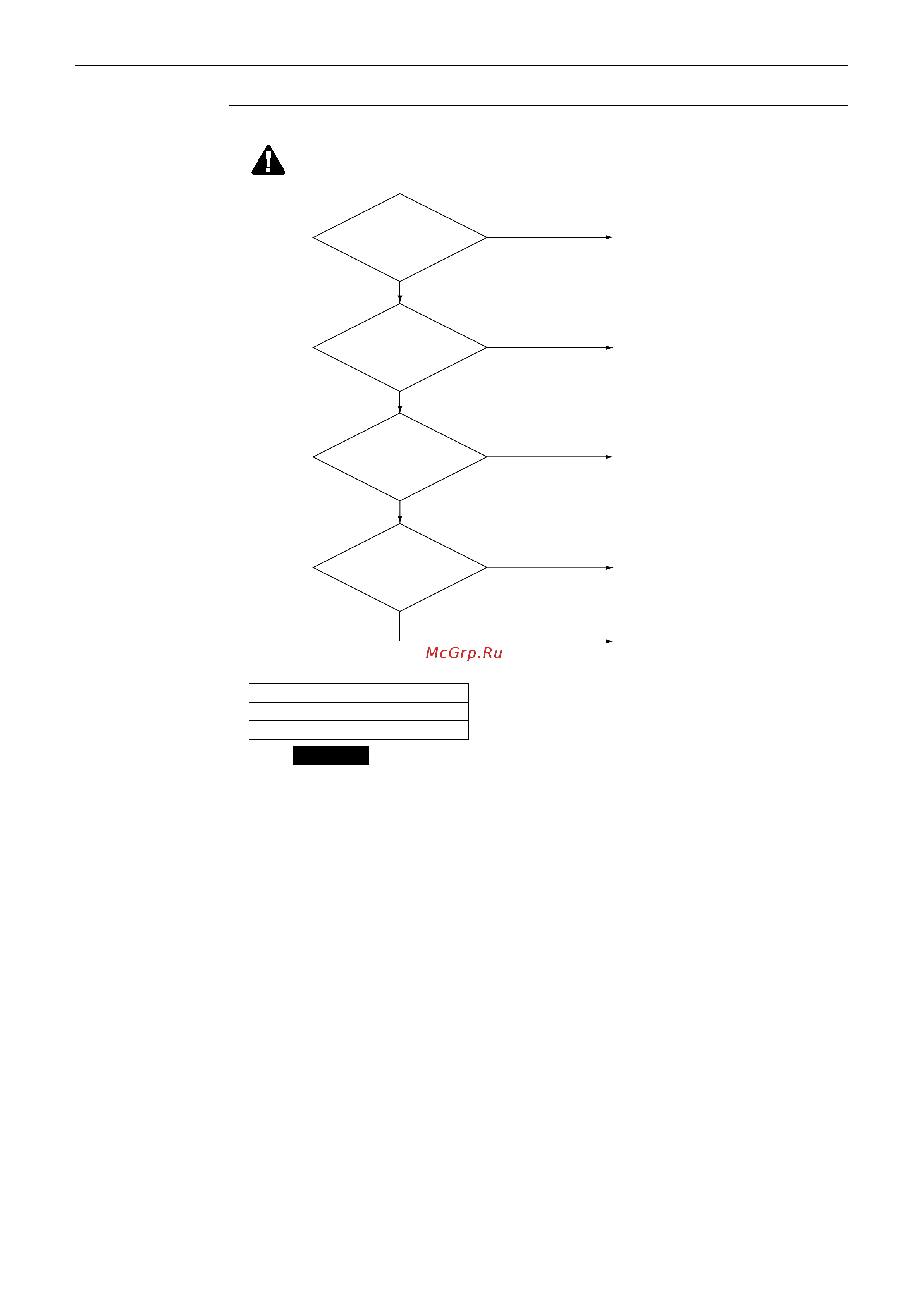

Replace the discharge pipe thermistor.
Is
the discharge pipe
thermistor characteristic
normal?
(*2.)
NO
YES
Connect correctly, and operate
the unit again.
Is the
discharge pipe
thermistor correctly
connected?
NO
YES
Abnormality in refrigerant system
such as gas shortage, faulty
compressor, etc. Conduct inspection.
Is the
discharge pipe
temperature high?
(See *1.)
YES
NO
Replace the outdoor unit PC board.
Attach the thermistor, and operate
the unit again.
Is the
discharge pipe
thermistor attached
to the discharge
pipe?
NO
YES
*1 Temperature varies depending on model type.
*2 See Check No. 12 for “Thermistor temperature/Resistance characteristics”.
Model name
RZP71D
RZP100 ~ 140D
Temperature
110˚C
115˚C
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(S2586)
