Function Details SiE25-110
74 Function and Operation
4. Function Details
4.1 Indoor Unit

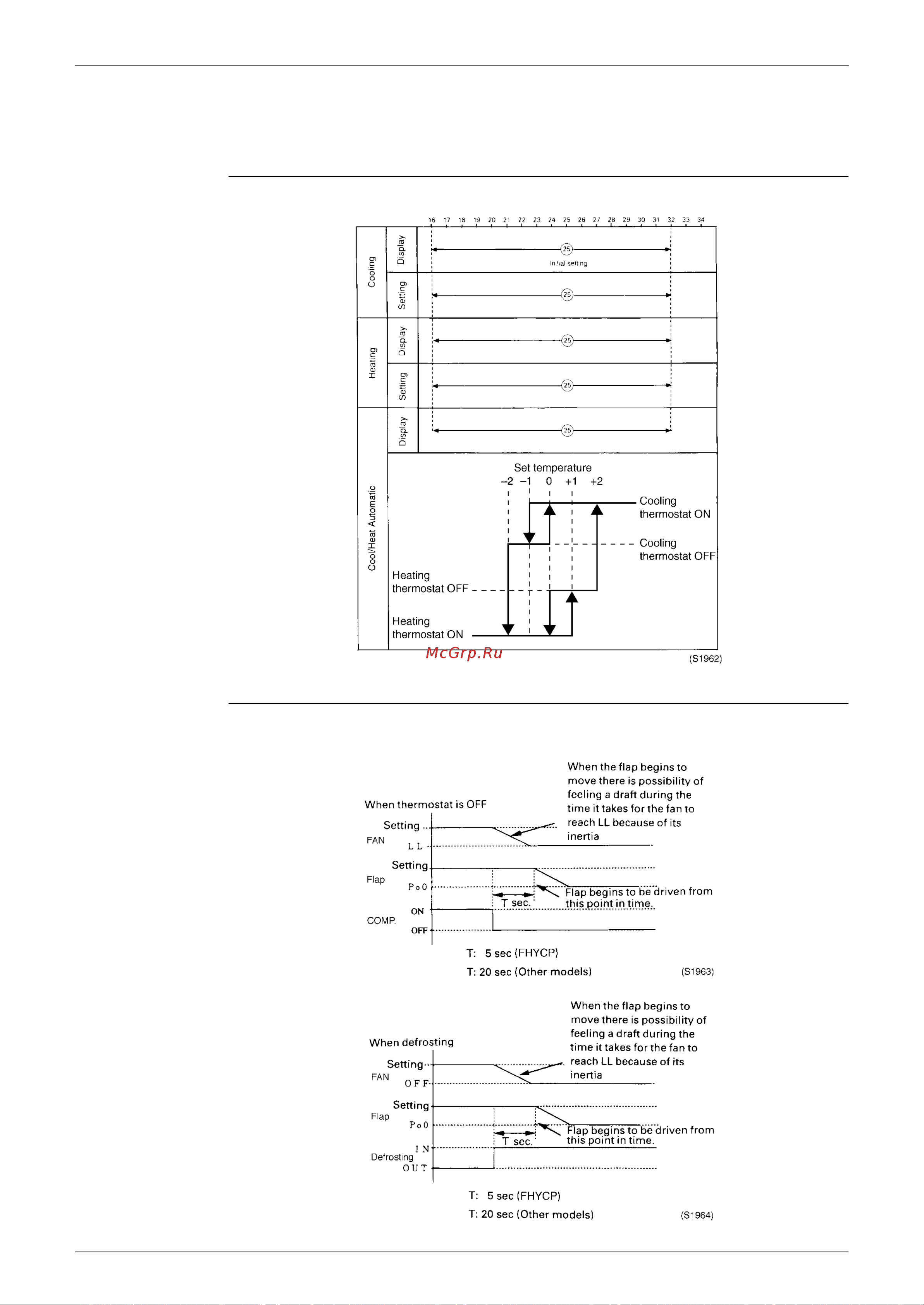

Thermostat
Control
Draft Avoidance
Control 1
Draft is circumvented by delaying transfer of the flap to the Po0 (horizontal) position for a certain
amount of time when defrosting and in the heating mode with the thermostat OFF.
