Function Details SiE25-110
90 Function and Operation

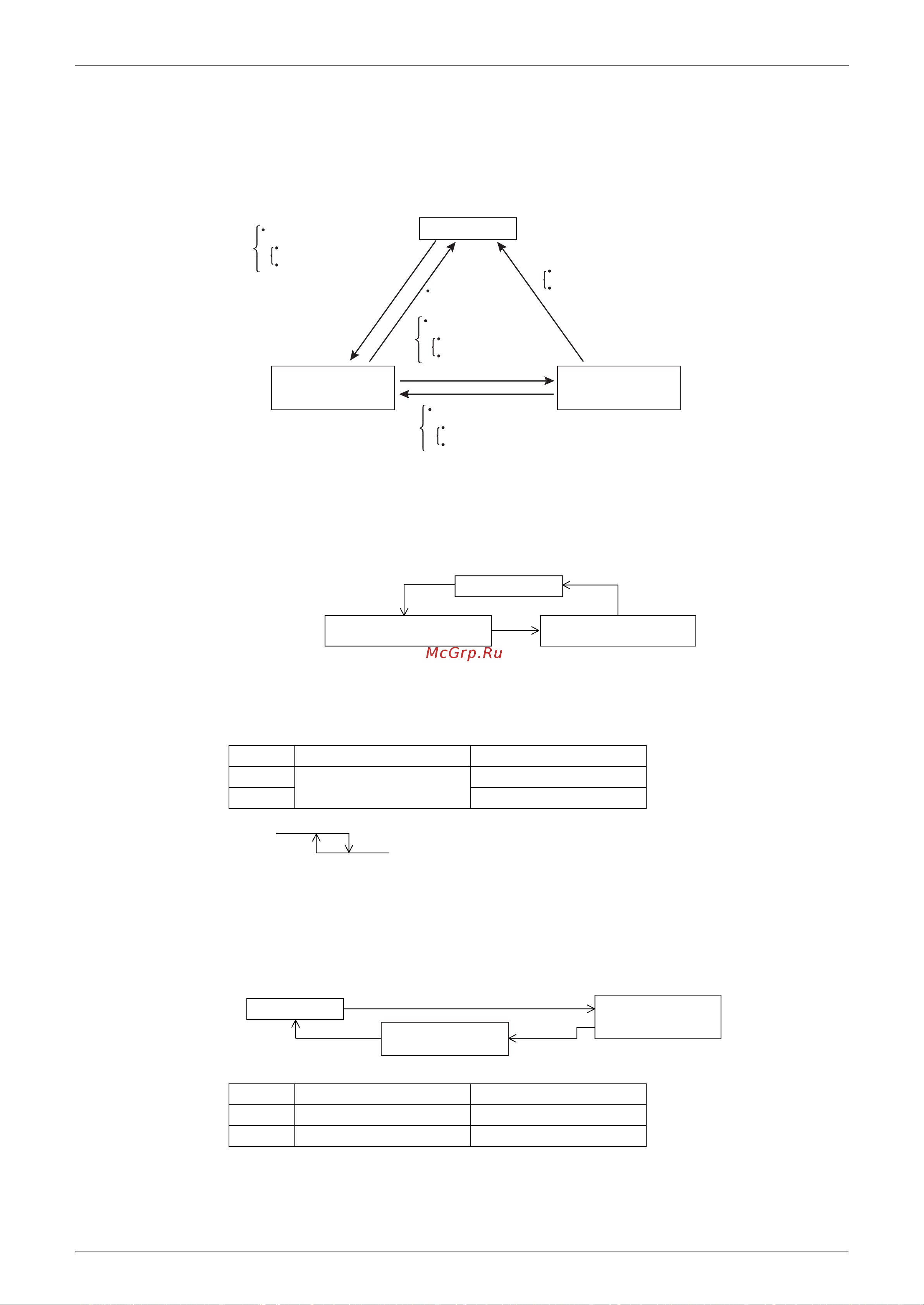

4.2.18 Suction Pipe Superheat Protection Control (Only in heating
operation)
In heating operation, controls compressor operating frequency to prevent oil from remaining in
the outdoor unit heat exchanger by the continuous operation of compressor at high superheated
degree of the suction pipe.
4.2.19 Inverter current protection control
Restricts compressor operation frequency to prevent compressor from tripping due to inverter
overcurrent.
Drooping current
4.2.20 Control by inverter fin temperature
Restricts compressor operation upper limit frequency to prevent compressor from tripping due
to inverter fin temperature.
Normal operation
Suction SH>12deg
Suction SH>10deg
Suction SH<6deg
Suction SH<6deg
Upper limit frequency = Maximum frequency
Suction SH<8deg
Lowering upper limit
frequency for 1-step
every 30 seconds
Raising upper limit
frequency for 1-step
every 30 seconds
Suction SH>12deg
Suction SH>10deg
EV opening degree=480pls
Suction SH<10deg
EV opening degree<450pls
EV opening degree=480pls
or
&
or
or
or
&
&
(S2568)
Model RZP71D Model RZP100~140D
P(A)
14A
24A
Q(A) 25A
Normal operation
Compressor frequency
–1 step/10 sec
Compressor frequency
+1 step/3 min
Inverter current
>Drooping current
Inverter upper limit frequency
= Maximum frequency
The condition of Inverter current<Drooping
current continues for 3 minutes
(S2551)
Outside
temperature
(S2552)
Q(A)
25˚C 28˚C
P(A)
Model RZP71D Model RZP100~140D
A˚C 85˚C 93˚C
B˚C 82˚C 90˚C
(S2553)
Normal operation
Compressor frequency
+1 step/3 min
Inverter upper limit frequency
= Maximum frequency
Compressor frequency
–1 step/10 sec
Fin temperature ≤ B˚C
lasts for 3 minutes
Inverter fin temperature ≥ A˚C
