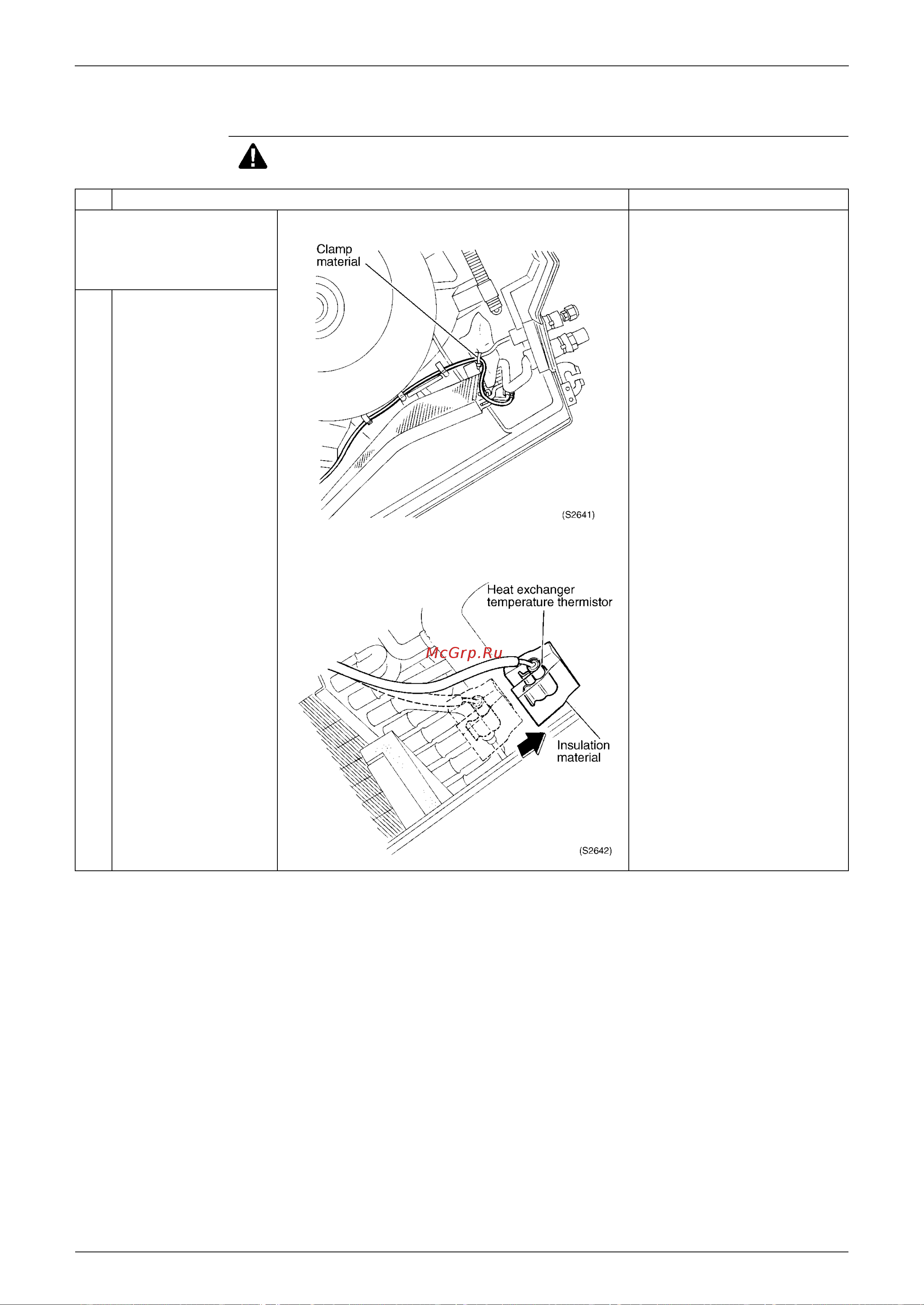

FHYCP71~140D SiE25-110
212 Removal Procedure
1.11 Removal of Heat Exchanger Temperature Thermistor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the drain pan
according to the
procedure for removing
the drain pan.
1
Cut the clamp material.
2
Draw the heat
exchange temperature
thermistor together with
the insulation material
out in the direction
shown by the arrow.
