SiE25-110 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 161

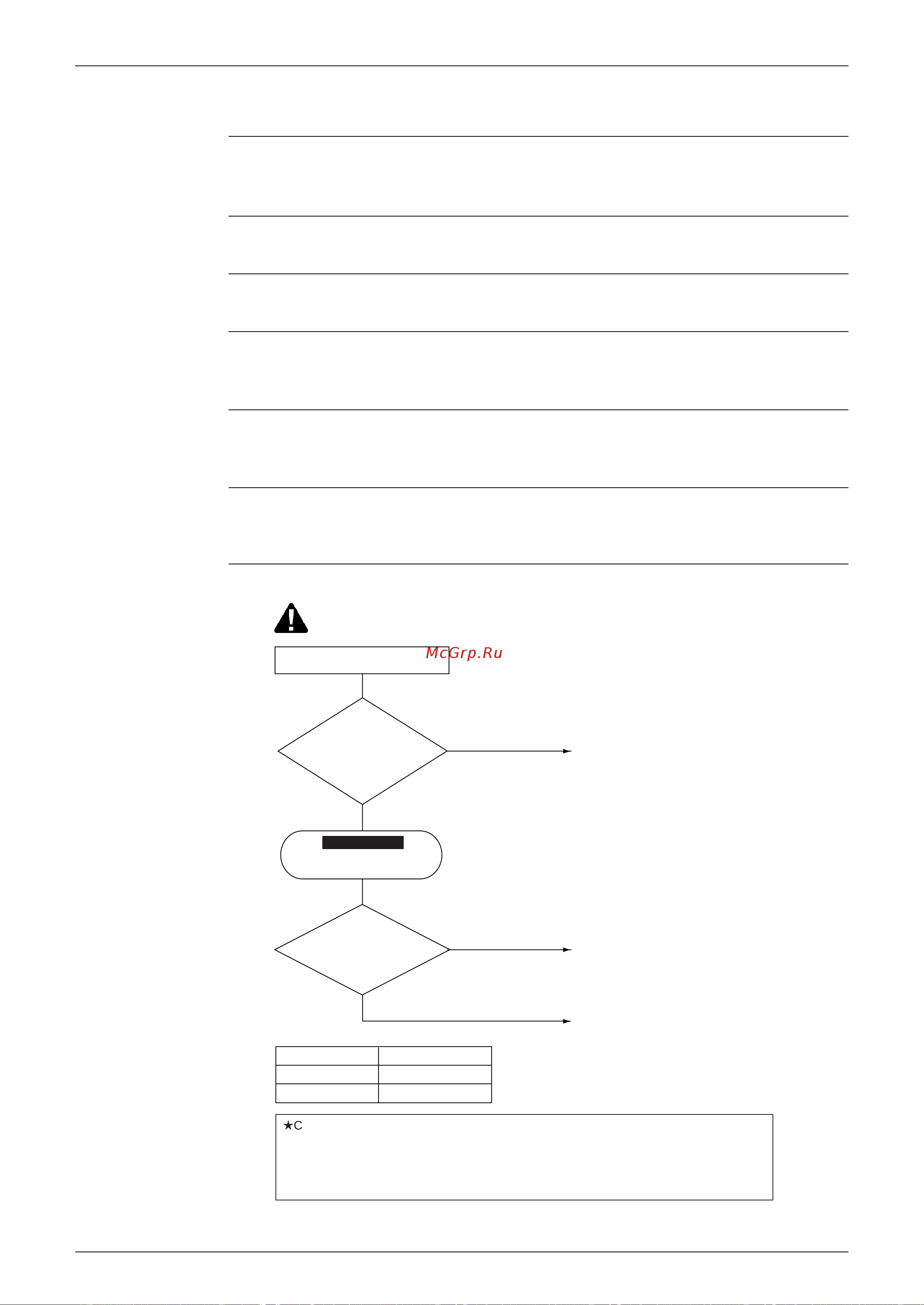

6.23 Malfunction of outdoor fan motor signal
Remote
Controller
Display
H7
Outdoor Unit LED
Display
Applicable
Models
RZP71 ~ 140D
Method of
Malfunction
Detection
Detection of signal malfunction from outdoor fan motor
Malfunction
Decision
Conditions
When malfunction signal is detected at the start of fan motor operation.
Supposed
Causes
Malfunction of fan motor signal (circuit failure)
Disconnection, short of fan motor lead wire and coming off the connector
Faulty PC board
Troubleshooting
Is the connector(*)
of fan motor
connected correctly?
NO
YES
YES
Is the resistance value
normal in above
connector check?
NO
Connect correctly.
Replace the fan motor.
Replace the PC board.
(S2588)
Check No. 9
Check the fan motor
connector
*Connector symbol of fan motor
0
Caution for service
If the outdoor fan rotates due to strong wind, voltage generates in main circuit capacitor.
To prevent electric shock, make sure the low voltage of main circuit (50 VDC or lower)
before carrying out troubleshooting. To prevent PC board from being damaged, touch
the earth connector in an electric parts box immediately before the inserting and
extracting the connector, which discharges the static from human body.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Disconnect the power supply
Model name
RZP71D
RZP100 to 140D
Connector symbol
X206A
X206A, X207A
