SiE25-110 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 157

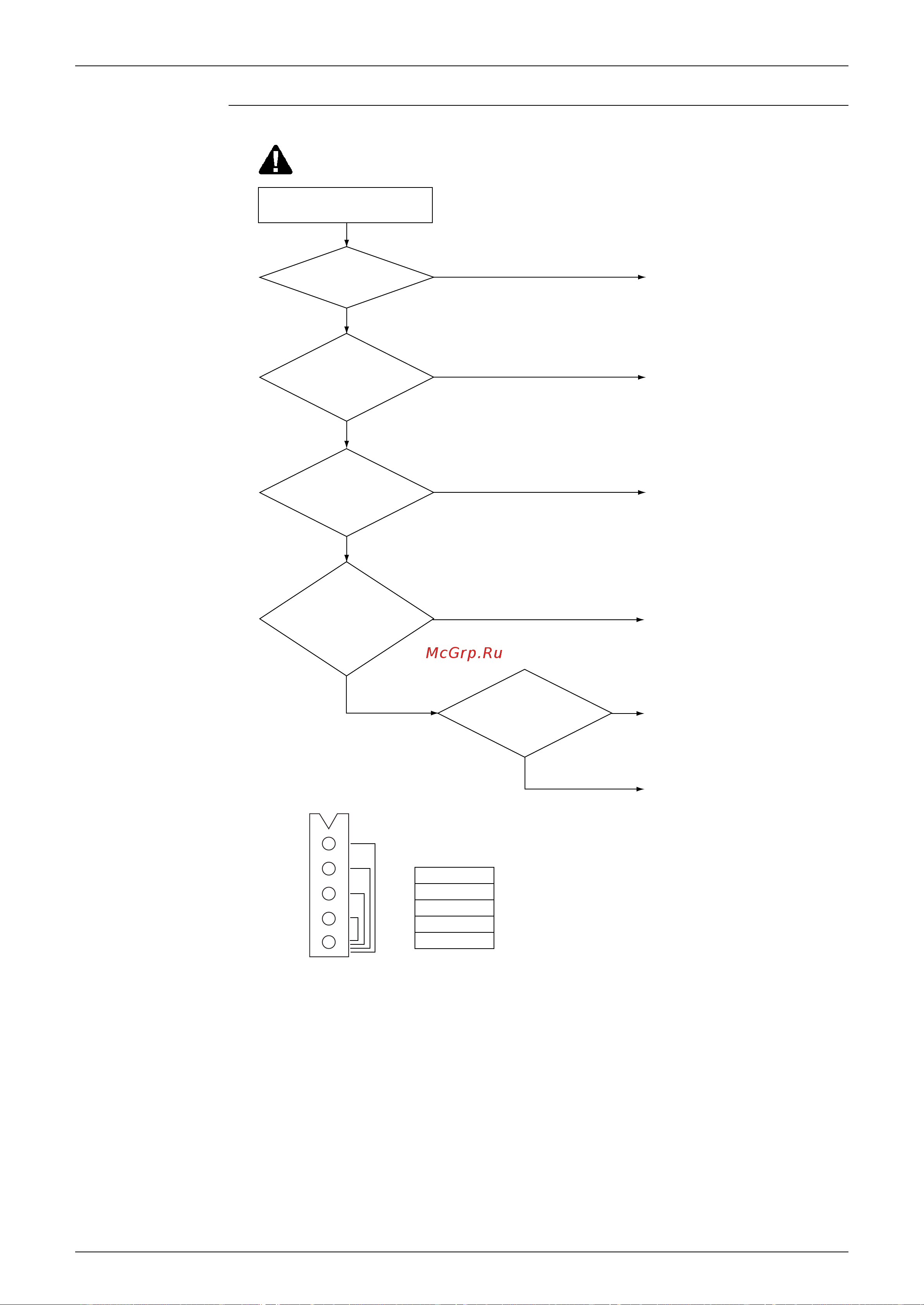

Troubleshooting
Problem could be caused by
external factor (noise, etc.)
other than malfunction.
Normal reset?
Is
coil resistance
of electronic expansion
valve normal?
(40 to 50Ω)
(*)
YES
Replace the electronic expansion
valve coil.
Replace the outdoor unit PC board
(A1P).
NO
Connect correctly.
Is the
electronic expansion
valve coil connected
to outdoor unit
PC board?
NO
NO
Turn the power supply
off once and back on.
NO
YES
YES
Replace the motorized valve coil.
With remote
controller ON, doesn’t
the unit operate and
is “E9” displayed?
NO
Replace the main unit of solenoid
valve (Y2S).
Is there
difference in
temperature before and
after solenoid valve
(Y2S) during
operation?
YES
* Measure the resistance between each pin of
connector and make sure that the resistance
ranges between 40 and 50Ω.
1
2
3
4
5
Measurement point
1—5
2—5
3—5
4—5
(S2585)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
