Daikin RZP100DVAL [157/255] Actuation of protection device
![Daikin RZP100DVAL [157/255] Actuation of protection device](/views2/1782863/page157/bg9d.png)
Troubleshooting by Remote Controller Display / LED Display SiE25-110
148 Troubleshooting
6.14 Actuation of Protection Device
Remote
Controller
Display
E0
Applicable
Models
RZP71~140D
Method of
Malfunction
Detection
The protection device input circuit checks the actuation of each individual protection device.
(Batch detection of all protection devices)
Malfunction
Decision
Conditions
Supposed
Causes
Actuation of outdoor unit protection device
Faulty outdoor unit PC board
Instantaneous power failure

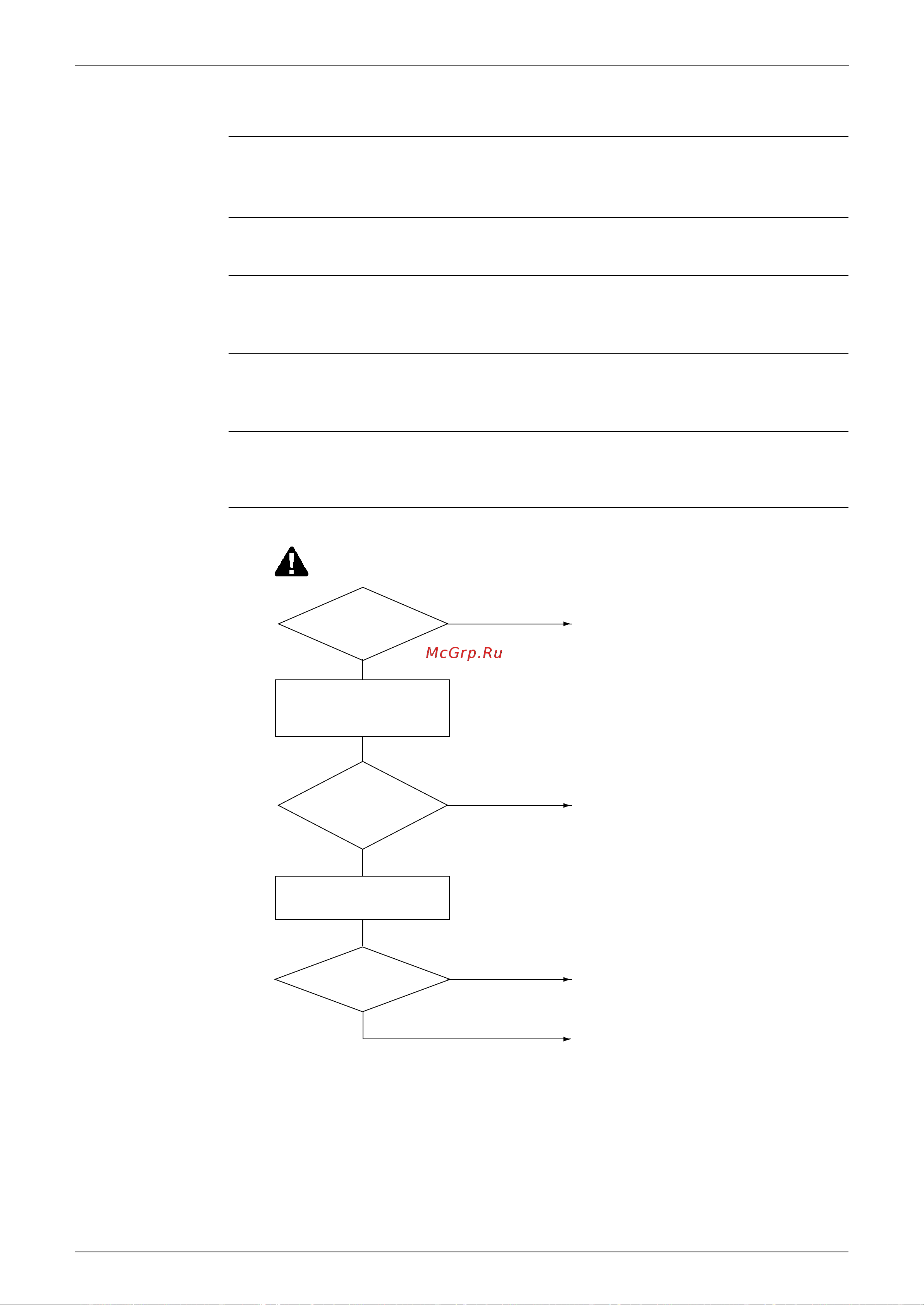

Troubleshooting
NO
YES
Insulation
resistance<5MΩ
YES
NO
NO
Is “L9” displayed?
YES
Connect the connectors or
terminals, and turn on
again.
Replace the compressor.
Replace the compressor.
Replace the outdoor unit
PC board.
(S2580)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Are compressor
lead wires correctly
connected?
Disconnect the compressor
lead wires, then measure
insulation resistance between
compressor terminals and
ground.
With the compressor lead
wires disconnected, turn on
again.
