SiE25-110 FHYCP71~140D
Removal Procedure 201
1.5 Removal of Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

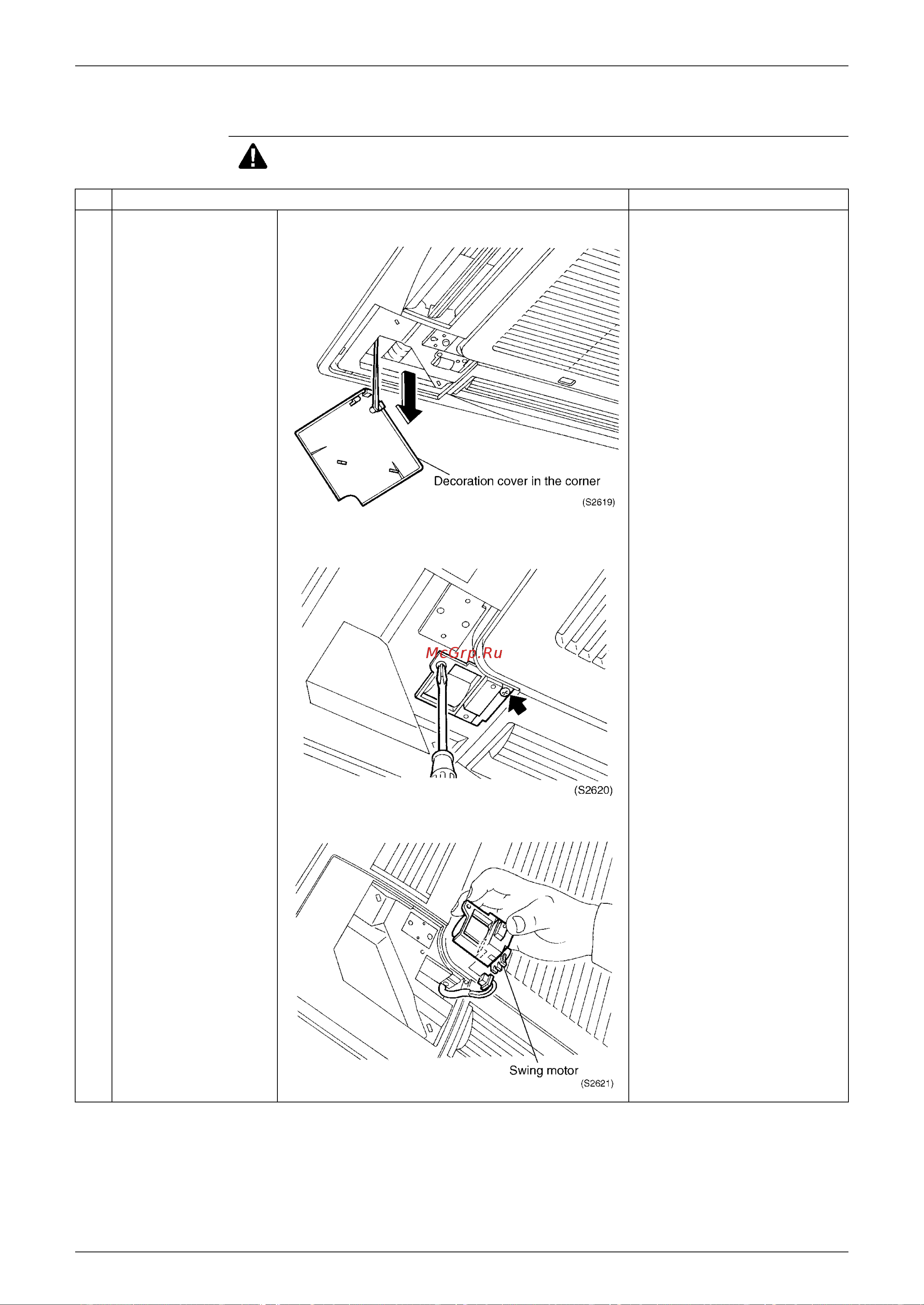

1
Remove the decoration
cover in the corner
located right below the
refrigerant piping.
2
Remove the 2 swing
motor mounting screws.
3
Disconnect the swing
motor connector.
The connector section is
protected with the use of
aluminum tape. Remove the
aluminum tape.
