SiE25-110 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 175
6.32 Malfunction of Radiator Fin Temperature Thermistor
Remote
Controller
Display
P4
Outdoor Unit LED
Display
A 5 1 4 2 3 3 3 4 3
Applicable
Models
RZP71~140D
Method of
Malfunction
Detection
Detection by open or short circuit of the radiator fin temperature thermistor during the
compressor stops operating.
Malfunction
Decision
Conditions
When open or short circuit of the radiator fin temperature thermistor is detected during the
compressor stops operating
Supposed
Causes
Faulty radiator fin temperature thermistor
Faulty outdoor unit PC board

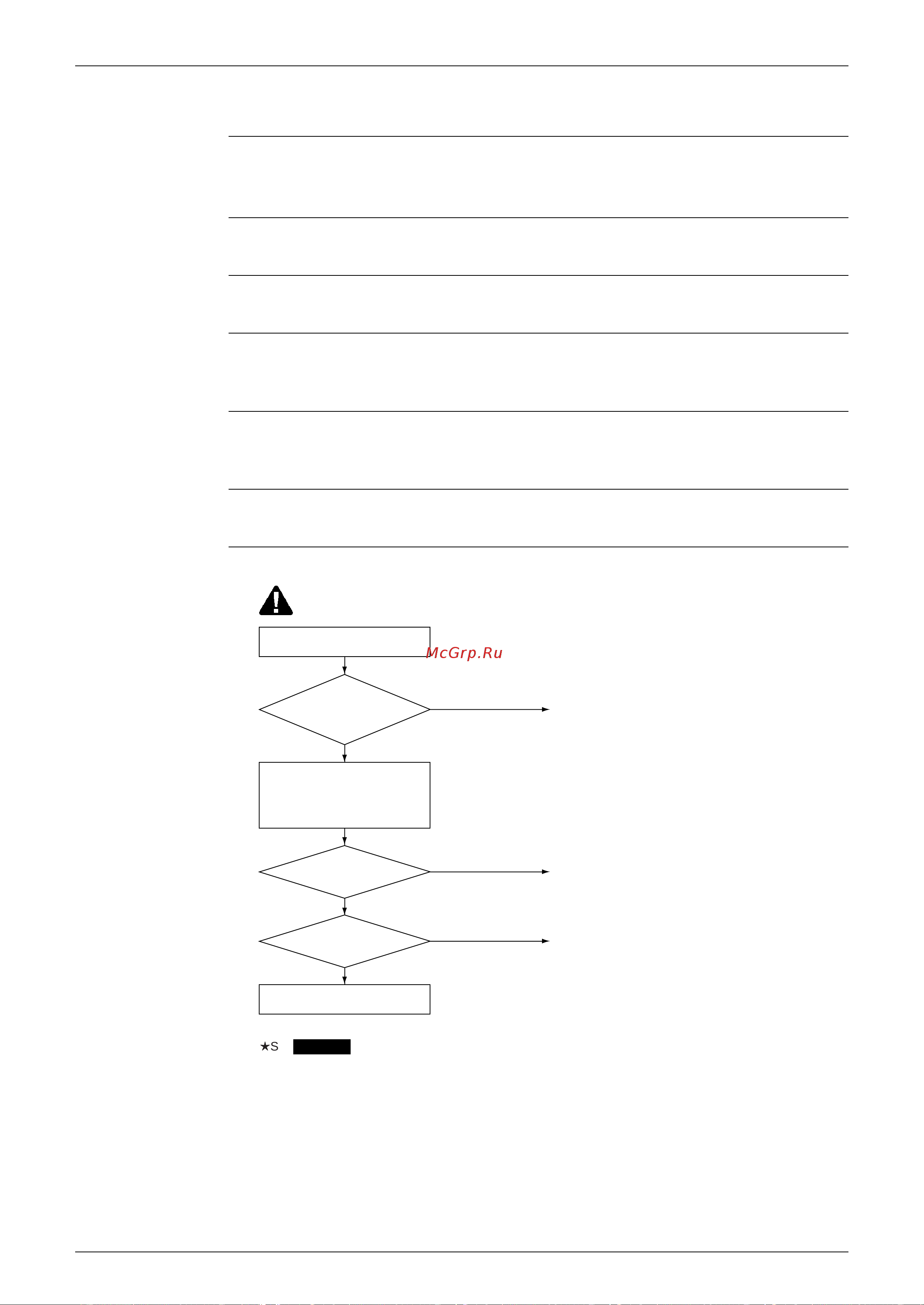

Troubleshooting
Replace the thermistor.
Normal?
(Note)
Check LED on the outdoor
unit PC board.
Reset
YES
Probe other factors than the malfunction.
Does the radiator
fin temperature thermistor
malfunction?
NO
YES
Replace the inverter PC board.
*Continuous operation can be continued.
Is reset possible?
NO
NO
YES
Disconnect the connector
from CN207 on inverter PC
board, then check the
thermistor resistance at the
ordinary temperature.
0
See Check 12 for “Thermistor temperature/Resistance characteristics”.
(S2597)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
