SiE25-110 RZP71~140D
Removal Procedure 215

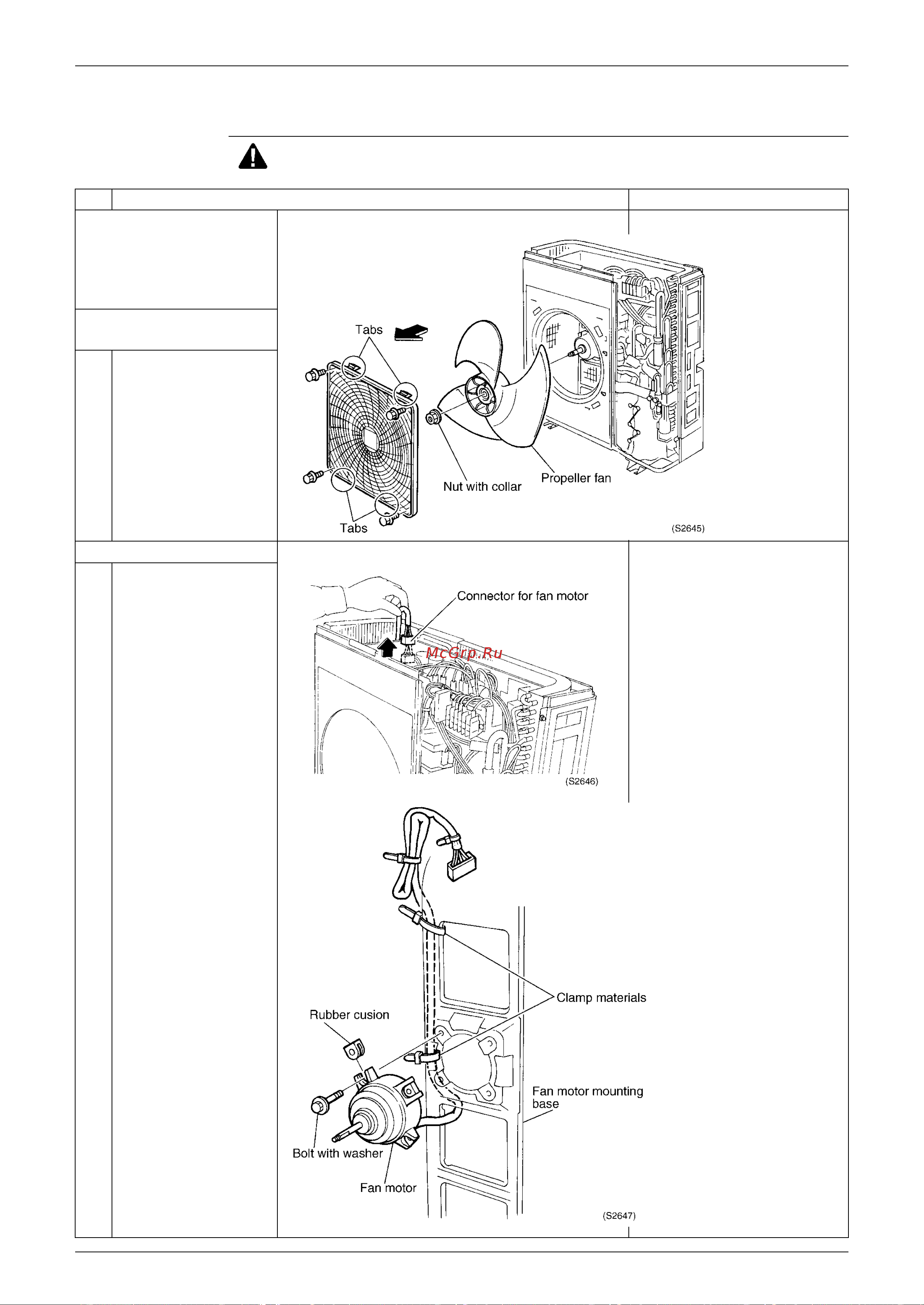

2.2 Removal of Propeller Fan and Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the top panel,
front panel (2), etc.
according to the
procedure for removing
outside panels.
1. Removing the propeller
fan
1
Disengage the 4 tabs at
the top and bottom of
the discharge grille to
remove the 4 mounting
screws, and dismount
the discharge grille.
2
Remove the nut with
collar on the propeller
fan.
2. Removing the fan motor
1
Disconnect the
connector for fan motor
from the PC board
provided in the switch
box.
2
The fan motor lead wire
is clamped at 2
locations.
3
Remove the 4 bolts with
washer securing the fan
motor to dismount the
fan motor.
