RZP71~140D SiE25-110
214 Removal Procedure
3

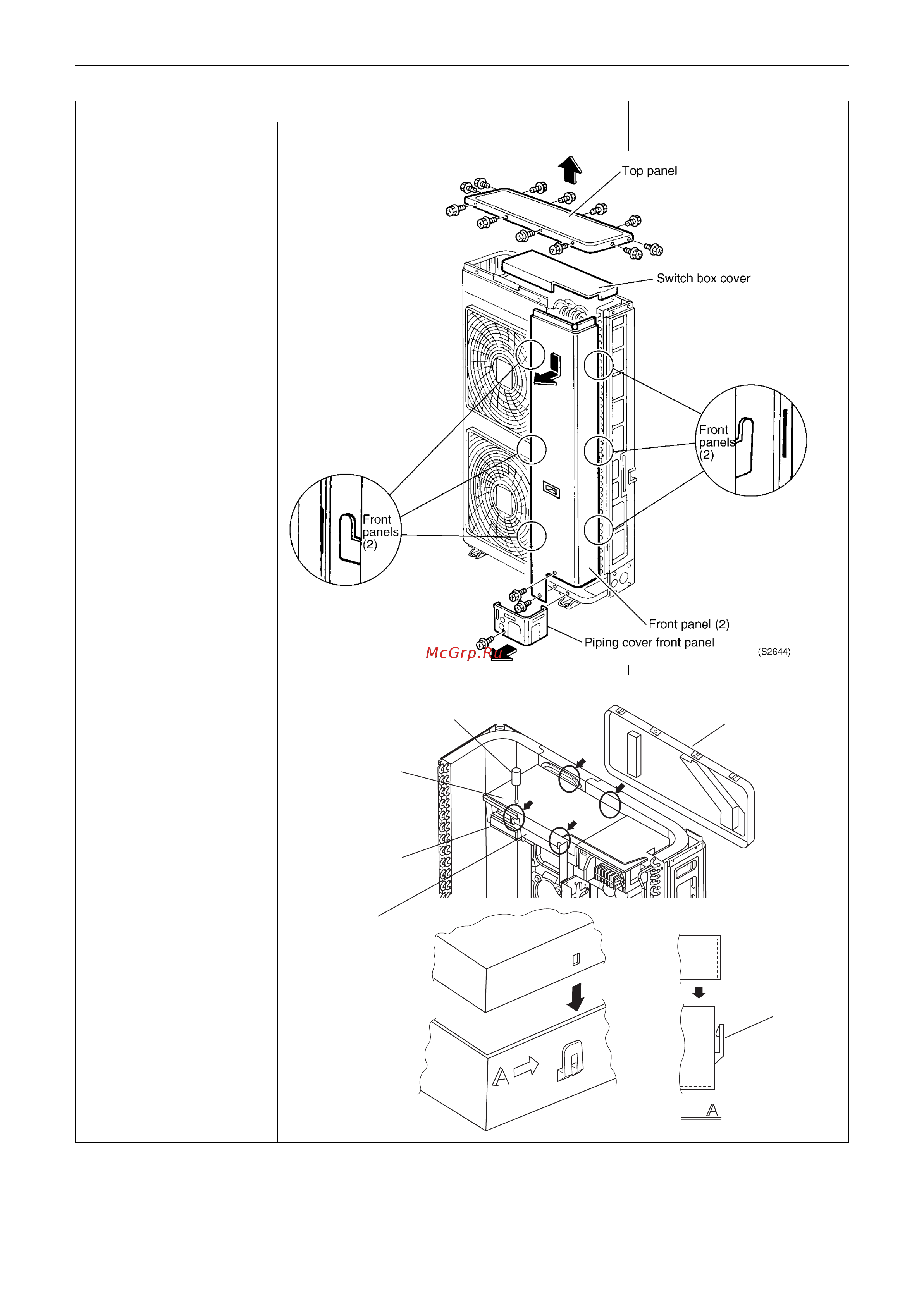

Remove the 2 screws
on the front panel (2)
and push the front
panel downward to
dismount it.
For RZP100~140D models
4
Remove the 1 screw on
the piping cover front
panel to dismount it.
5
To remove the switch
box cover, fit a slotted
screwdriver in four
hooks on the switch box
circled in the right
figure. Then raise the
hooks and pull the
switch box cover
upward.
Step
Procedure Points
View
Hook
(S2578)
Top panel
Screw driver
Switch box cover
Switch box
Fan motor base
