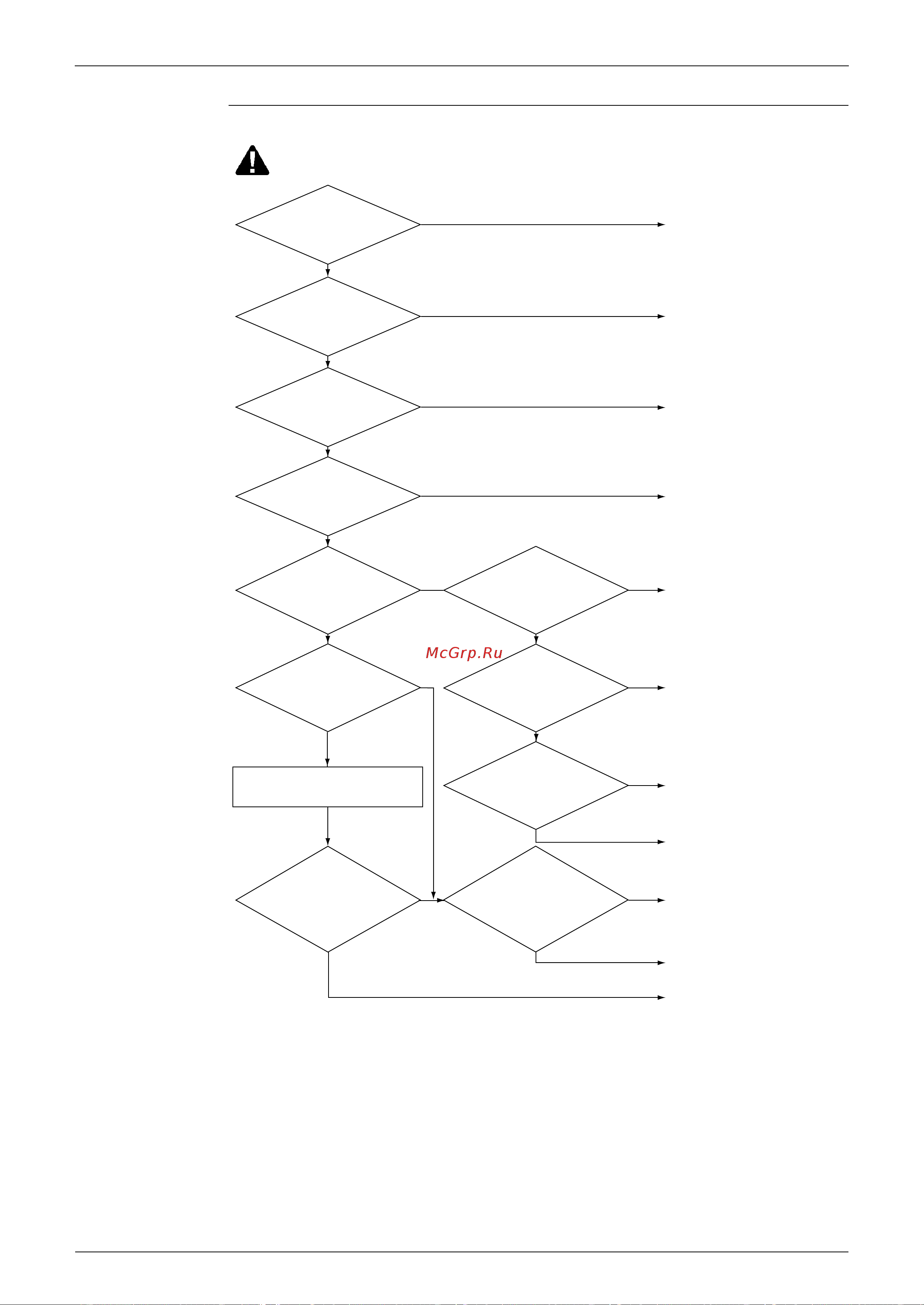

Troubleshooting by Remote Controller Display / LED Display SiE25-110
186 Troubleshooting
Troubleshooting
Are
the jumpers
between indoor-indoor
and indoor-outdoor
correctly
connected?
NO
Do the
microcomputer
normal monitors (LED A)
on all indoor unit PC
boards
blink?
Do the
transmission normal
monitors (LED B) on all indoor
unit PC boards
blink?
NO
Connect correctly.
Could be incorrect wiring.
Check again.
Connect correctly.
Normal
Set correctly.
Connect correctly.
Check the power supply
system inside the indoor unit.
Replace the indoor unit
PC board.
Is
the field setting
for pair /
twin system
correct?
Does the
system conduct normal
operation?
YES
YES
YES
YES
YES
YES
NO
YES
Turn the power supply off once,
and back on to restart.
Are the jumpers
between indoor-indoor and
indoor-outdoor correctly
connected?
NO
Is the power supply
PC board correctly
connected?
NO
NO
NO
NO
Is 220 ~ 240
VAC between No.1 and 3
of X2M terminal
(indoor unit)?
YES
YES
Connect the remote controller
correctly.
Is the
remote controller
connected to one or more
indoor units?
NO
YES
Remove the jumper.
Is
the remote
controller wiring jumped
between indoor
units?
NO
(S2606)
NO
Connect correctly.
Is the
number of indoor
units connected this
sytem correct?
YES
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
