Daikin RZP100DVAL [212/255] Removal of switch box
![Daikin RZP125DV1 [212/255] Removal of switch box](/views2/1782863/page212/bgd4.png)
SiE25-110 FHYCP71~140D
Removal Procedure 203

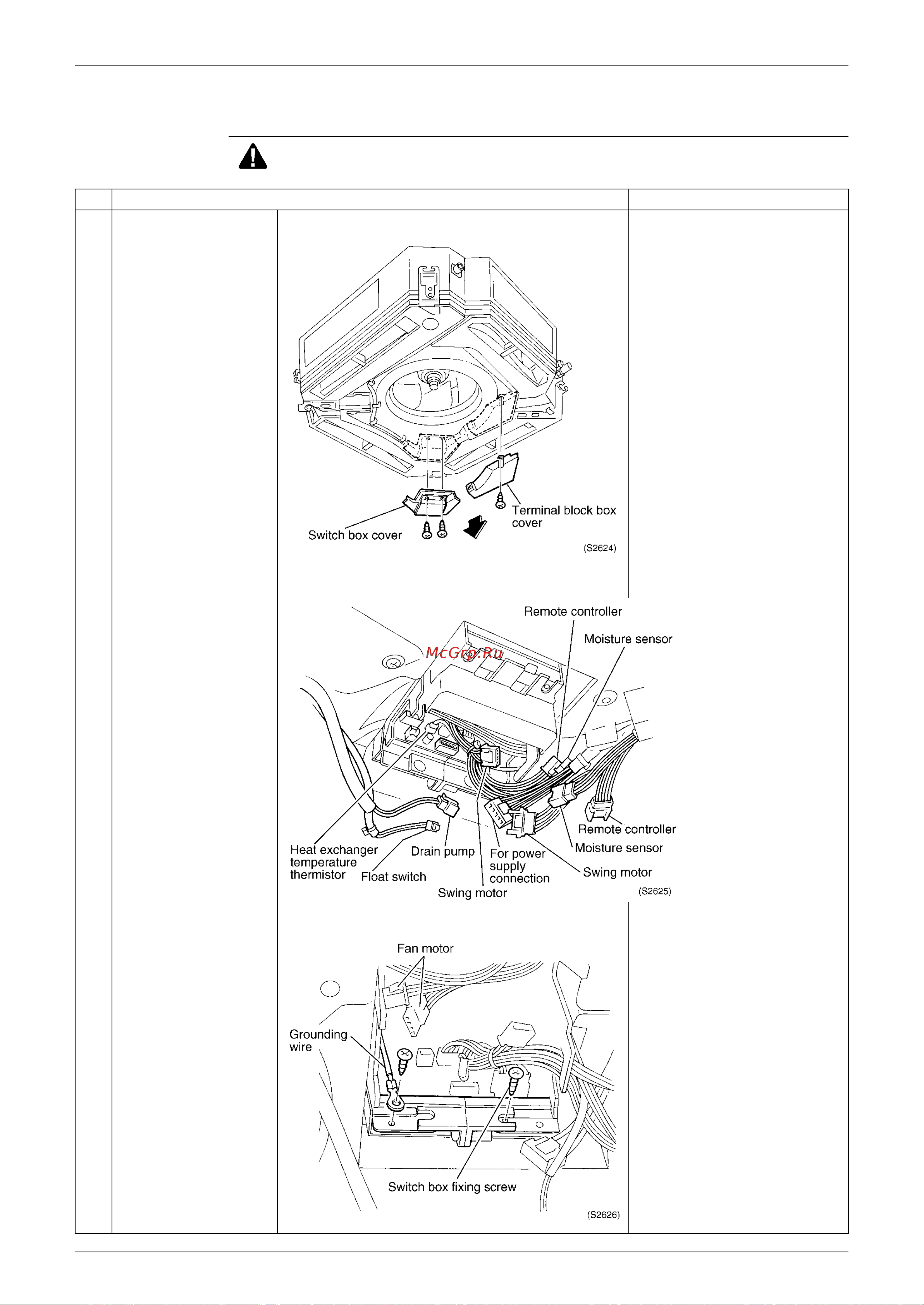

1.6 Removal of Switch Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the 2 mounting
screws on the switch
box cover.
2
Remove the 1 mounting
screw on the terminal
block cover.
3
Disconnect each
connector
(7 connectors in total)
connected to the inside
of the switch box.
Transfer connector
x 3 pieces
Direct connector x 4
pieces
4
Disconnect the
connector for fan motor.
For FHYCP71D :
Direct connector
For FHYCP100~
140D : Relay
connector
5
Remove the grounding
wire mounting screw.
6
Remove the switch box
fixing screw.
