SiE25-110 FHYCP71~140D
Removal Procedure 199
5

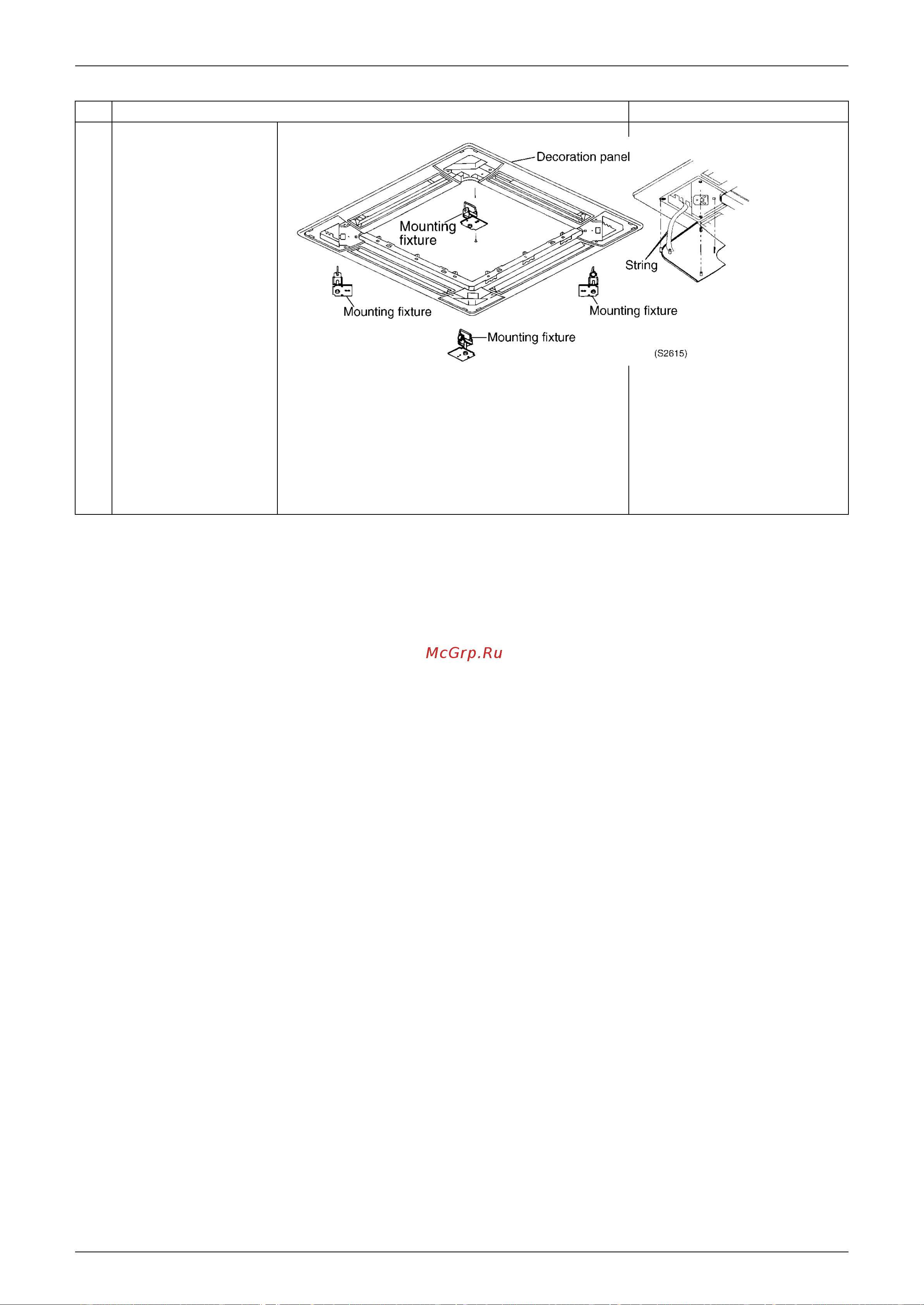

Remove the 2 mounting
fixtures on the outside
(Section A), then
remove the 2 mounting
fixtures on the inside
(Section B).
6
Remove the decoration
panel.
Mounting the decoration
cover in the corner
Mount the decoration cover
so that the 4 hooks on the
decoration cover can
engage with the hole in the
decoration panel.
Step
Procedure Points
