3
Faxing
3-40 FK-506
– To exit the "CONFIRM MODE" menu and display the main screen,
press the [Back] key twice while the TX/RX RESULT screen is
displayed.
– To print the communication results report, press the [Start] key.
After the communication results report is printed, the main screen
appears.

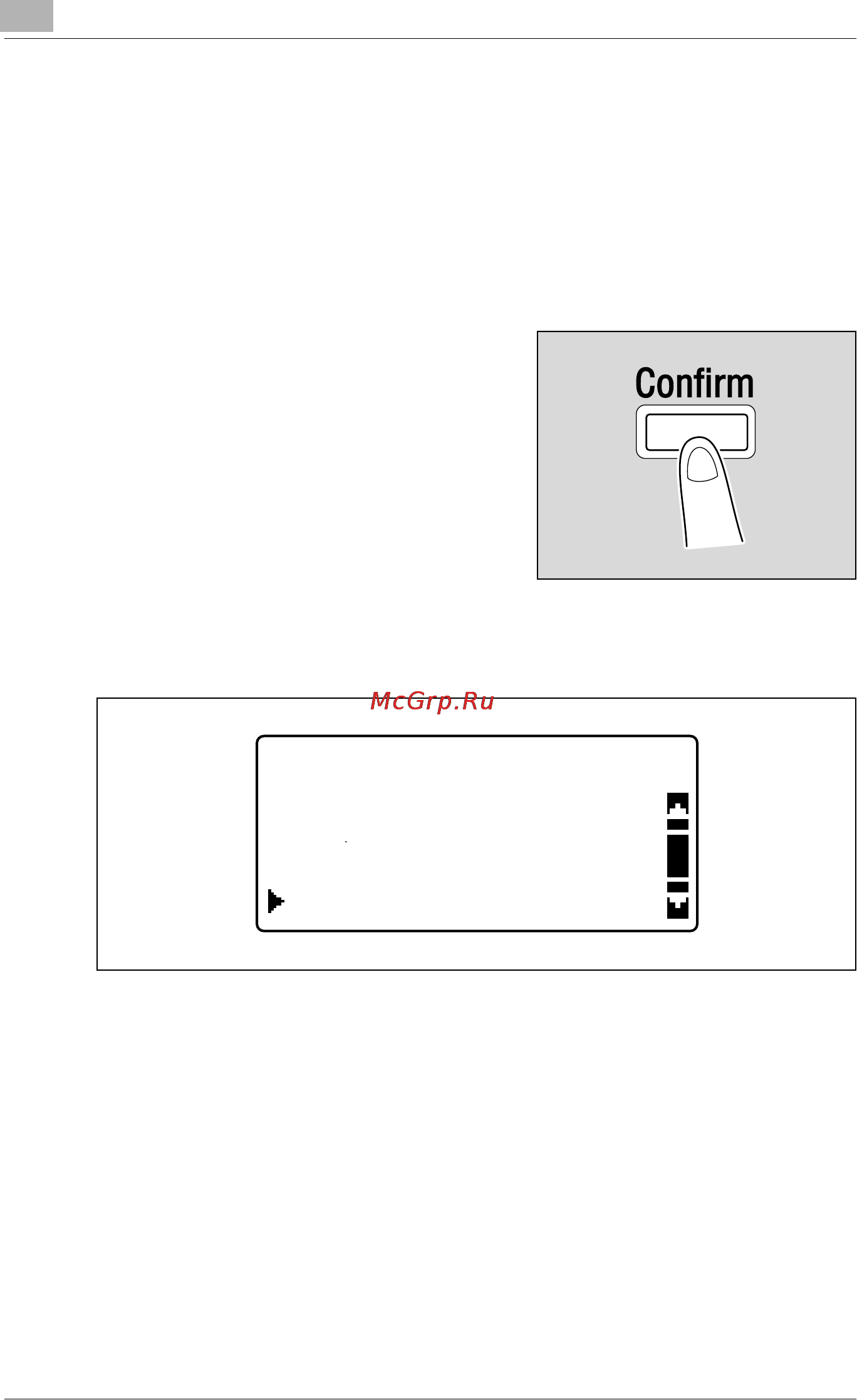

Printing reports/lists
1 Press the [Confirm] key.
The "CONFIRM MODE" menu
appears.
2 Press the [+] or [,] key until "PRINT REPORT" is selected, and then
press the [OK] key.
CONFIRM MODE
TX/RX RESULT
TOTAL PAGE
PRINT REPORT
