2
Precaution
2-8 FK-506

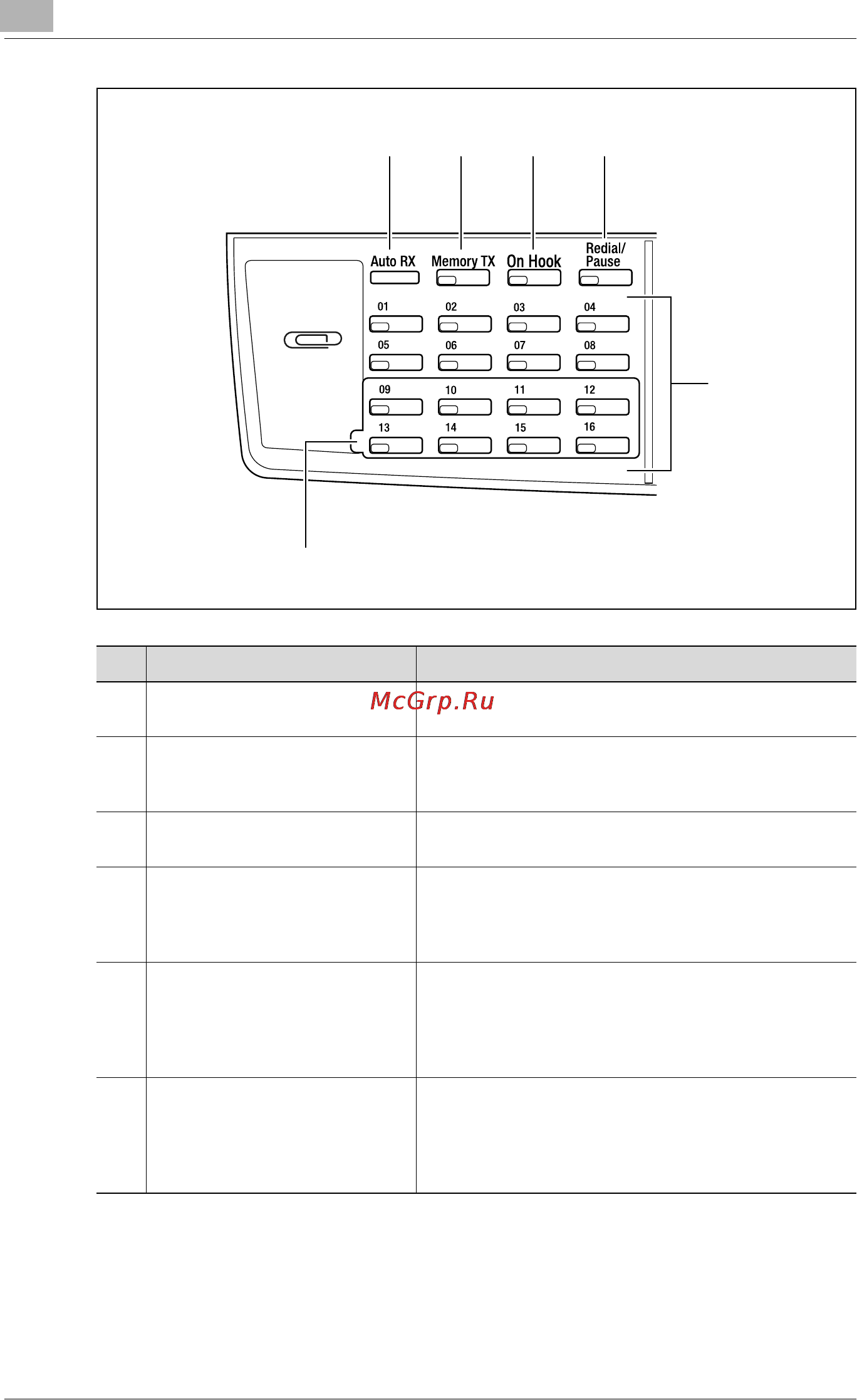

31 32 33 34
35
36
No. Part name Description
31 "Auto RX" indicator This indicator lights up when the automatic reception
function is selected.
32 [Memory TX] key/indicator Press to select the memory transmission function. This
indicator lights up in green when the memory trans-
mission function is selected.
33 [On Hook] key Press to answer the call. Press this key again to hang
up.
34 [Redial/Pause] key • Press to redial the last recipient called.
• While dialing, this key is used to generate a pause
when transferring from an internal to an external line
or receiving information services.
35 One-touch dial keys • Use to dial previously registered fax numbers.
• Use [01] through [32] for specifying one-touch dial-
ing and group dialing settings.
• Use keys [29] through [32] for specifying program
dialing settings.
36 Switching plate Switches the numbers assigned to the one-touch dial
keys. When the switching plate is closed in the lower
position, the keys are numbered 01 through 16. When
the switching plate is open in the upper position, the
keys are numbered 17 through 32.
