Konica Minolta bizhub 163R [230/318] Dial registration

Utility mode/Fax mode parameters

6-46 FK-506

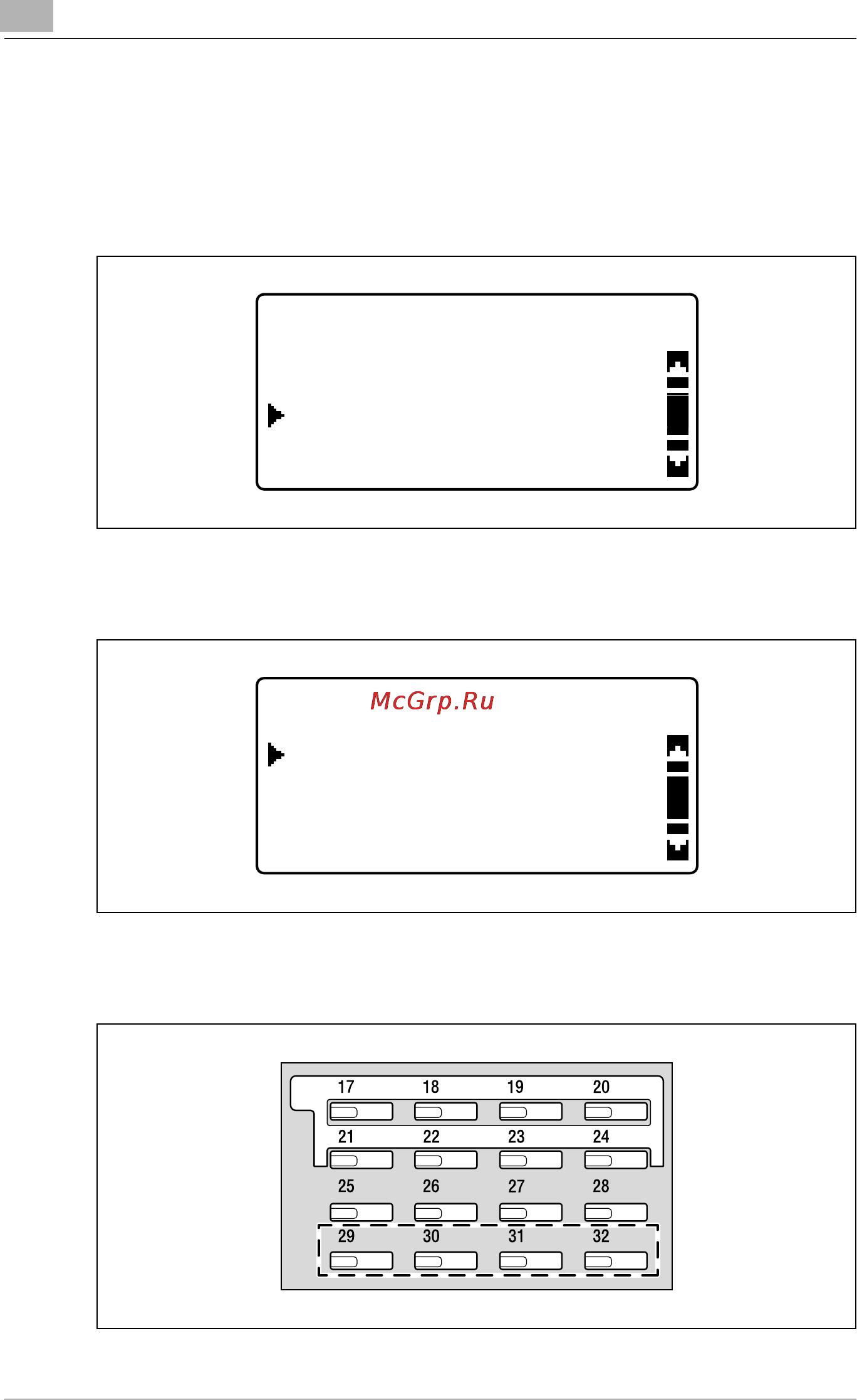

Changing/deleting a mailbox transmission program

1 Display the "DIAL REGISTRATION" menu.

– Refer to "Displaying the "DIAL REGISTRATION" menu" on

page 6-20.

2 Press the [+] or [,] key until "PROGRAM DIAL" is selected, and then

press the [OK] key.

3 Press the one-touch dial key programmed with the mailbox

transmission settings to be changed or deleted.

UTILITY MODE

DIAL REGISTRATION

COPY SETTING 2

FAX REGISTRATION

DIAL REGISTRATION

RETURN

PROGRAM DIAL
