Faxing
3
FK-506 3-11
Selecting a Quality setting
1 Press the [Fax] key.
The machine enters Fax mode, and the Fax mode screen appears.
2 Position the document to be faxed.

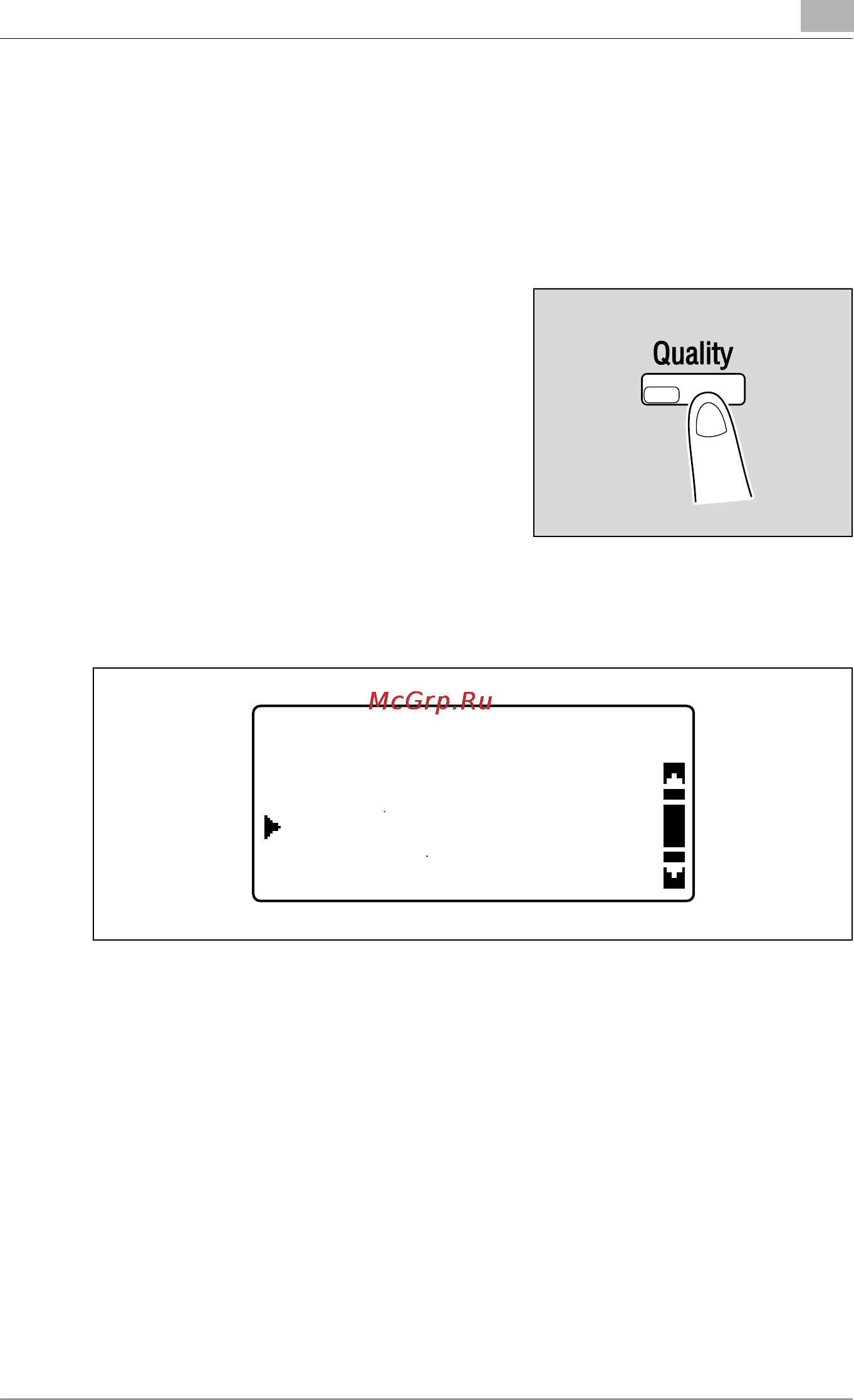

3 Press the [Quality] key.
4 Press the [+] or [,] key until the desired Quality setting is selected, and
then press the [OK] key.
!
Detail
Depending on the recipient’s fax machine, it may not be possible to send
faxes using the "S-FINE/TEXT" or "S-FINE/PHOTO" setting. In this case,
the fax is sent with the "FINE/TEXT" or "FINE/PHOTO" setting.
If the "PHOTO" or "S-FINE/PHOTO" setting is selected, the fax may have
a decreased image quality, depending on the quality of the recipient’s fax
machine or on whether the document size is larger than the paper loaded
in the recipient’s fax machine.
QUALITY
FINE/TEXT
STD/TEXT
S-FINE/TEXT
