Faxing
3
FK-506 3-27
Specifying multiple destinations (broadcast transmission)
A document can be sent to multiple destinations with a single operation. This
is called a broadcast transmission.
2
Note
Use memory transmission to send a fax to multiple destinations.
Use any of the following methods to specify multiple destinations.
- Manual dialing
- One-touch dialing
- Speed dialing
- Group dialing
- Phone book dialing
Destinations can be specified using any combination of the methods listed
above.
!
Detail
A maximum of 255 destinations can be specified for the same
transmission.
When the one-touch dial keys are used, a maximum of 32 destinations
can be specified.
When the speed dial numbers are used, a maximum of 240 destinations
can be specified.
When fax numbers are directly typed in, a maximum of 16 destinations
can be specified.
1 Position the document to be faxed.
– Refer to "Positioning the document" on page 3-6.

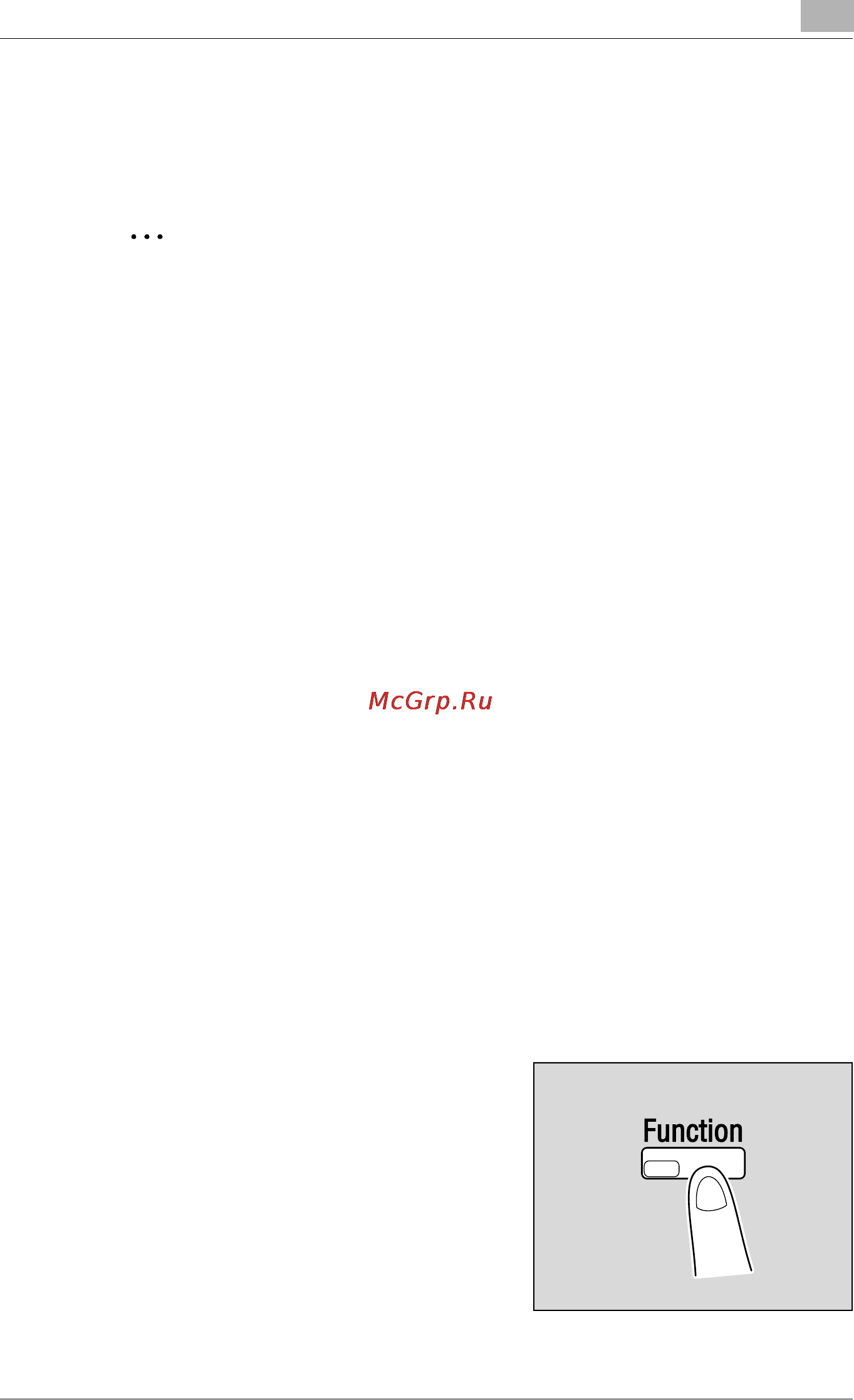

2 Press the [Function] key.
The "FAX FUNCTION" menu
appears.
