Konica Minolta bizhub 163R [197/318] Displaying the admin management menu

Utility mode/Fax mode parameters

FK-506 6-13

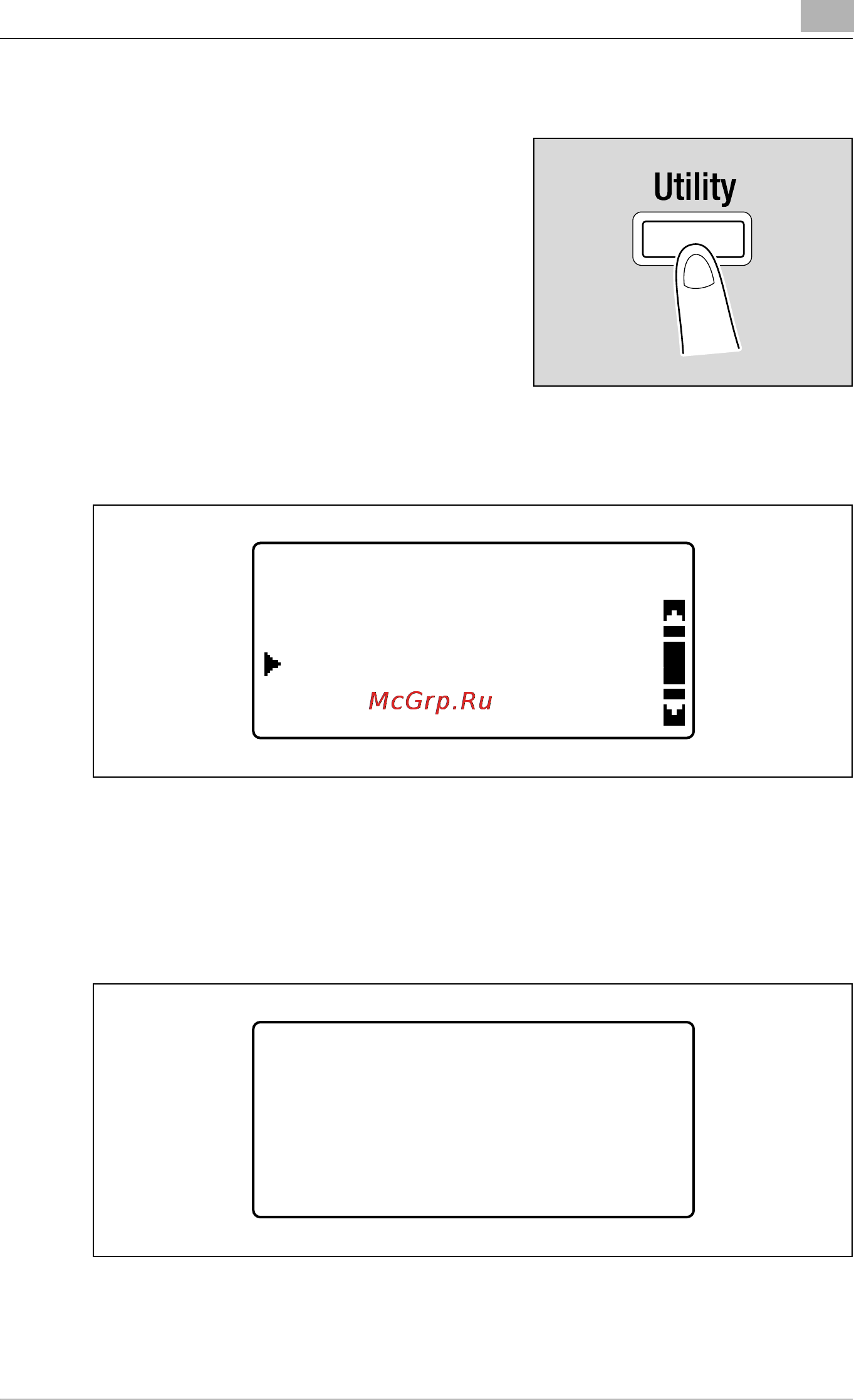

Displaying the "ADMIN. MANAGEMENT" menu

1 Press the [Utility] key.

The "UTILITY MODE" menu appears.

2 Press the [+] or [,] key until "ADMIN. MANAGEMENT" is selected, and

then press the [OK] key.

3 Use the keypad to type in the administrator access code, and then

press the [OK] key.

– The default administrator access code is "000000".

– To correct the entered number, press the [Clear/Stop] key, and then

type in the correct number.

The "ADMIN. MANAGEMENT" menu appears.

UTILITY MODE

ADMIN. MANAGEMENT

USER MANAGEMENT

COPY SETTING 1

ADMIN. MANAGEMENT

ADMIN. NO.:******
