2
Precaution
2-6 FK-506
13 [Quality] key Press to select the document quality.
In Copy mode, select "TEXT", "PHOTO" or
"TEXT/PHOTO".
In Fax mode, select "TEXT" or "PHOTO", combined
with "STD", "FINE" or "S-FINE".
14 [Zoom] key Press to specify whether to enlarge or reduce the im-
age when copying.
15 [Paper] key Press to select the paper drawer that is to be used.
16 [Function] key/indicator Press to specify settings for advanced copy opera-
tions and useful fax transmission/reception functions,
such as copying with a binding margin added and
sending/receiving confidential documents.
17 [Finishing] key/indicator Press to select a copy Finishing function.
18 [Combine Original] key/indicator Specify settings to copy multiple (2 or 4) document
pages together within a single sheet of paper (2in1 or
4in1).
19 [Confirm] key Press to view the counters or communication results,
or to print a communication results report.
20 [Utility] key Press to specify settings in Utility mode.
MACHINE SETTING, PAPER SOURCE SETTING,
CUSTOM SIZE MEMORY, USER MANAGEMENT, AD-
MIN. MANAGEMENT, COPY SETTING 1, COPY SET-
TING 2, DIAL REGISTRATION, FAX REGISTRATION,
FAX TX OPERATION, FAX RX OPERATION, REPORT-
ING
21 [Mode Memory] key Press to register specified copy programs and recall
them.

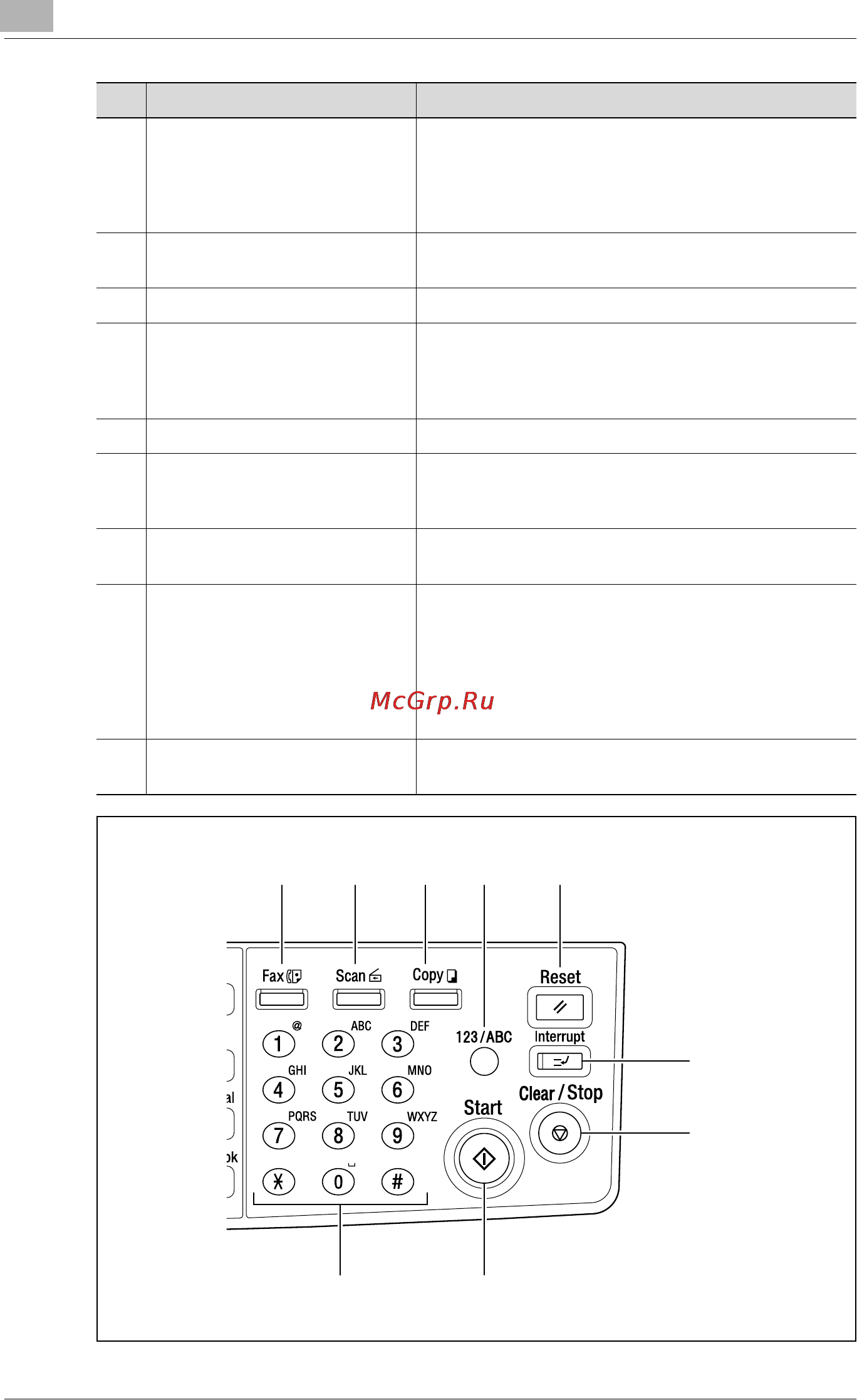

No. Part name Description
22 23 24 25 26
27
28
2930
