Precaution
2
FK-506 2-23
Specifying the machine’s fax number ("USER FAX NO." parameter)

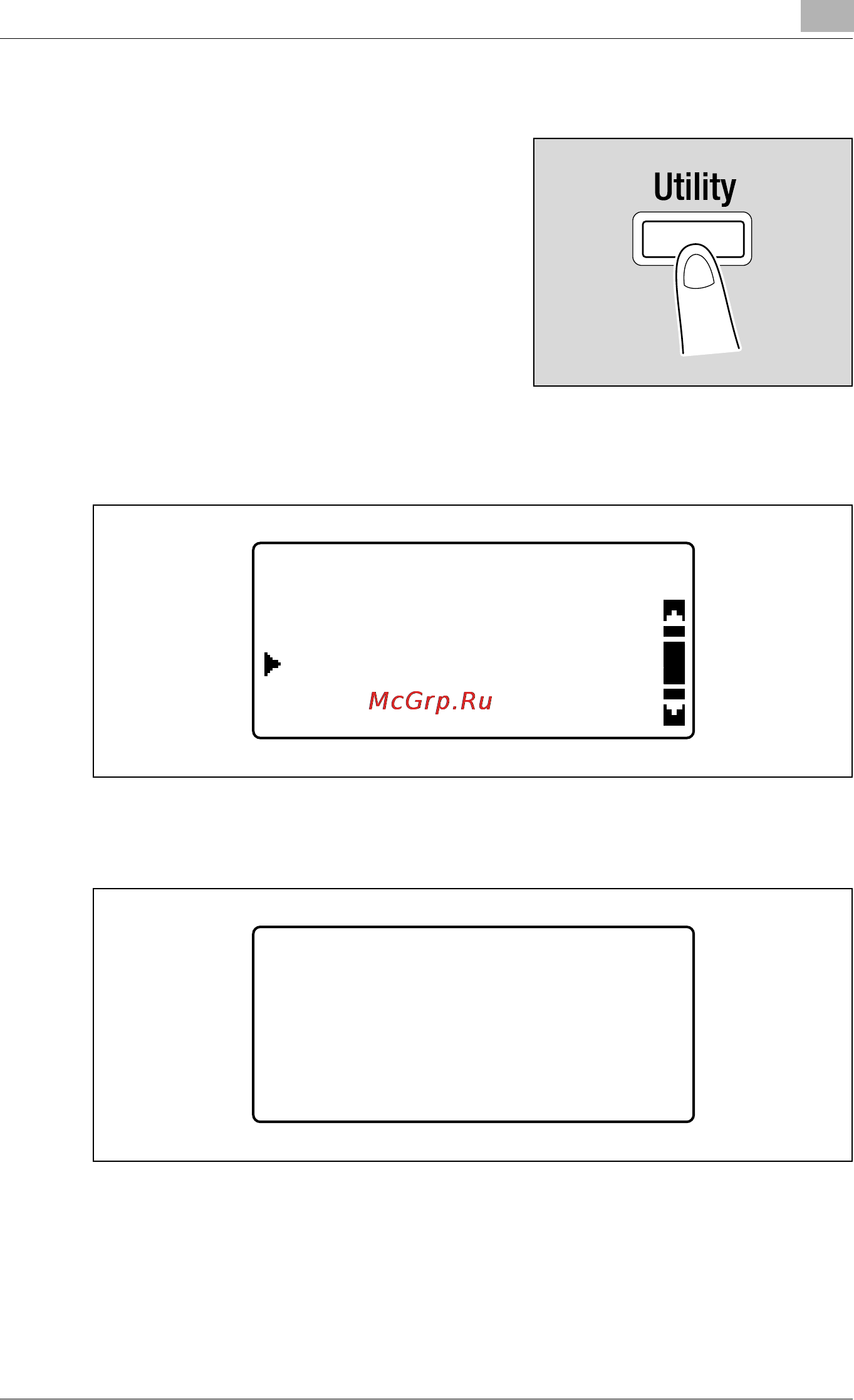

1 Press the [Utility] key.
The "UTILITY MODE" menu appears.
2 Press the [+] or [,] key until "ADMIN. MANAGEMENT" is selected, and
then press the [OK] key.
3 Use the keypad to type in the administrator access code, and then
press the [OK] key.
The "ADMIN. MANAGEMENT" menu appears.
UTILITY MODE
ADMIN. MANAGEMENT
USER MANAGEMENT
COPY SETTING 1
ADMIN. MANAGEMENT
ADMIN. NO.:******
