Faxing
3-4 FK-506
3 Select the Quality setting.
– For details on selecting the Quality setting, refer to "Selecting the
fax quality" on page 3-10.
4 Type in the fax number of the recipient.
– For details on specifying the recipient, refer to "Specifying a
recipient" on page 3-12.
5 Press the [Start] key.
– If the document is loaded into the document feeder, the machine
starts scanning the document and sending the fax.
When the transmission is finished, a beep is sounded.
To stop the transmission, press the [Clear/Stop] key, and then
select "YES" in the screen that appeared.
– If the document is placed on the original glass, continue with step 6.
6 Press the [+] or [,] key until "AUTO DETECTION" or "MANUAL" is
selected, and then press the [OK] key.
– If "MANUAL" was selected, specify the paper size.

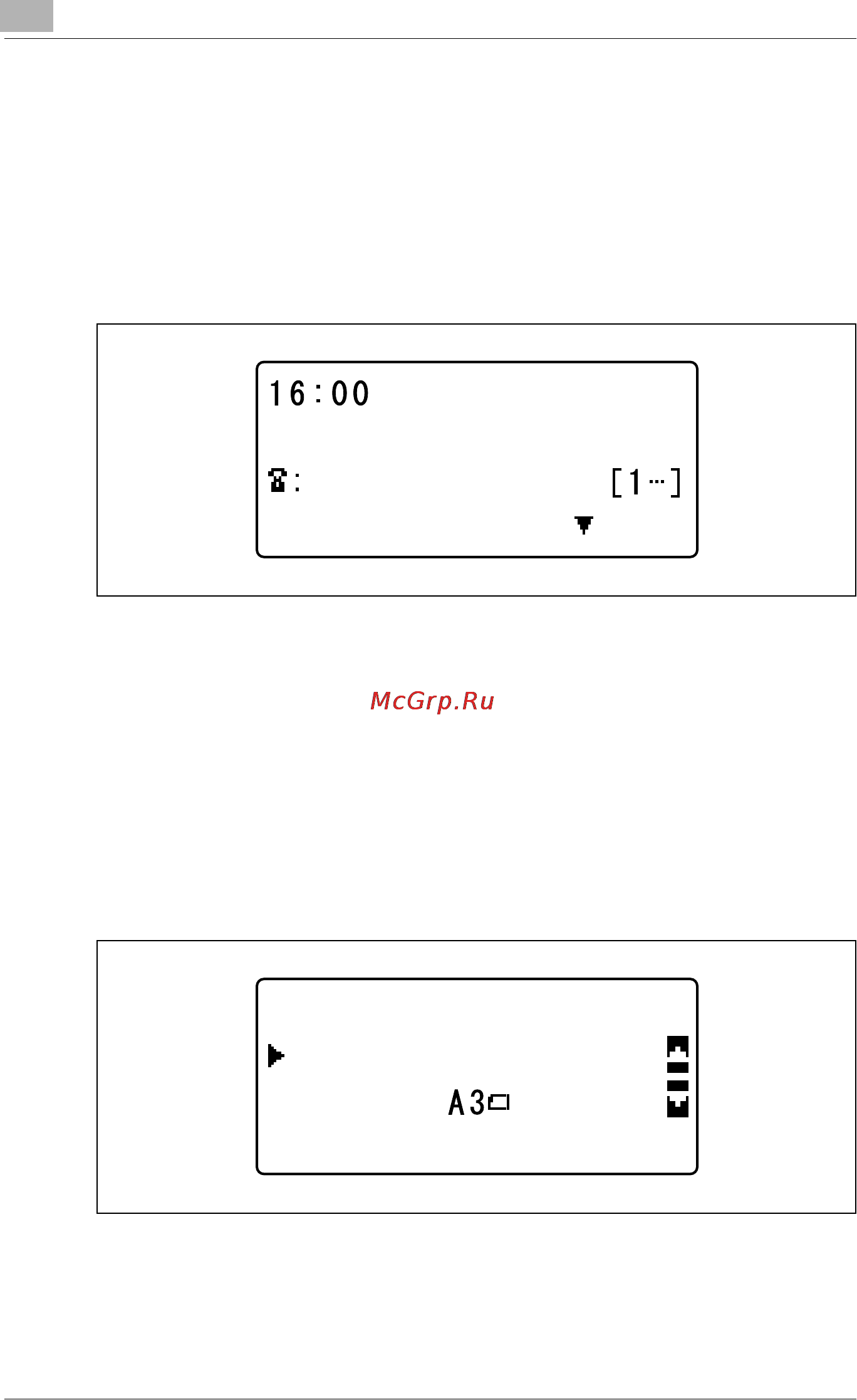

Memory:100%
01234_
QUALITY:STD/TEXT
OTHER SETTING=
BOOK SCAN
MANUAL:
AUTO DETECTION
