Appendix

8-10 FK-506

Registering one-touch dialing settings

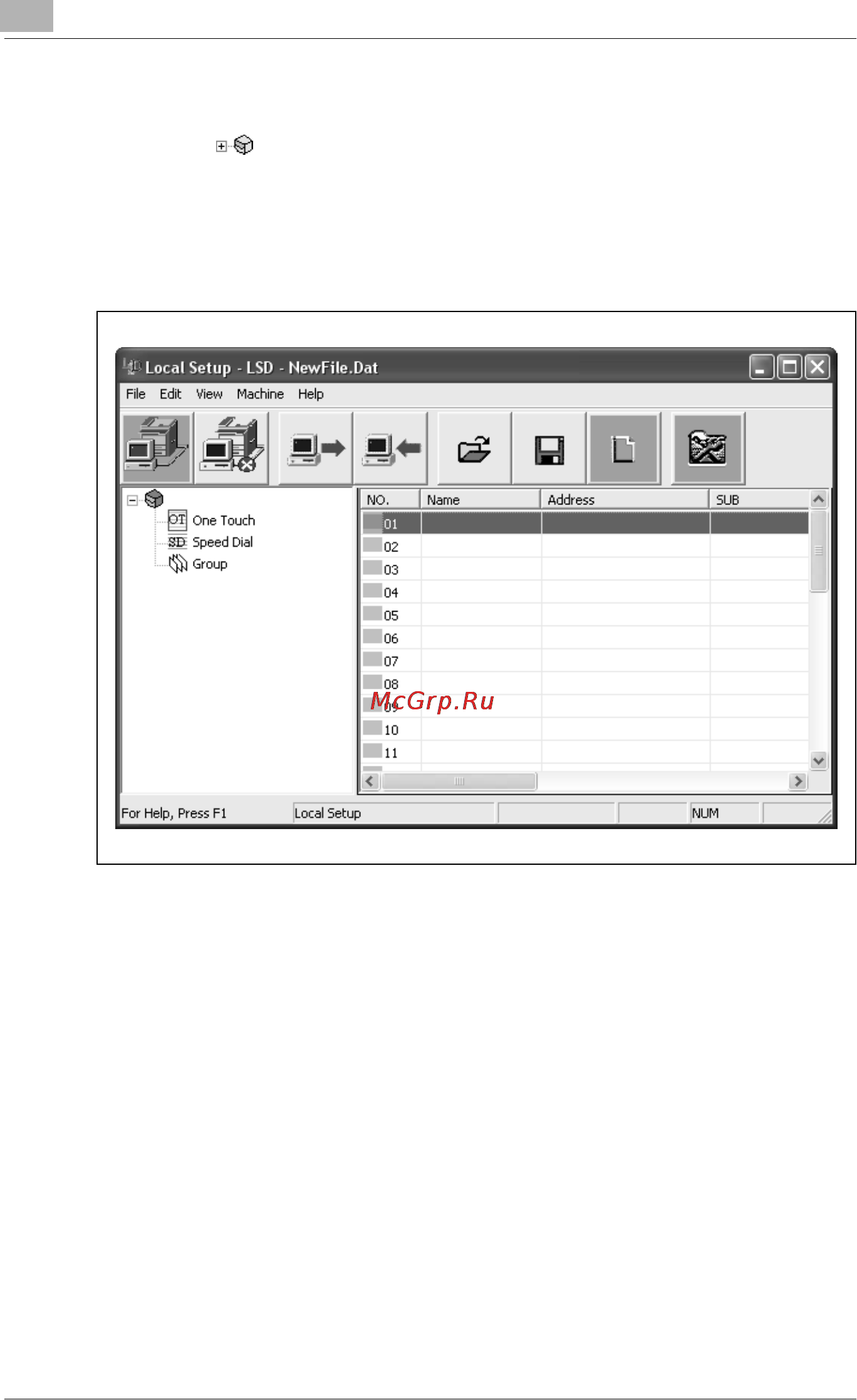

1 Click beside the machine icon, and then click "One Touch".

2 From the list that is displayed, double-click the one-touch dial number

to be programmed.

– A maximum of 32 one-touch dial numbers can be programmed.
