Konica Minolta bizhub 163R [54/318] Setting the current date and time date time parameter

Precaution

2-20 FK-506

Setting the current date and time ("DATE&TIME" parameter)

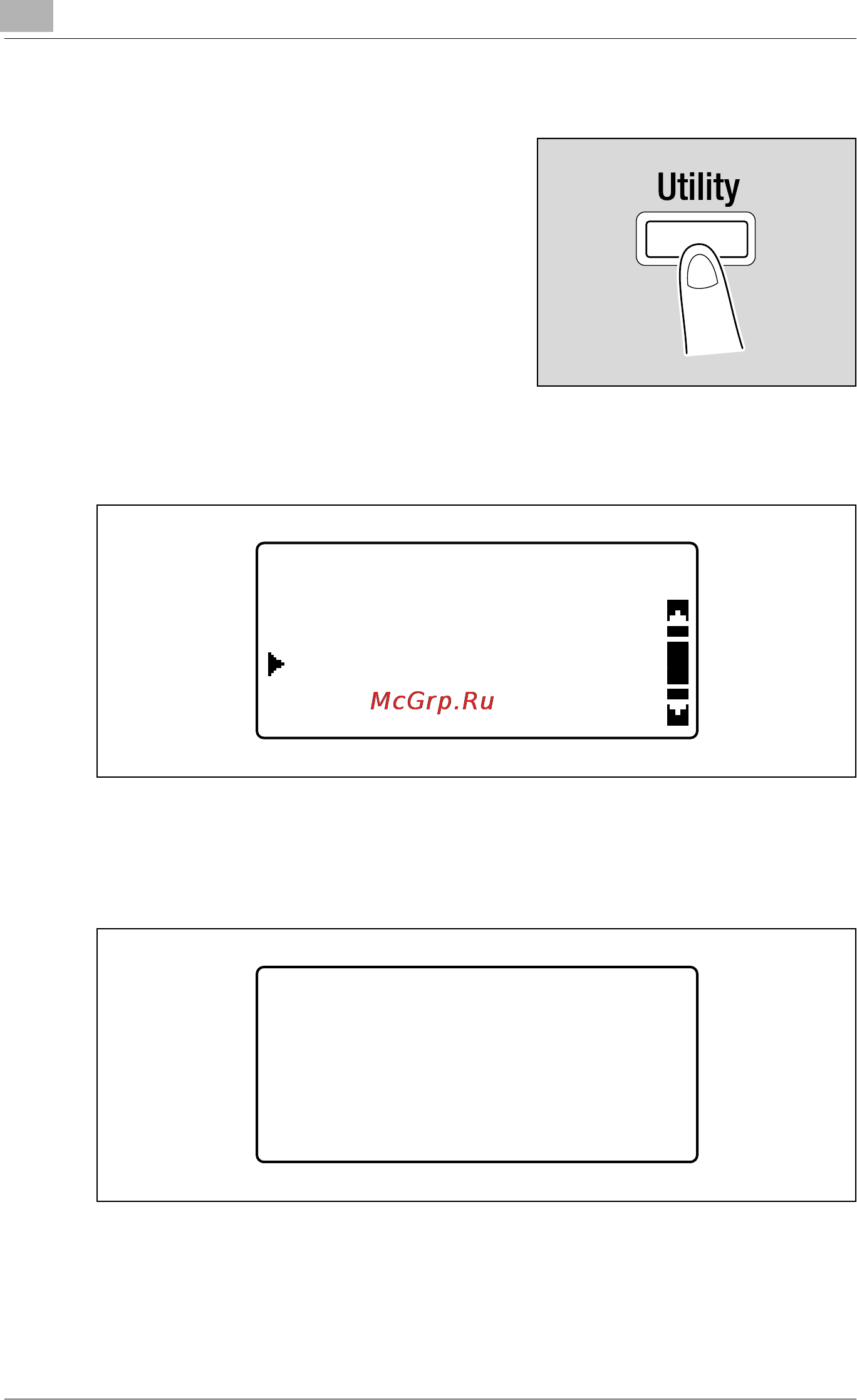

1 Press the [Utility] key.

The "UTILITY MODE" menu appears.

2 Press the [+] or [,] key until "ADMIN. MANAGEMENT" is selected, and

then press the [OK] key.

3 Use the keypad to type in the administrator access code, and then

press the [OK] key.

– The default administrator access code is "000000".

The "ADMIN. MANAGEMENT" menu appears.

UTILITY MODE

ADMIN. MANAGEMENT

USER MANAGEMENT

COPY SETTING 1

ADMIN. MANAGEMENT

ADMIN. NO.:******
