Konica Minolta bizhub 163R [94/318] Broadcast
![Konica Minolta bizhub 163fR [94/318] Broadcast](/views2/1121828/page94/bg5e.png)
3
Faxing
3-28 FK-506
3 Press the [+] or [,] key until "BROADCAST" is selected, and then press
the [OK] key.
4 Specify a recipient, and then press the [OK] key.
– When specified using the one-touch dial keys: Press the one-touch
dial key programmed with the destination where the fax is to be
sent.
– When specified using speed dial numbers: Press the [Speed Dial]
key, and then type in the 3-digit speed dial number of the
destination where the fax is to be sent.
– When specified using group dialing: Press the one-touch dial key
programmed with the group of destinations where the fax is to be
sent.
– When specified using the phone book: Press the [Phone Book] key,
and then specify the destination after selecting either "LIST" or
"SEARCH". (Refer to "Phone book dialing (LIST, SEARCH)" on
page 3-22.)
When optional image controller IC-206 or network interface card
NC-503 has been installed on the machine, an LDAP search can be
performed. For details, refer to "Searching the phone book (LDAP
search)" on page 5-8.
– When directly typed in: Type in the fax number of the destination
where the fax is to be sent.

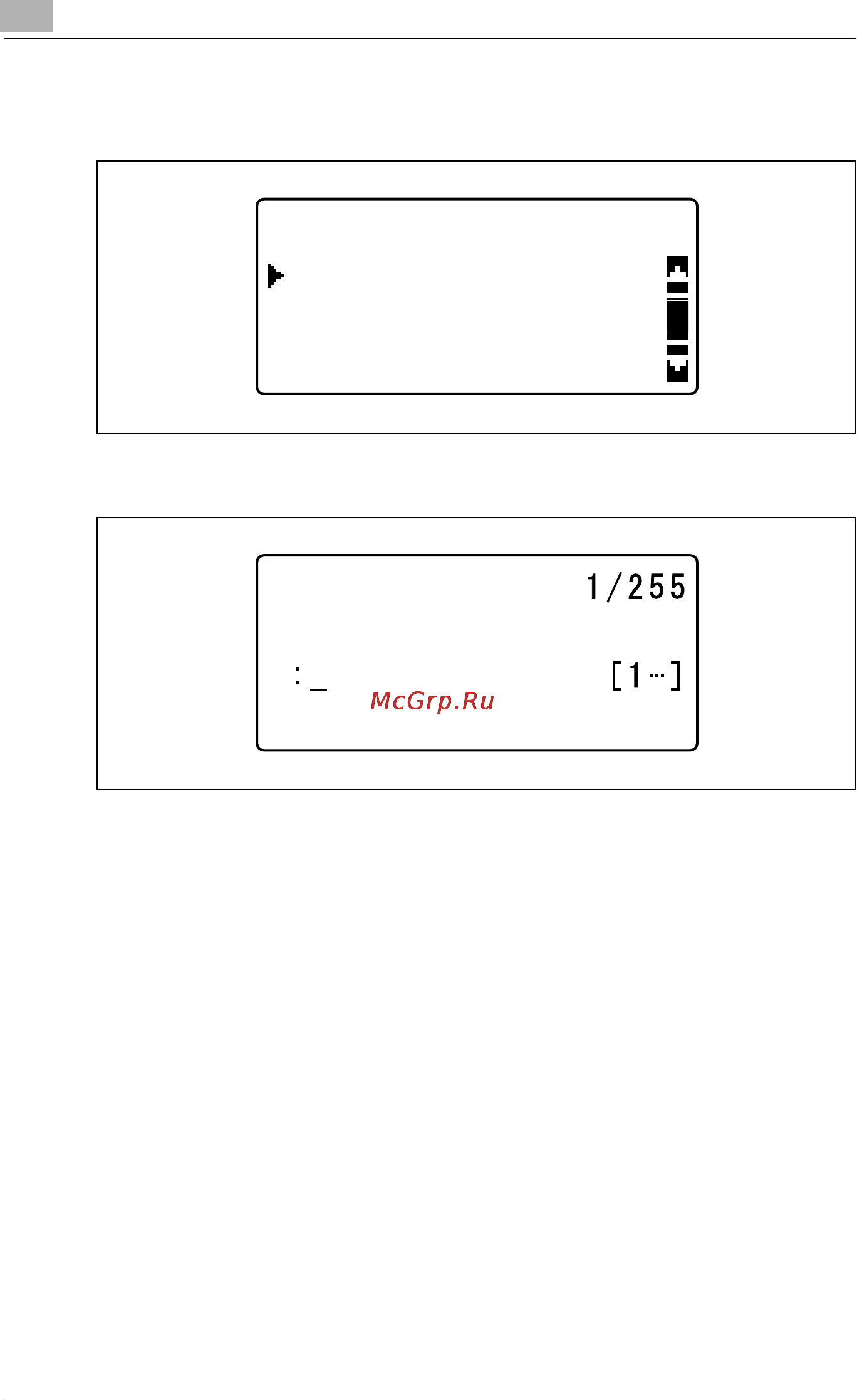

FAX FUNCTION
MAILBOX TX
BROADCAST
PRINT MAILBOX RX
BROADCAST
DESTINATION
