Useful transmission and reception functions
4
FK-506 4-19
4.4 Polling reception
With polling reception, a document loaded in the sender’s machine or the
document reserved for polling transmission is sent when a request is sent.
This is convenient when the recipient is to incur the cost of the call.
!
Detail
A maximum of 255 recipients can be specified.
When the one-touch dial keys are used, a maximum of 32 destinations
can be specified.
When the speed dial numbers are used, a maximum of 240 destinations
can be specified.
When fax numbers are directly typed in, a maximum of 16 destinations
can be specified.
Polling reception is compatible with F-codes.

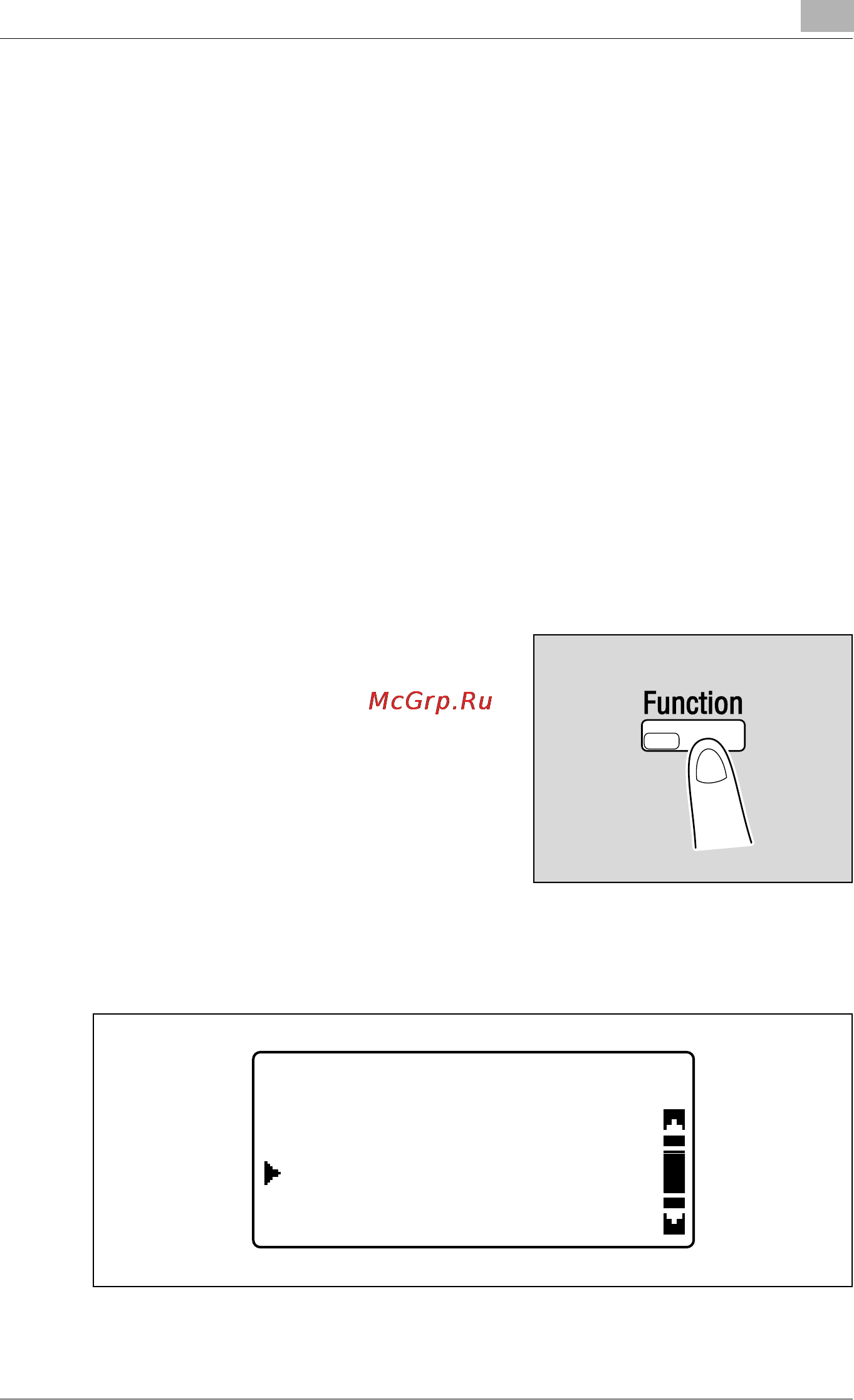

1 Press the [Function] key.
2 Press the [+] or [,] key until "POLLING RX" is selected, and then press
the [OK] key.
FAX FUNCTION
POLLING RX
POLLING TX
RELAY INITIATE
