Konica Minolta bizhub 163R [259/318] Displaying the fax rx operation menu

Utility mode/Fax mode parameters

FK-506 6-75

Displaying the "FAX RX OPERATION" menu

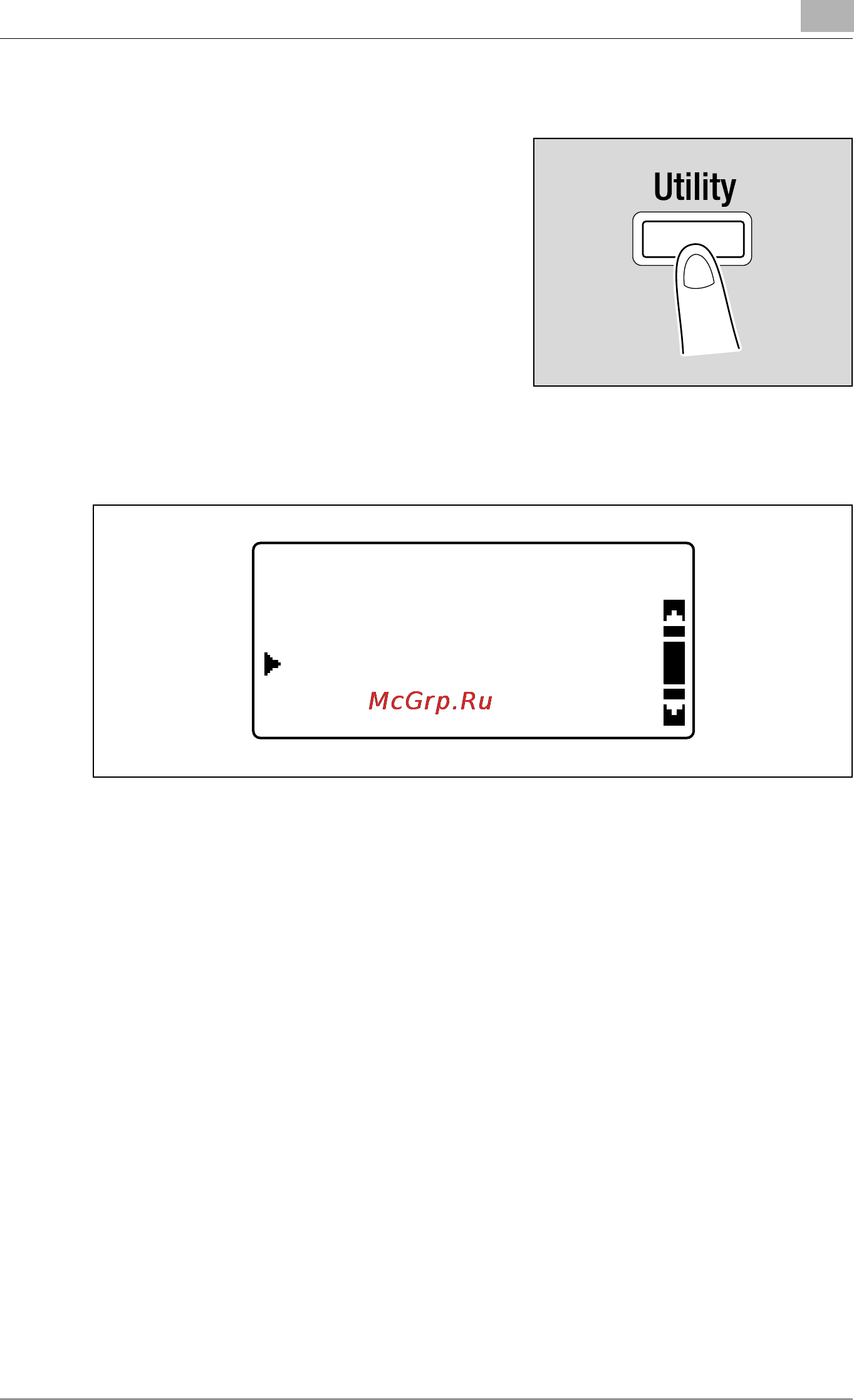

1 Press the [Utility] key.

The "UTILITY MODE" menu appears.

2 Press the [+] or [,] key until "FAX RX OPERATION" is selected, and

then press the [OK] key.

The "FAX RX OPERATION" menu appears.

3 Press the [+] or [,] key until the desired FAX RX OPERATION

parameter is selected, and then press the [OK] key.

– The following FAX RX OPERATION parameters are available.

MEMORY RX MODE

NO. of RINGS

REDUCTION RX

RX PRINT

RX MODE

FORWARD

FOOTER

SELECT TRAY

CLOSED NETWORK

UTILITY MODE

FAX RX OPERATION

FAX TX OPERATION

REPORTING
