Internet faxing
5-8 FK-506
Searching the phone book (LDAP search)
An e-mail address can be found in the phone book with an LDAP search. An
LDAP search is a function for recalling an e-mail address registered on the
LDAP server. The search can be performed by entering part of the recipient’s
name or e-mail address.
For this example, we will recall the e-mail address registered with the name
"AAA TOKYO" and the e-mail address "aaatokyo@test.local".
!
Detail
In order to perform an LDAP search, LDAP settings must be specified in
advance. For details, refer to the user manual for image controller IC-206
or network interface card NC-503.

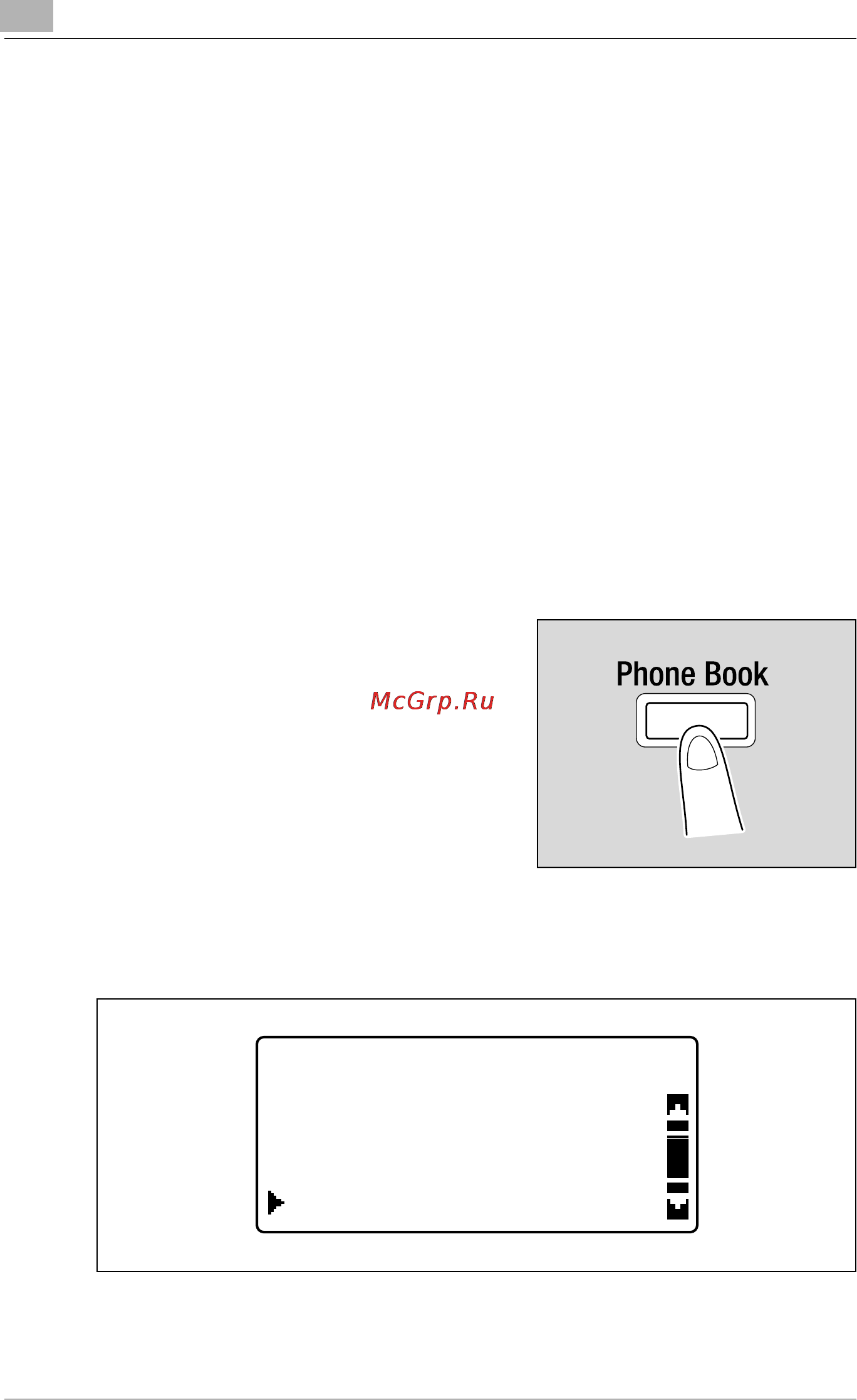

1 Position the document to be faxed.
2 If necessary, select the Quality setting.
3 Press the [Phone Book] key.
4 Press the [+] or [,] keys until "LDAP SEARCH" is selected, and then
press the [OK] key.
PHONE BOOK
SEARCH
LIST
LDAP SEARCH
