Konica Minolta bizhub 163R [43/318] Display indications
![Konica Minolta bizhub 163fR [43/318] Display indications](/views2/1121828/page43/bg2b.png)
Precaution
2
FK-506 2-9
Display indications

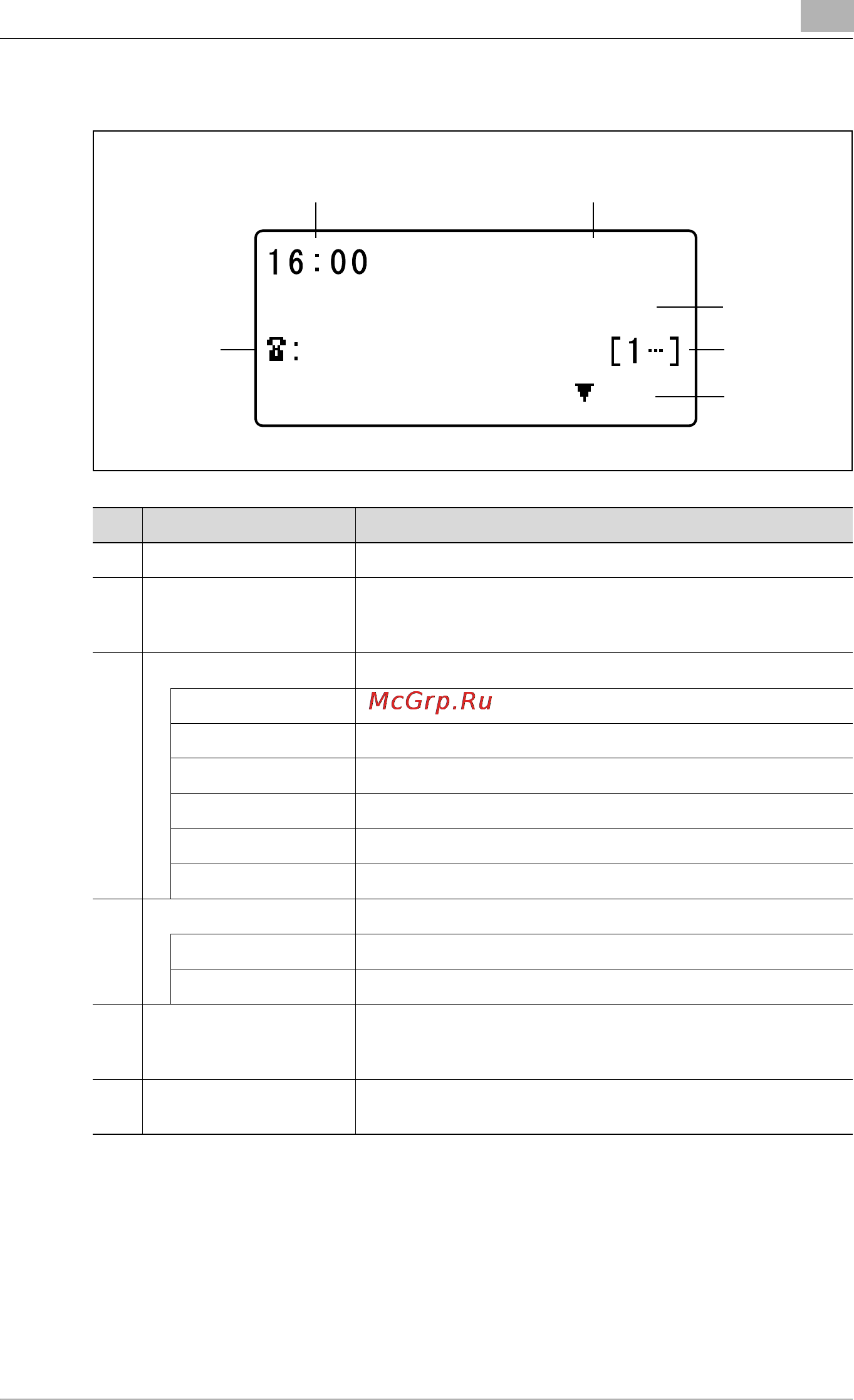

Fax mode screen
1
2
3
4
5
6
Memory:100%
01234_
QUALITY:STD/TEXT
OTHER SETTING=
No. Display indication Description
1 Time Indicates the time currently specified on the machine.
2 Available memory Indicates the percentage of the memory that is not used.
When the amount of memory available is near 0%, it may not
be possible to scan new documents since the memory is full.
3 Image quality Indicates the selected Quality setting.
STD/TEXT Indicates that the "STD/TEXT" setting is selected.
FINE/TEXT Indicates that the "FINE/TEXT" setting is selected.
S-FINE/TEXT Indicates that the "S-FINE/TEXT" setting is selected.
STD/PHOTO Indicates that the "STD/PHOTO" setting is selected.
FINE/PHOTO Indicates that the "FINE/PHOTO" setting is selected.
S-FINE/PHOTO Indicates that the "S-FINE/PHOTO" setting is selected.
4 Input mode Indicates the currently selected input mode.
[1…] Indicates that the number input mode is selected.
[A…] Indicates that the letter/symbol input mode is selected.
5 Messages Displays instructions for displaying the "FAX OTHER SET-
TING" menu and the status of operations, such as computer
printing, while the machine is in Fax mode.
6 Fax number/e-mail ad-
dress
Displays the fax number or e-mail address being entered.
