FK-506 8-17

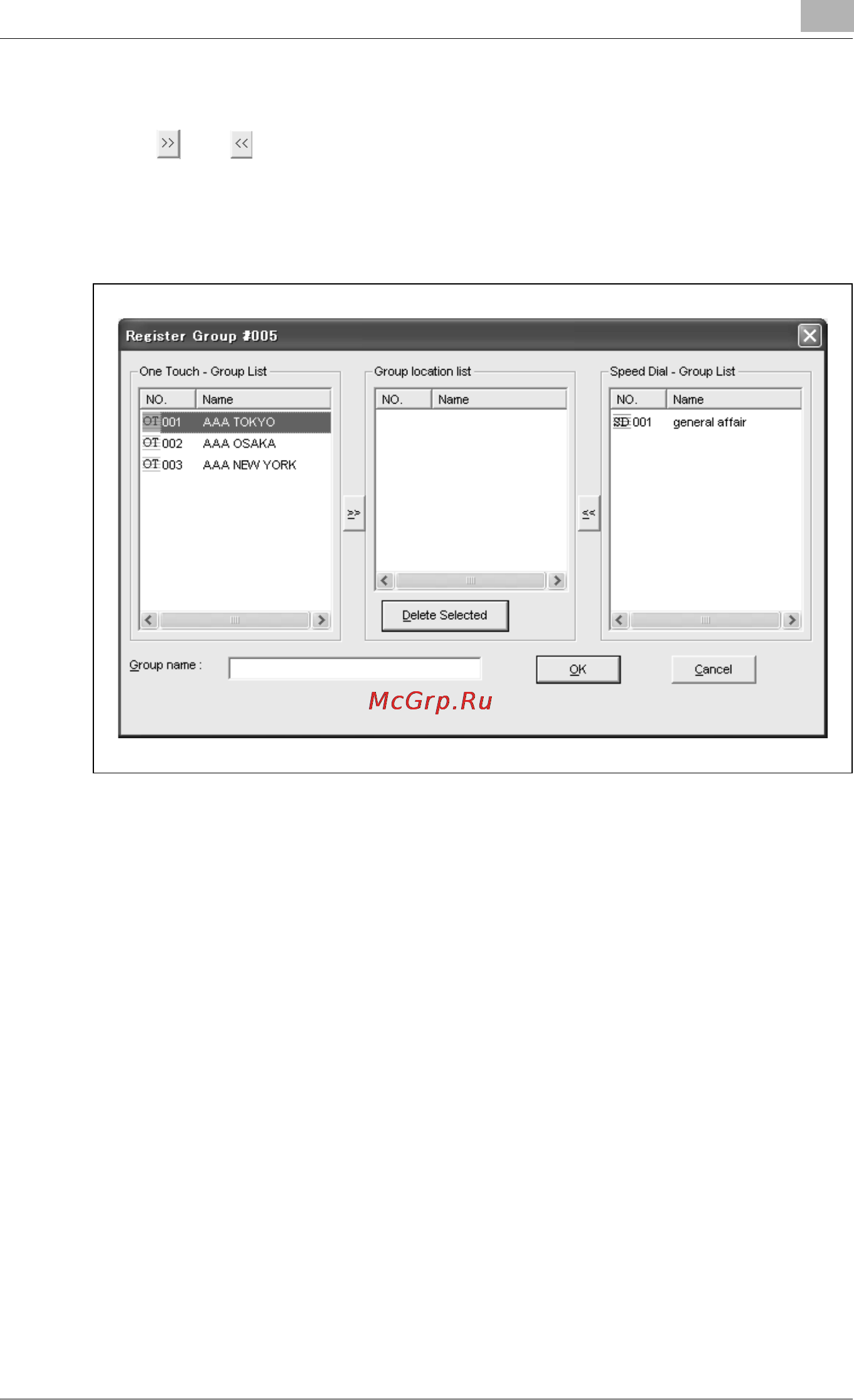

3 In the Register Group dialog box for the selected number, select the

number of a destination to be registered in the group, and then click

or .

– The text entered in the "Name" box appears in the display as the

name of the destination. In addition, this name appears as the

destination when reports are printed.

4 Type in the name of the group.

5 Click the [OK] button.

Programming of the group is finished.
