101
5. Using On-Screen Menu
UsingtheEntryList
Whenanysourceorlensmemoryadjustmentsaremade,theadjustmentsareautomaticallyregisteredintheEntry
List.The(adjustmentvaluesof)registeredsignalscanbeloadedfromtheEntryListwhenevernecessary.
However,onlyupto100patternscanberegisteredintheEntryList.When100patternshavebeenregisteredinthe
EntryList,anerrormessageisthendisplayedandnoadditionalpatternscanberegistered.Youshouldthusdelete
(adjustmentvaluesof)signalsthatarenolongerneeded.

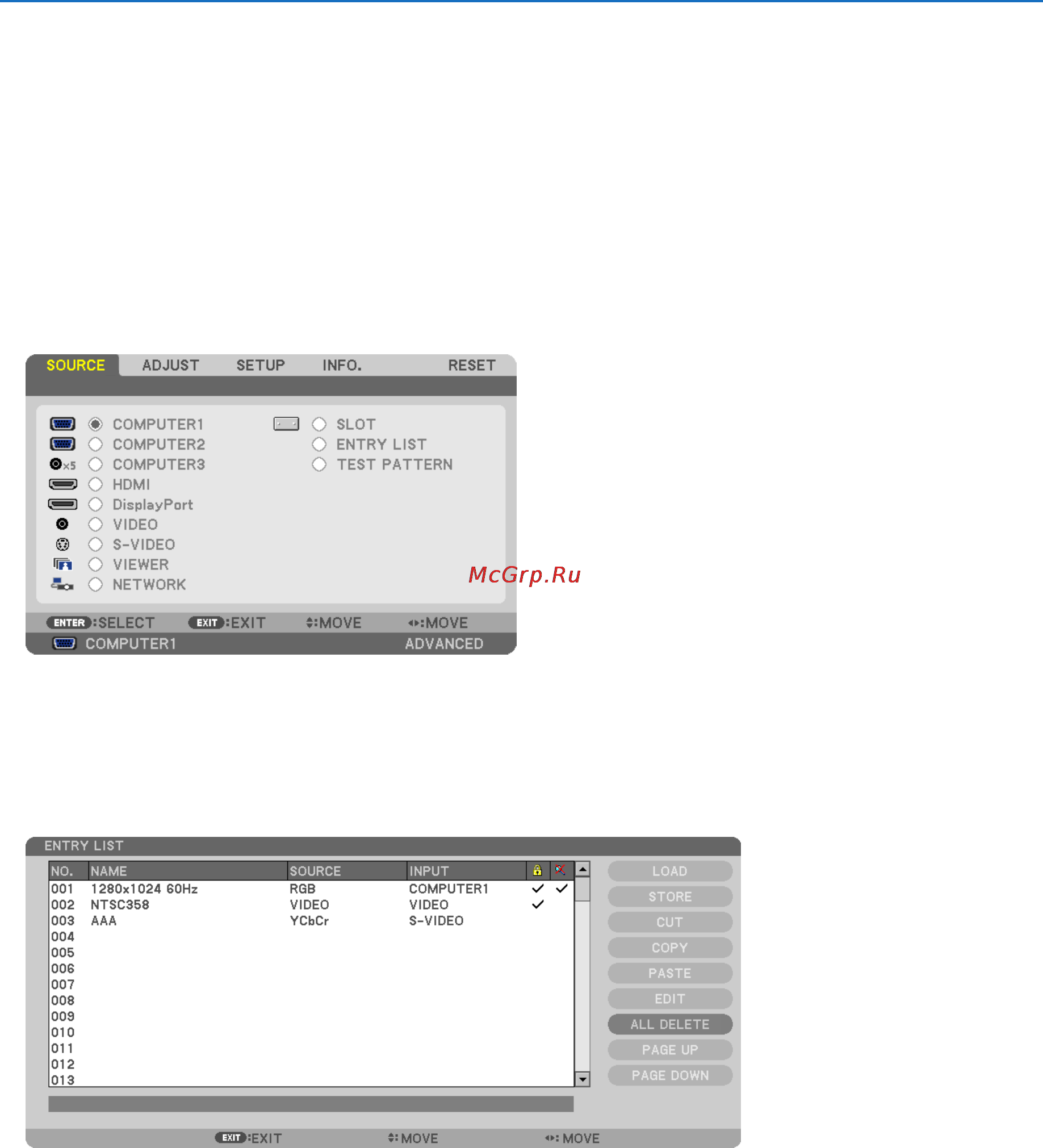

DisplayingtheEntrylist
1. PresstheMENUbutton.
Themenuwillbedisplayed.
2. Pressthe or buttontoselect[SOURCE].
TheSOURCElistwillbedisplayed.
3. Usethe, , , or toselect[ENTRYLIST]andpresstheENTERbutton.
TheENTRYLISTwindowswillbedisplayed.
IftheENTRYLISTwindowisnotdisplayed,switchthemenuto[ADVANCED].
To switch the menu between[ADVANCED] and [BASIC], select [APPLICATION MENU] → [TOOLS] →
[ADMINISTRATORMODE].(→ page 152)
