131

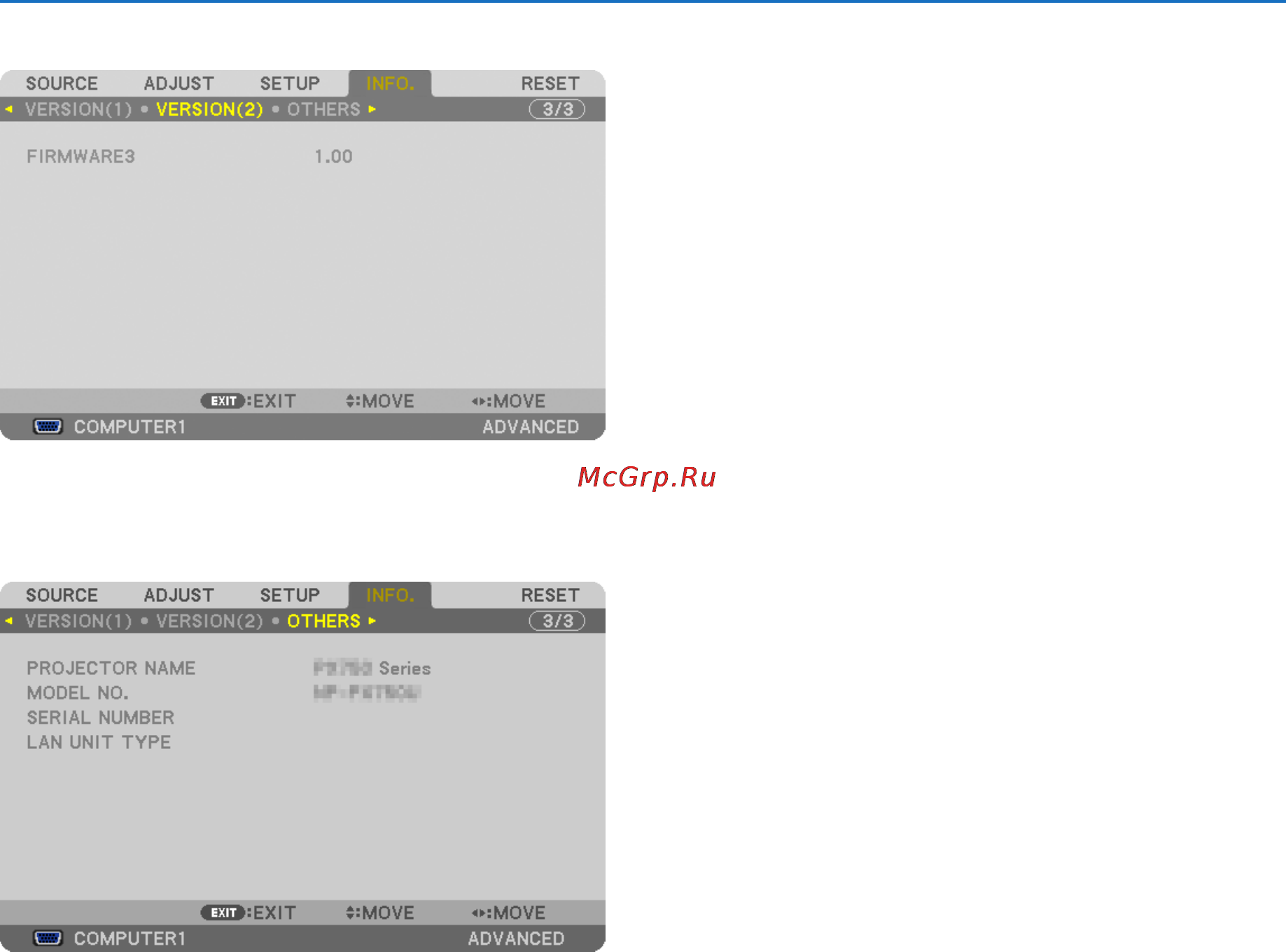

5. Using On-Screen Menu
[VERSION(2)]
FIRMWARE3
[OTHERS]
PROJECTORNAME MODELNO.
SERIALNUMBER LANUNITTYPE
CONTROLID(when[CONTROLID]isset)
