4. Using the Viewer

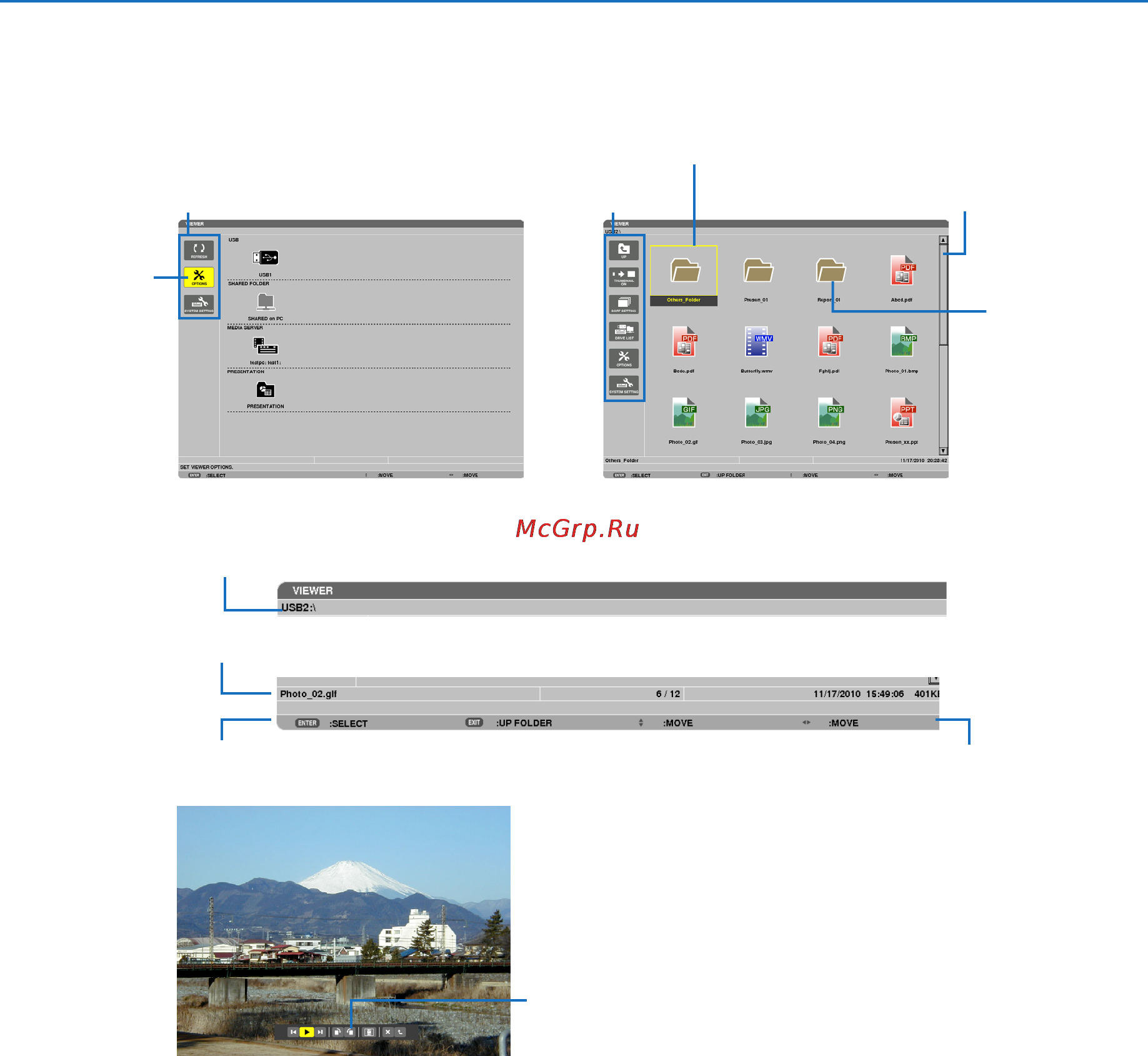

Names and functions of Viewer screen
TheViewerhasthreescreens:Drivelistscreen,Thumbnailscreen,andSlidescreen.
•Drivelistscreen
Displaysalistofdrivesconnectedtotheprojector.
Menu operation
• Usethe▼ or ▲buttontomovethecursorupordown.SelectthemenuitemandpresstheENTERbutton
todisplaythesubmenu.
Operation for Drive list screen
1. Pressthe▶buttontomovethecursortothedrivelist.
(Use the ◀ or ▶buttontoswitchbetweenthemenuandthedrivelist.)
Press the ▼ or ▲buttontoselectatypeofdrive;pressthe◀ or ▶buttontoselectthedriveconnectedtothe
projector.
2. SelectthedriveandpresstheENTERbuttontoswitchtothethumbnailscreenoftheselecteddrive.
Cursor(yellow)
Cursor(yellow)
Menu Menu
Scrollbar
[Drive list screen] [Thumbnailscreen]
Folder icon
Path information
Drive information/File information
Menu guide
Operationbuttonguide
Controlbar
* The operation for still image differs from that for movie.
[Slidescreen]
