129

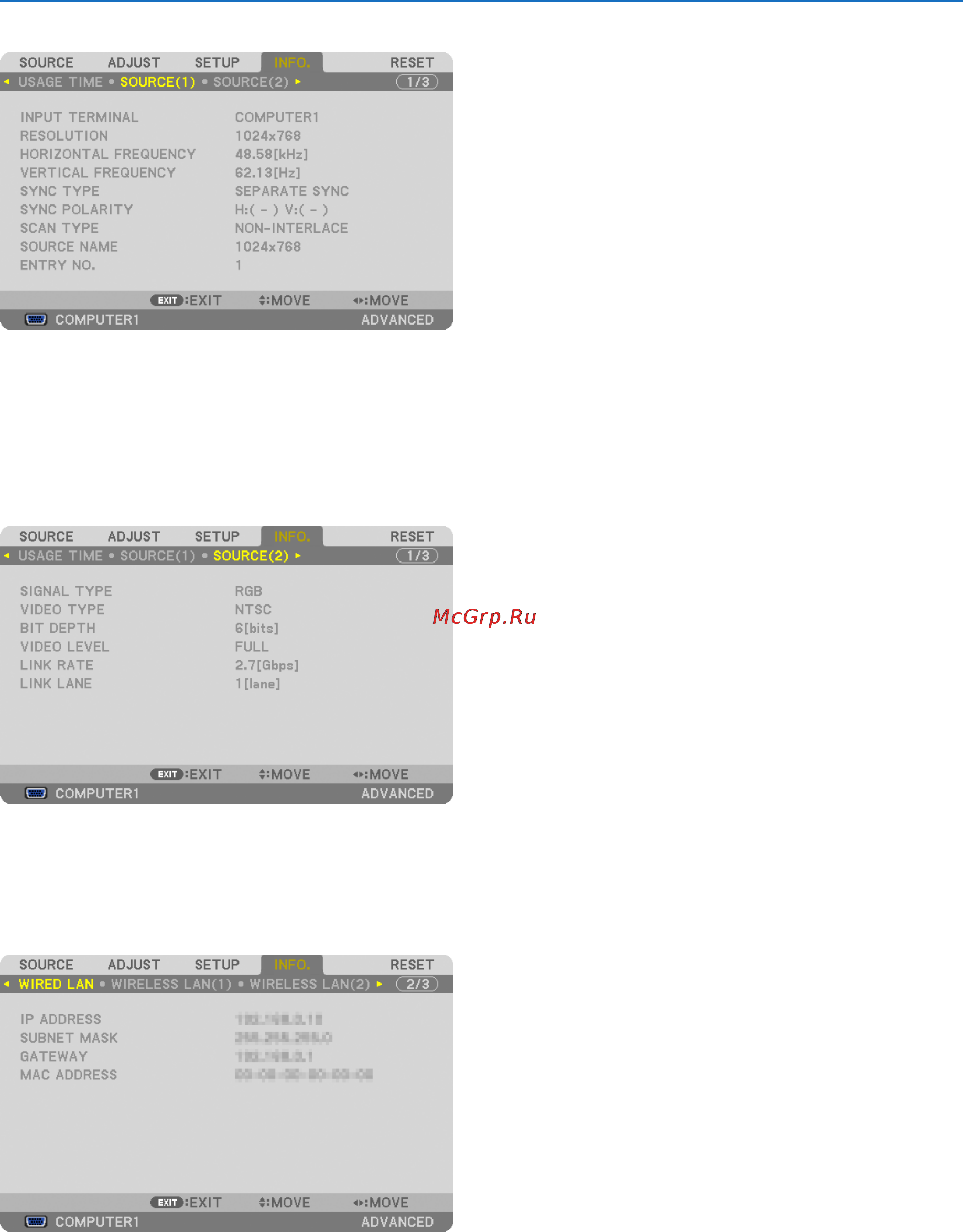

5. Using On-Screen Menu
[SOURCE(1)]
INPUTTERMINAL RESOLUTION
HORIZONTALFREQUENCY VERTICAL FREQUENCY
SYNCTYPE SYNCPOLARITY
SCANTYPE SOURCENAME
ENTRYNO.
[SOURCE(2)]
SIGNALTYPE VIDEOTYPE
BITDEPTH VIDEOLEVEL
LINKRATE LINKLANE
[WIRED LAN]
IPADDRESS SUBNETMASK
GATEWAY MACADDRESS
