142
5. Using On-Screen Menu

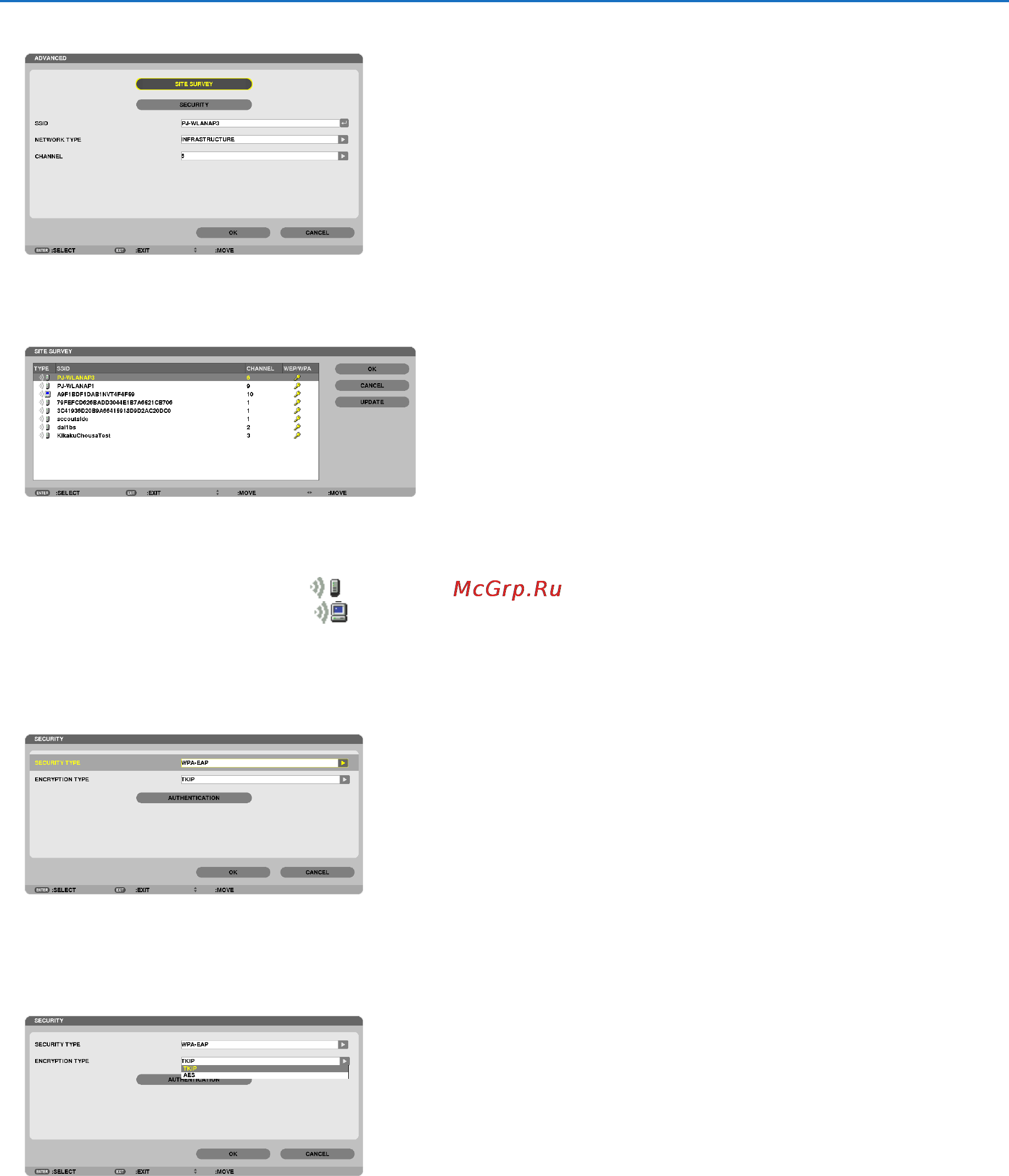

4. Select[SITESURVEY]andpresstheENTERbutton.
The“SSID”listwillbedisplayed.
5. SelectaconnectingSSID,andthenselect[OK].
FinallypresstheENTERbutton.
• SelecttheSSIDforwhichWPA-PSKorWPA2-PSKisset.
• Select[INFRASTRUCTURE( )]for[NETWORKTYPE].WPA-PSK,WPA2-PSK,WPA-EAP,orWPA2-EAPis
notavailablewhen[ADHOC( )] is selected.
6. Selectthe[SECURITY]tab.
The[SECURITY]pagewillbedisplayed.
7. Selectthe[SECURITYTYPE]eldandpresstheENTERbutton.
Thepull-downlistwillbedisplayed.
8. Select[WPA-EAP]or[WPA2-EAP]andpresstheENTERbutton.
9. Selectthe[TKIP/AES]eldandpresstheENTERbutton.
Thepull-downlistwillbedisplayed.
10
.Select[TKIP]or[AES]andpresstheENTERbutton.
Select[TKIP]or[AES]accordingtothesettingforyouraccesspoint.
