195
8. User Supportware

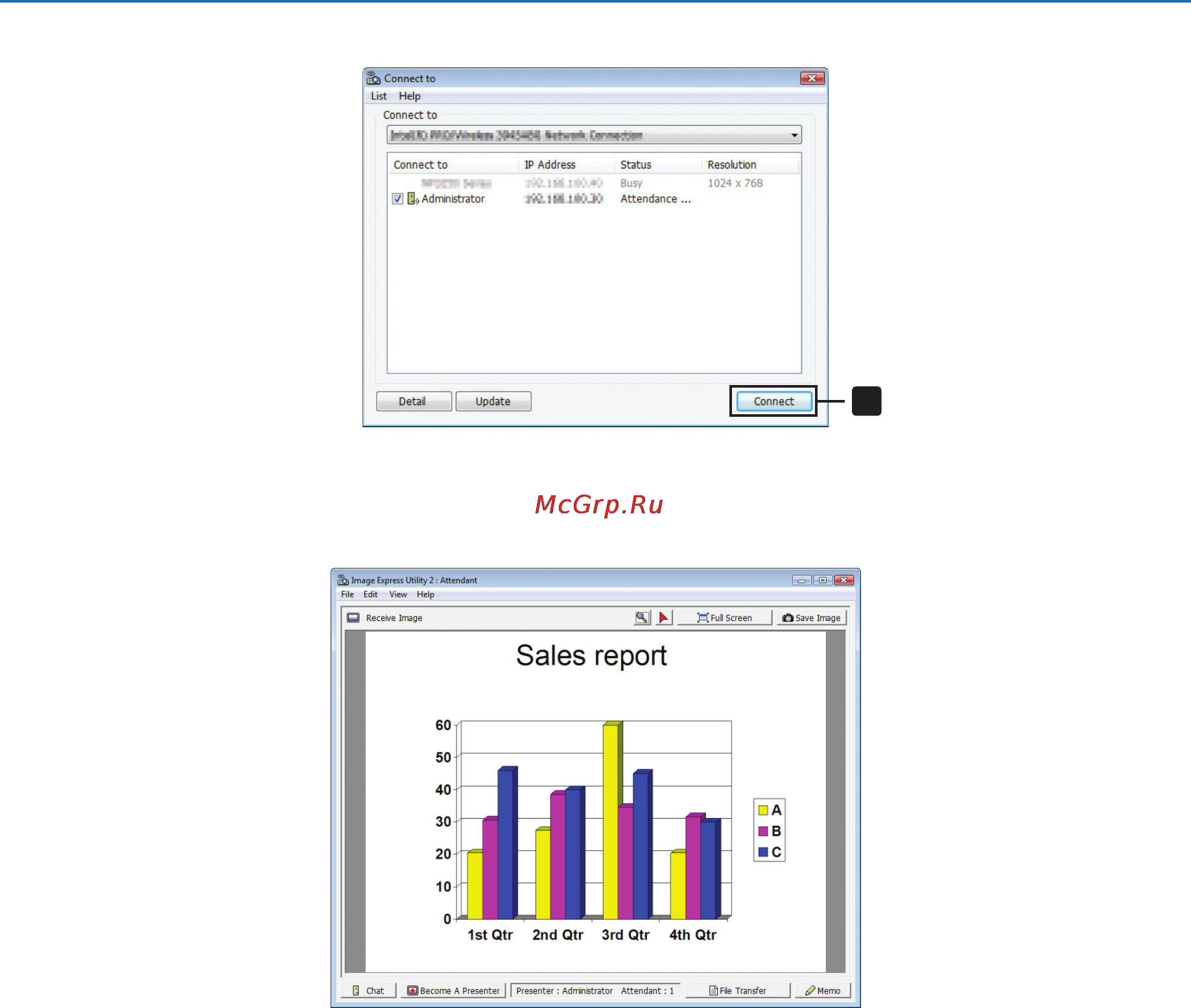

3 ClicktheMeetingNametoparticipate,andclick[Connect].
3
Click
Thecomputerwillbeconnectedtotheselectedconferenceandtheattendantwindowwillbedisplayed.
Ifthepresenterselects“SendtoPCAndProjector”,theimageprojectedfromtheprojectorisdisplayedintheat-
tendant window.
