1. Introduction

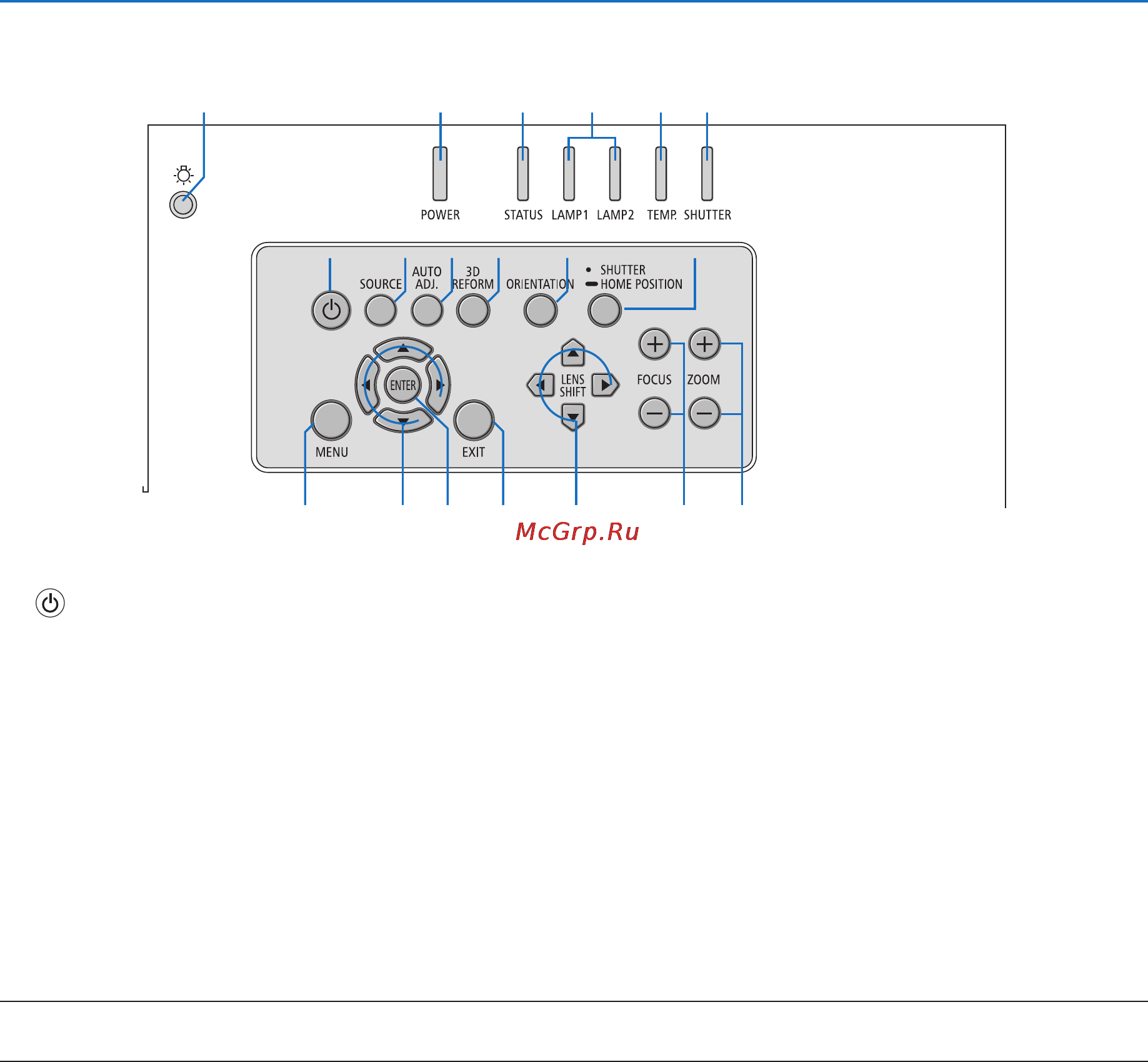

Control Panel/Indicator Section

1. (POWER) Button (→page17, 31)

2. POWER Indicator (→page17, 31, 222)

3. STATUS Indicator (→page222)

4. LAMP 1 and LAMP 2 Indicators (→page179, 223)

5. TEMP.Indicator(→page223)

6. SHUTTER Indicator (→page223)

7. SOURCE Button (→page20)

8. AUTO ADJ. Button (→page30)

9. 3D REFORM Button (→page40)

10.ORIENTATIONButton(→page19)

11.SHUTTER/HOMEPOSITIONButton(→page24, 34)

NOTE: The “home position” for lens shift position is not the center position of the adjustable lens shift range. The home position

should be used for lens installation.

12. MENU Button (→page95)

13.  Buttons (→page95)

14. ENTER Button (→page95)

15.EXITButton(→page95)

16. LENS SHIFT  Buttons (→page24)

17.FOCUS+/−Buttons(→page26)

18.ZOOM+/−Buttons(→page27)

19. Light button

 Illuminatesthecontrolpanelandtheterminalpanel.
