163
6. Installation and Connections

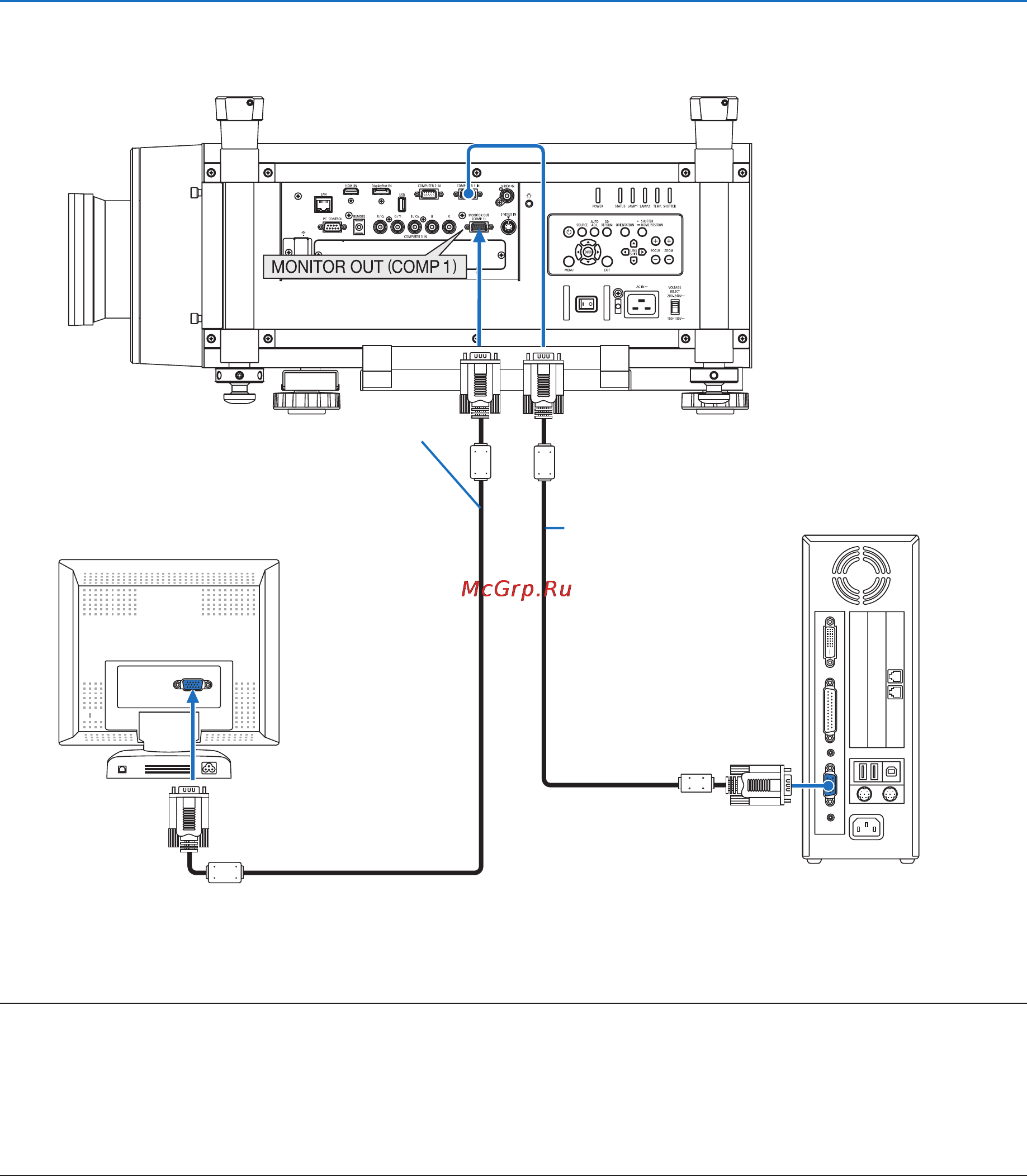

Connecting an External Monitor
Youcanconnectaseparate,externalmonitortoyourprojectortosimultaneouslyviewonamonitorthecomputer
analogimageyou’reprojecting.
NOTE:
• Daisychainconnectionisnotpossible.
• ThesignalonlyfromtheCOMPUTER1INconnectorwillbeoutputtotheMONITOROUT(COMP1)connector.
• When[POWER-SAVING]or[NETWORKSTANDBY]isselectedfor[STANDBYMODE]withintheon-screenmenu,thesignalwill
notbeoutputtotheMONITOROUT(COMP1)connectorinstandby.
• WhenthesignalfromtheCOMPUTER3INconnectorsisprojected,novideosignalwillbeoutputtotheMONITOROUT(COMP1)
connector.
Computercable(VGA)
(supplied)
Computercable(VGA)
(not supplied)
