49
3. Convenient Features

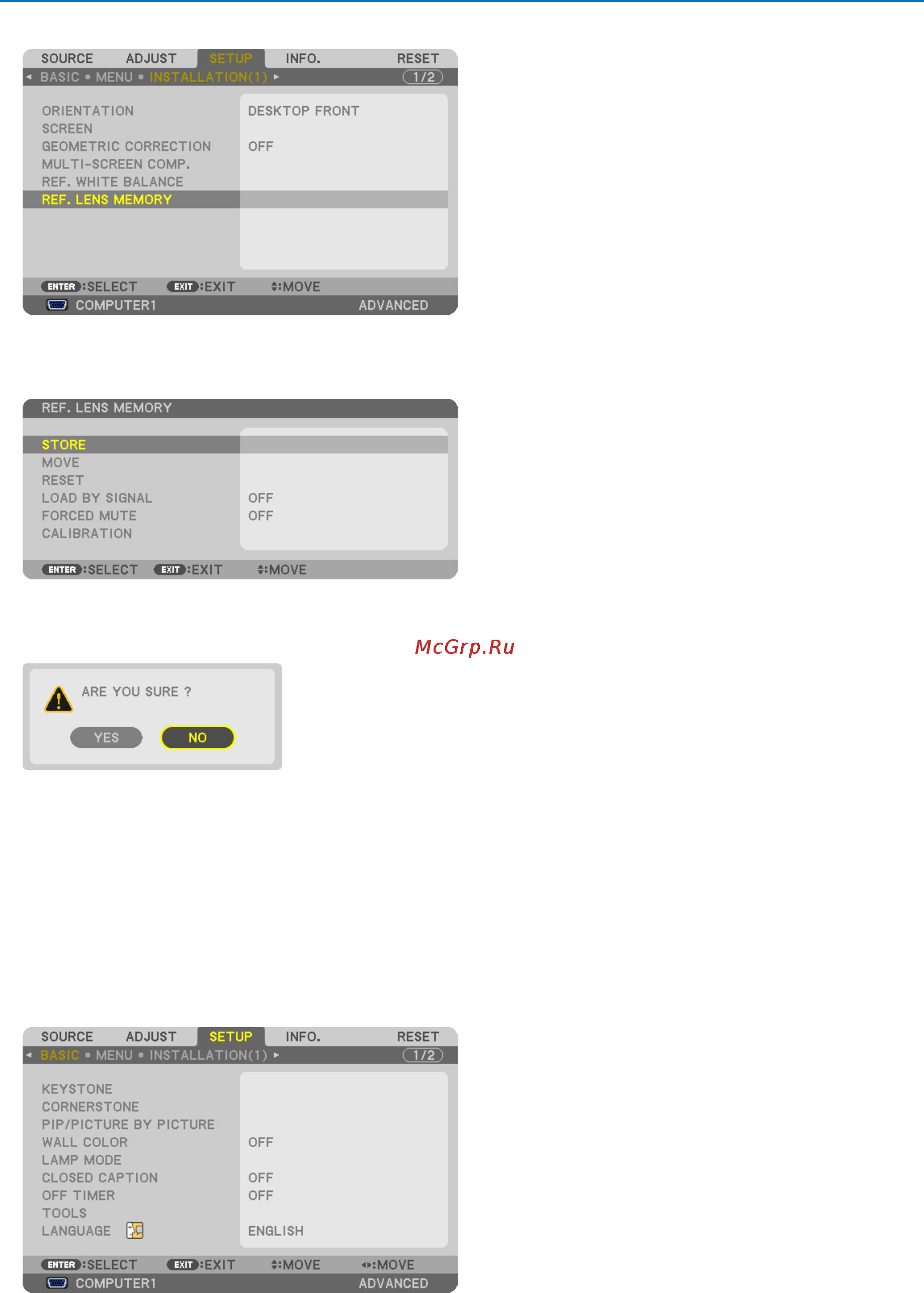

4. Pressthe▼buttontoselect[REF.LENSMEMORY]andpresstheENTERbutton.
The[REF.LENSMEMORY]screenwillbedisplayed.
5. Select[STORE]andpresstheENTERbutton.
Theconrmationscreenwillbedisplayed.
6. Pressthe◀buttontoselectand[YES]andpresstheENTERbutton.
Theadjustedvaluesforlensshift,zoom,andfocushavebeenstoredin[REF.LENSMEMORY].
7. PresstheMENUbutton.
Themenuwillbeclosed.
TIP:
• Tostoreadjustedvaluesforeachinputsource,usetheLensMemoryfunction.
To call up your adjusted values from [REF. LENS MEMORY]:
1. PresstheMENUbutton.
