135
5. Using On-Screen Menu

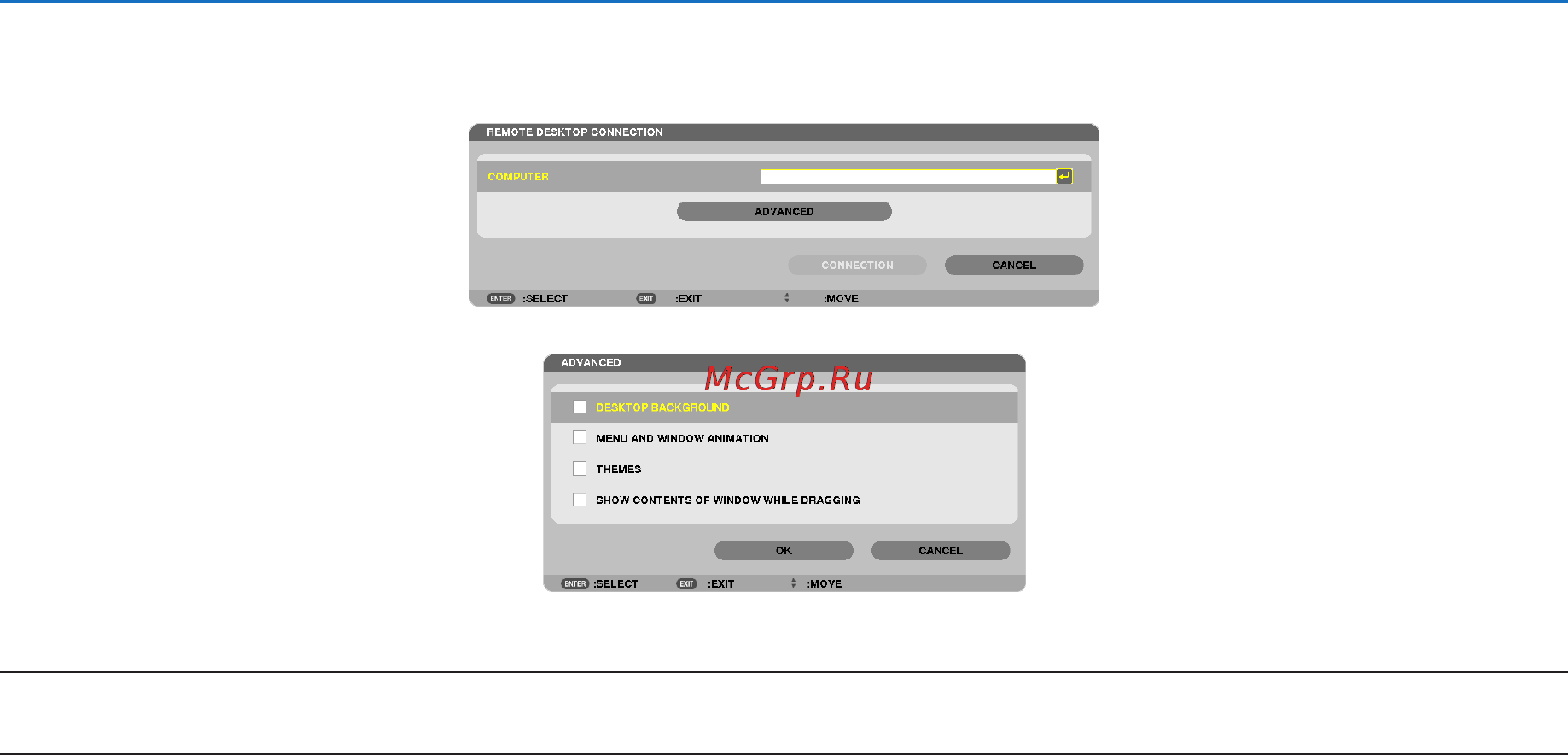

REMOTE DESKTOP CONNECTION
ThisallowsyoutosetupforcomputernameentryandeffectsforRemoteDesktop.
NOTE:
• AUSBkeyboardisrequiredtosetuptheRemoteDesktopConnection.
