203
8. User Supportware
Stopping/RestartingImageTransmission
•Stoppingimagetransmission

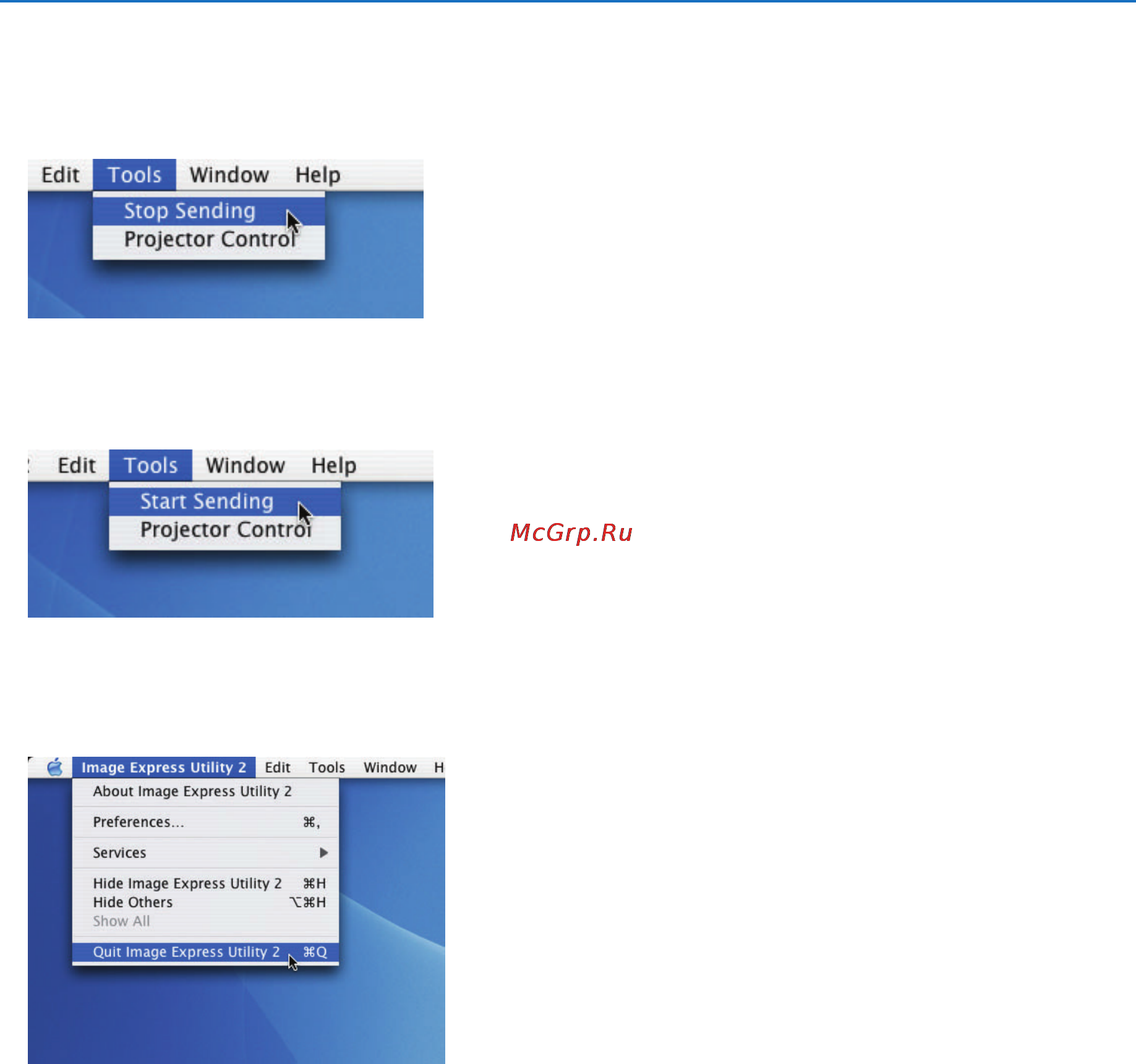

1 Click[Tools]onthemenubar,andclick[StopSending].
Imagetransmissionistemporarilystopped.
•Restartingimagetransmission
1 Click[Tools]onthemenubar,andclick[StartSending].
Imagetransmissionisstartedagain.
ExitingImageExpressUtility2
1 Click[ImageExpressUtility2]onthemenubar,andclick[QuitImageExpressUtility2].
ImageExpressUtility2isexited.
