3. Convenient Features

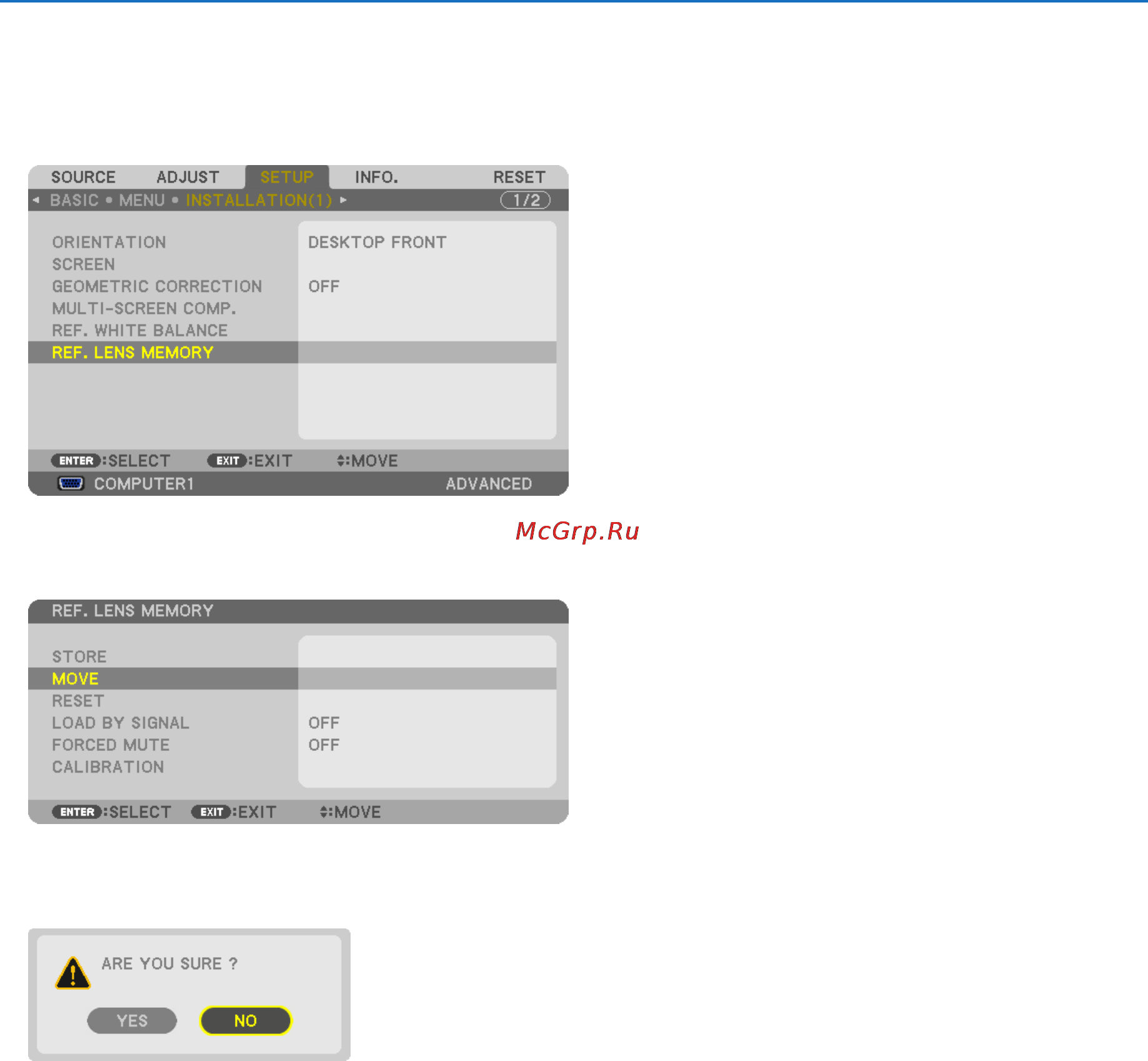

Themenuwillbedisplayed.
2. Pressthe▶buttontoselect[SETUP]andpresstheENTERbutton.
3. Pressthe▶buttontoselect[INSTALLATION(1)].
4. Pressthe▼buttontoselect[REF.LENSMEMORY]andpresstheENTERbutton.
The[REF.LENSMEMORY]screenwillbedisplayed.
5. Select[MOVE]andpresstheENTERbutton.
Theconrmationscreenwillbedisplayed.
6. Pressthe◀buttontoselectand[YES]andpresstheENTERbutton.
Theadjustedvalueswillbeappliedtothecurrentsignal..
7. PresstheMENUbutton.
Themenuwillbeclosed.
