Nec PX700W [21/244] Terminal panel features

1. Introduction

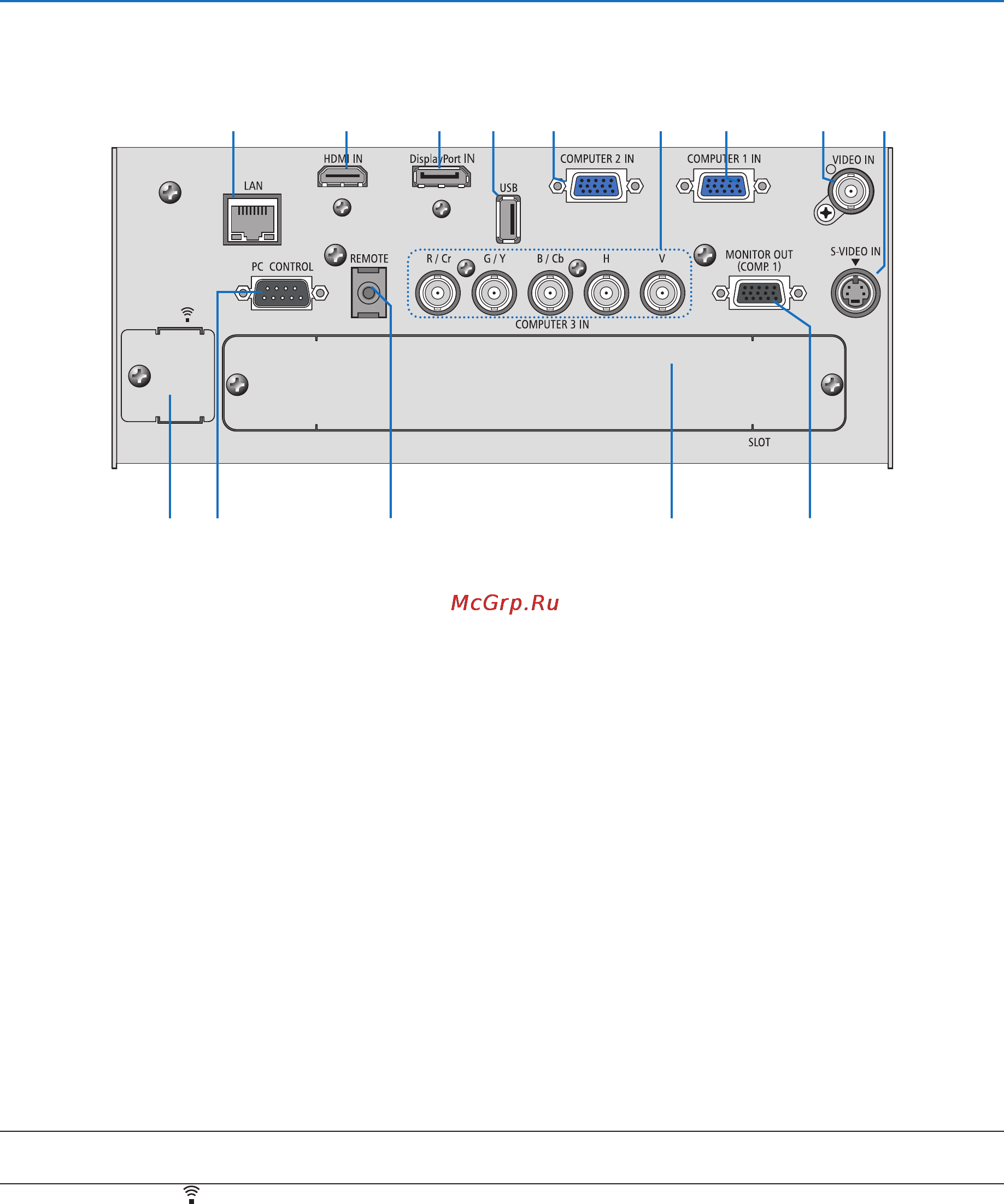

Terminal Panel Features

1. COMPUTER1IN/ComponentInputConnector(MiniD-Sub15Pin)(→ page 13,160,165)

2. COMPUTER2IN/ComponentInputConnector(MiniD-Sub15Pin)(→ page 160,165)

3. COMPUTER3IN/Component(R/Cr,G/Y,B/Cb,H,V)Connectors(BNC×5)(→ page 160,165)

4. HDMIINConnector(TypeA)(→ page 161,162,166)

5. DisplayPortINConnector(DisplayPort20P)(→ page 161)

6. MONITOROUT(COMP1)Connector(MiniD-Sub15Pin)(→ page 163)

7. VIDEOINConnector(BNC)(→ page 164)

8. S-VIDEOINConnector(MiniDIN4Pin)(→ page 164)

9. LANPort(RJ-45)(→ page 167)

10.USBPort(TypeA)(→ page 73)

11.PCCONTROLPort(D-Sub9Pin)(→ page 227)

 UsethisporttoconnectaPCorcontrolsystem.Thisenablesyoutocontroltheprojectorusingserialcommunica-

tionprotocol.Ifyouarewritingyourownprogram,typicalPCcontrolcodesareonpage227.

12. REMOTE Connector (Stereo Mini)

 UsethisconnectorforwiredremotecontroloftheprojectorusingtheNECoptionalremotecontrol.

 Connecttheprojectorandoptionalremotecontrolusingacommerciallyavailablewiredremotecontrolcable.

NOTE:

• ConnectingtheremotecabletotheREMOTEminijackontheterminalpanelwillmakethewirelessoperationunavailable.

13. USB (LAN) Port (for optional Wireless LAN Unit) (→ page 168)

14. Optional Slot (SLOT) (→ page 213)

9 4 5 3 810 2 1 7

13 11 12 14 6
