Asus rog rampage v extreme/u3.1 [116/230] Advanced menu

3-28

Chapter 3: BIOS setup

Chapter 3

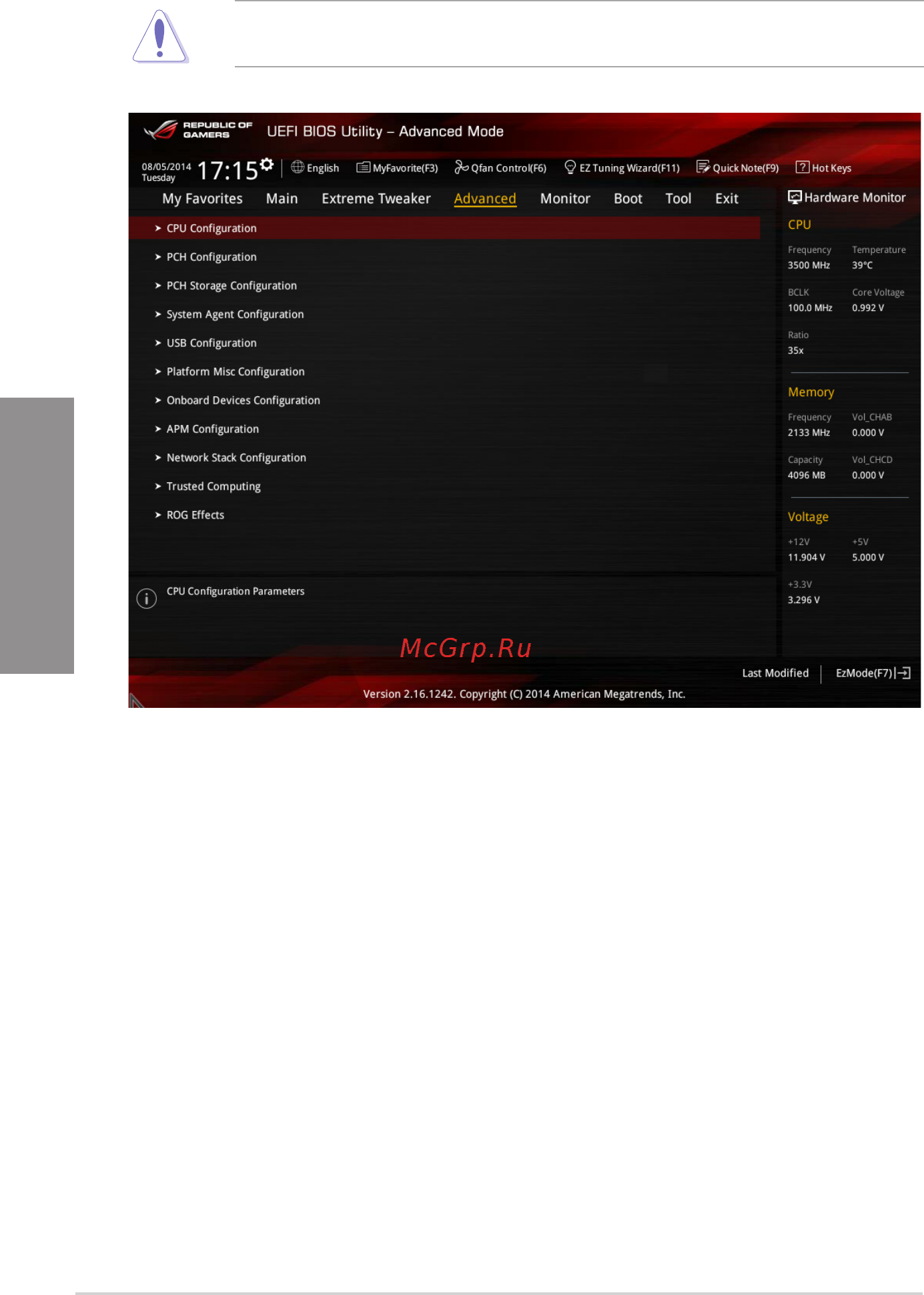

3.6 Advanced menu

The items in Advanced menu allow you to change the settings of the CPU and other system

devices.

Be cautious when changing the settings of the items in Advanced menu. Incorrect eld

values can cause the system to malfunction.
