Asus rog rampage v extreme/u3.1 [196/230] Dts connect

4-46

Chapter 4: Software support

Chapter 4

DTS Connect

DTSConnectdeliversexcellentaudioentertainmentacrossallformatsandworkswith4,5.1,

and7.1channelsurroundsound.ItalsoallowsyoutoconnectyourPCtoahometheatre

system.

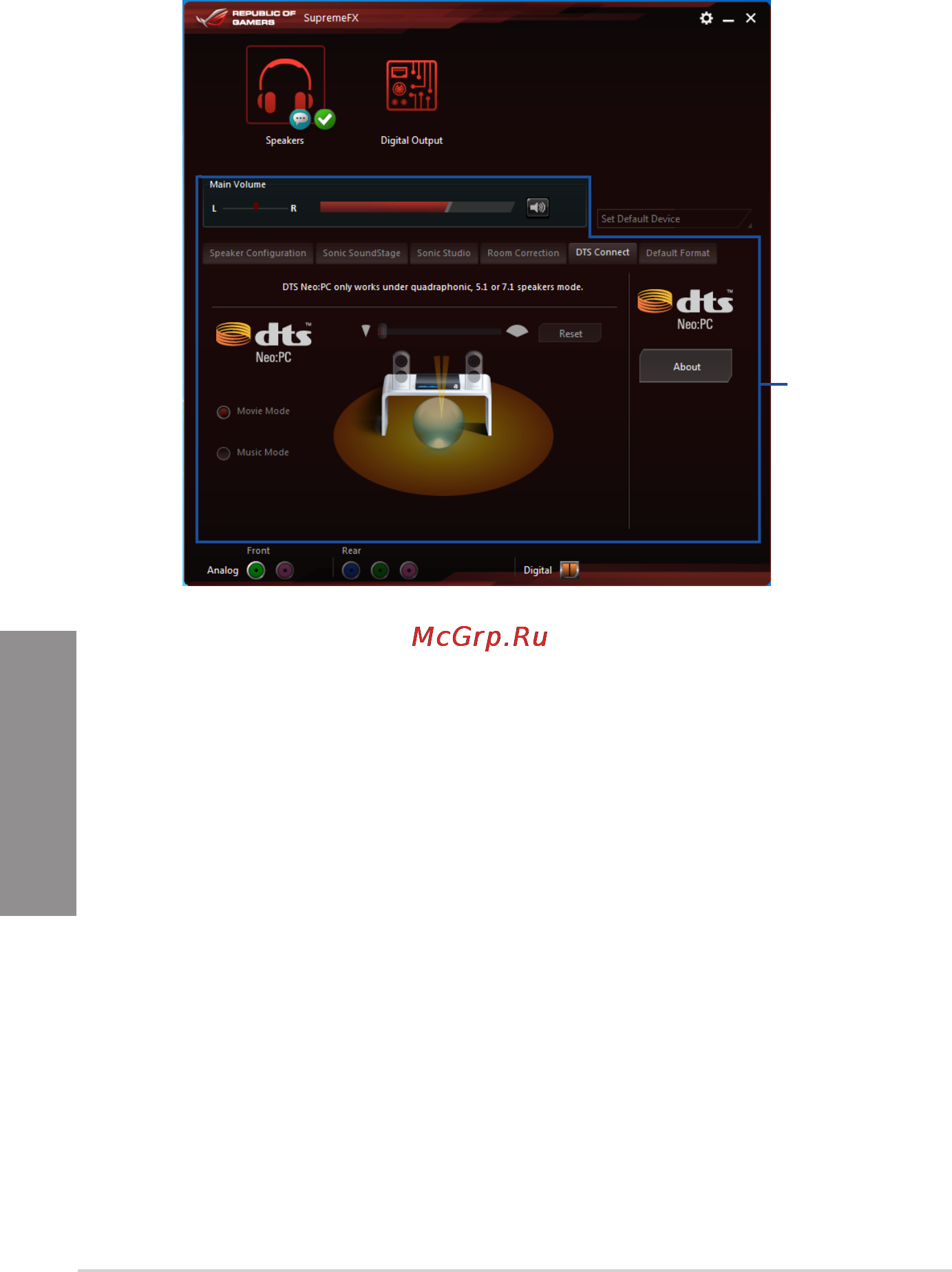

Control settings panel
