Chapter 1

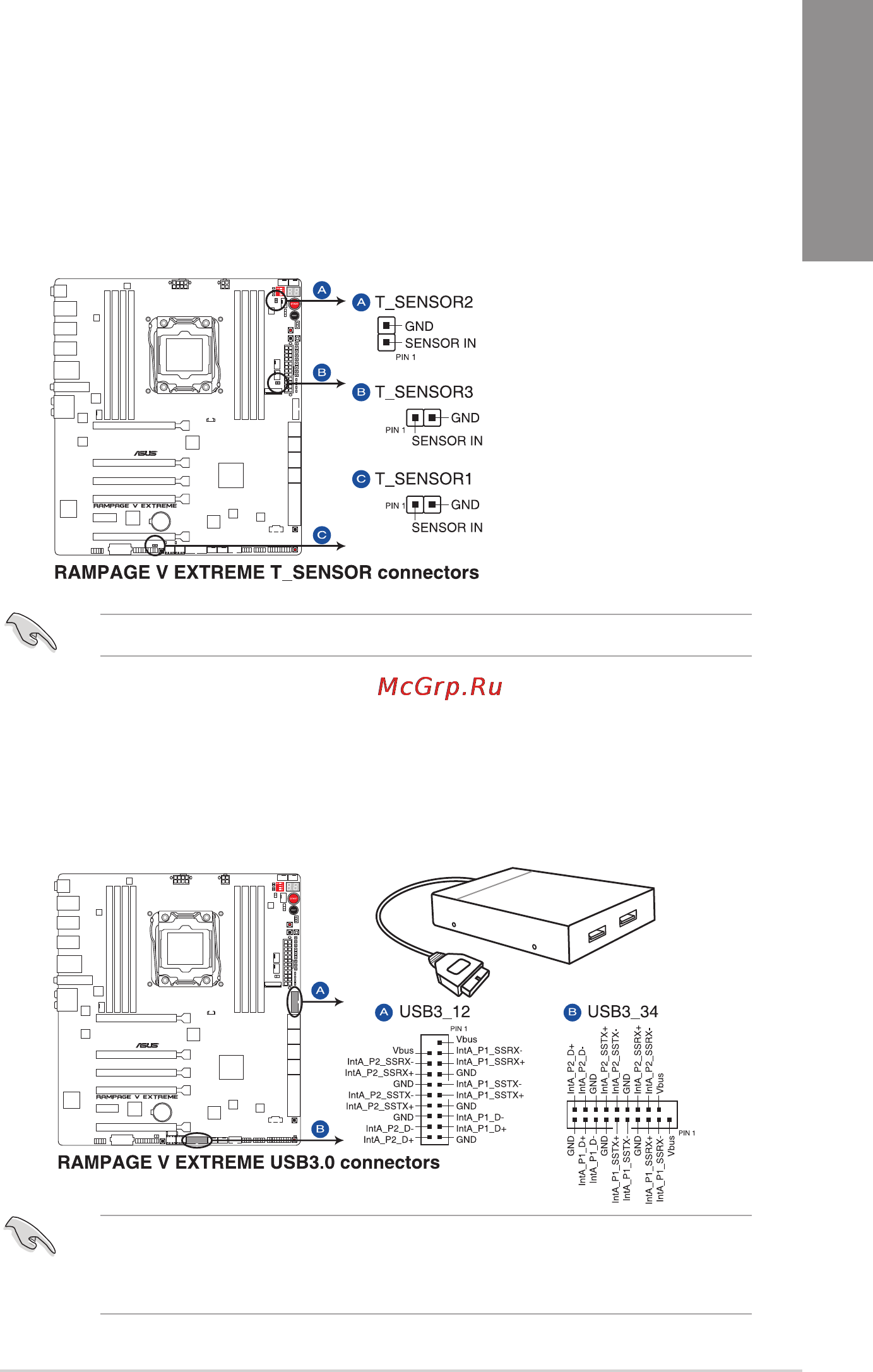

4. Thermal sensor cable connectors (2-pin T_SENSOR1, T_SENSOR2,

T_SENSOR3)

These connectors are for temperature monitoring. Connect the thermal sensor cables

to these connectors and place the other end on the devices that you want to monitor.

The optional fans 1, 2, and 3 can work with the temperature sensors for a more

efcient cooling solution.

To monitor the temperature at the BIOS, go to BIOS>Monitor>Temperature Monitor.

5. USB 3.0 connector (20-1 pin USB3_12, USB3_34)

This connector is for the additional USB 3.0 ports, and complies with the USB 3.0

specication that supports up to 4.8Gbps connection speed. If the USB 3.0 front panel

cable is available in your system chassis, with this USB 3.0 connector, you can have a

front panel USB 3.0 solution.

• The USB 3.0 module is purchased separately.

• These connectors are based on xHCI specication. We recommend you to install the

related driver to fully use the USB 3.0 ports under Windows
